TA12L-HDF (1970)

Toyota Carina

Production Dec 1970 - Sep 1975
Engine 2T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7207)3FC

Click highlighted areas on diagram

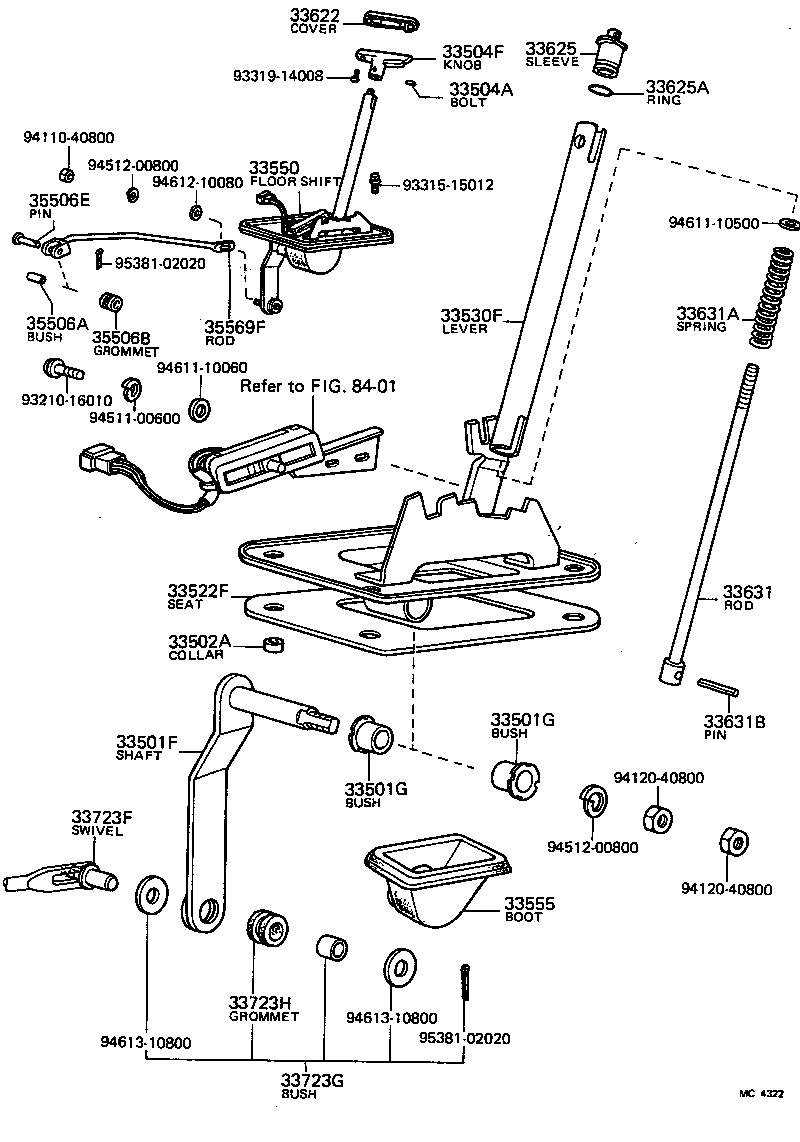

diagram 33501F 33501G 33501G 33502A 33504A 33504F 33522F 33530F 33550 33555 33622 33625 33625A 33631 33631A 33631B 33723F 33723G 33723H 35506A 35506B 35506E 35569F 8401 9321016010 9331515012 9331914008 9411040800 9412040800 9412040800 9451100600 9451200800 9451200800 9461110060 9461110500 9461210080 9461310800 9461310800 9538102020 9538102020
Part # Description Qty Price
33501F - SHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT)
33501-14040

TA12..3FC

 1
33501-14041

TA12..3FC

 1
33501-14010

TA12..3FC

 1
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90385-12044

TA12..3FC

 2
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90385-12044

TA12..3FC

 2
33502A - COLLAR (FOR FLOOR SHIFT SETTING)
90387-06065

TA12,14..3FC

OD=8.8

 4
33504A - BOLT OR PIN (FOR SHIFT LEVER KNOB SETTING)
90113-05034

TA12,14..3FC

 2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-22040

TA12..3FC

 1
33522F - SEAT, SHIFT LEVER PLATE (FOR FLOOR SHIFT)
33522-14010

TA12..3FC

 1
33522-14011

TA12..3FC

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33503-14030

TA12..LHD..3FC

 1
33503-14031

TA12..LHD..3FC

 1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-14021

TA12..LHD..3FC

 1
33550-14024

TA12..LHD..3FC

 1
33550-14025

TA12..LHD..3FC

 1
33550-14023

TA12..LHD..3FC

 1
33550-14020

TA12..LHD..3FC

 1
33555 - BOOT, SHIFT LEVER
33555-14020

TA12..3FC

 1
33622 - COVER, SHIFT LEVER KNOB, NO.1
33622-22021

TA12..3FC

BLACK

 1
33625 - SLEEVE, SHIFT LEVER KNOB
33625-22011

TA12,14..3FC

 1
33625A - RING, O(FOR SHIFT LEVER KNOB SLEEVE)
90301-06083

TA12,14..3FC

 1
33631 - ROD, DETENT
33631-14010

TA12..3FC

 1
33631A - SPRING, COMPRESSION (FOR DETENT ROD)
90501-10337

TA12,14..3FC

WD=1.0,CW=24

 1
33631B - PIN, SLOTTED SPRING (FOR DETENT ROD)
90254-04017

TA12,14..3FC

 1
33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723-22010

TA12,14..3FC

 1
33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90999-99017

TA12,14..3FC

 2
33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT)
90480-17177

TA12,14..3FC

 1
35506A - BUSH (FOR MANUAL VALVE LEVER SHAFT)
90999-99017

TA12,14..3FC

 1
35506B - GROMMET (FOR MANUAL VALVE LEVER SHAFT)
90480-17177

TA12,14..3FC

 1
35506E - PIN, W/HOLE (FOR MANUAL VALVE LEVER)
90240-08120

TA12..3FC

 1
35569F - ROD, TRANSMISSION CONTROL, 1ST (FOR FLOOR SHIFT)
33675-14021

TA12..3FC

 1
33608-14010

TA12..3FC

 1
33675-14020

TA12..3FC

 1
Common parts
93210-16010
93315-15012
93319-14008
94110-40800
94120-40800
94511-00600
94512-00800
94611-10060
94611-10500
94612-10080
94613-10800
95381-02020
Linked diagrams
8401

(7308-7509)3FC

Click highlighted areas on diagram

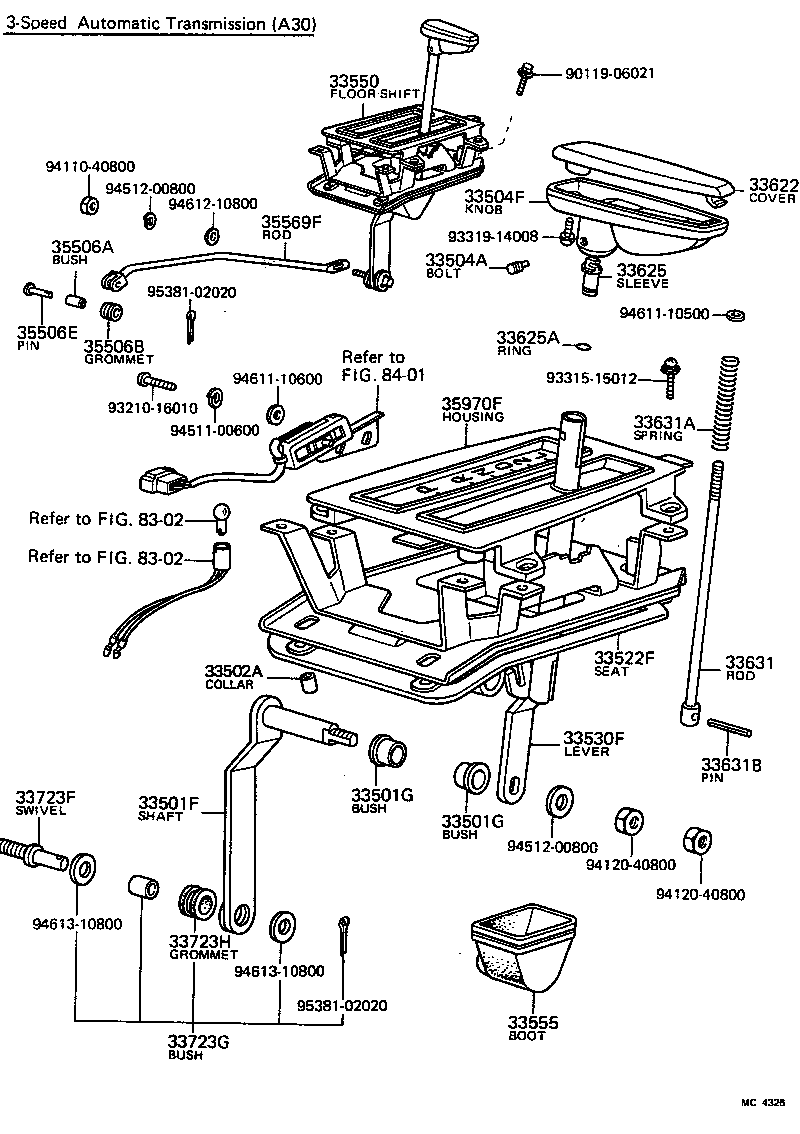

diagram 33501F 33501G 33501G 33502A 33504A 33504F 33522F 33530F 33550 33555 33622 33625 33625A 33631 33631A 33631B 33723F 33723G 33723H 35506A 35506B 35569F 35970F 8302 8302 9011906021 9331515012 9331914008 9411040800 9412040800 9412040800 9451200800 9451200800 9461110500 9461210800 9461310800 9461310800 9461310800 9461310800 9538102020 9538102020
Part # Description Qty Price
33501F - SHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT)
33501-14040

TA12..3FC

 1
33501-14041

TA12..3FC

 1
33501-14010

TA12..3FC

 1
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90385-12044

TA12..3FC

 2
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90385-12044

TA12..3FC

 2
33502A - COLLAR (FOR FLOOR SHIFT SETTING)
90387-06065

TA12,14..3FC

OD=8.8

 4
33504A - BOLT OR PIN (FOR SHIFT LEVER KNOB SETTING)
90113-05034

TA12,14..3FC

 2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-22040

TA12..3FC

 1
33522F - SEAT, SHIFT LEVER PLATE (FOR FLOOR SHIFT)
33522-14010

TA12..3FC

 1
33522-14011

TA12..3FC

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33503-14030

TA12..LHD..3FC

 1
33503-14031

TA12..LHD..3FC

 1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-14021

TA12..LHD..3FC

 1
33550-14024

TA12..LHD..3FC

 1
33550-14025

TA12..LHD..3FC

 1
33550-14023

TA12..LHD..3FC

 1
33550-14020

TA12..LHD..3FC

 1
33555 - BOOT, SHIFT LEVER
33555-14020

TA12..3FC

 1
33622 - COVER, SHIFT LEVER KNOB, NO.1
33622-22021

TA12..3FC

BLACK

 1
33625 - SLEEVE, SHIFT LEVER KNOB
33625-22011

TA12,14..3FC

 1
33625A - RING, O(FOR SHIFT LEVER KNOB SLEEVE)
90301-06083

TA12,14..3FC

 1
33631 - ROD, DETENT
33631-14010

TA12..3FC

 1
33631A - SPRING, COMPRESSION (FOR DETENT ROD)
90501-10337

TA12,14..3FC

WD=1.0,CW=24

 1
33631B - PIN, SLOTTED SPRING (FOR DETENT ROD)
90254-04017

TA12,14..3FC

 1
33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723-22010

TA12,14..3FC

 1
33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90999-99017

TA12,14..3FC

 2
33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT)
90480-17177

TA12,14..3FC

 1
35506A - BUSH (FOR MANUAL VALVE LEVER SHAFT)
90999-99017

TA12,14..3FC

 1
35506B - GROMMET (FOR MANUAL VALVE LEVER SHAFT)
90480-17177

TA12,14..3FC

 1
35569F - ROD, TRANSMISSION CONTROL, 1ST (FOR FLOOR SHIFT)
33675-14021

TA12..3FC

 1
33608-14010

TA12..3FC

 1
33675-14020

TA12..3FC

 1
35970F - HOUSING ASSY, POSITION INDICATOR
35907-14030

TA12..LHD..3FC

 1
35907-14031

TA12..LHD..3FC

 1
Common parts
90119-06021
93315-15012
93319-14008
94110-40800
94120-40800
94512-00800
94611-10500
94612-10800
94613-10800
95381-02020
Linked diagrams
8302

(7208-7308)3FC

Click highlighted areas on diagram

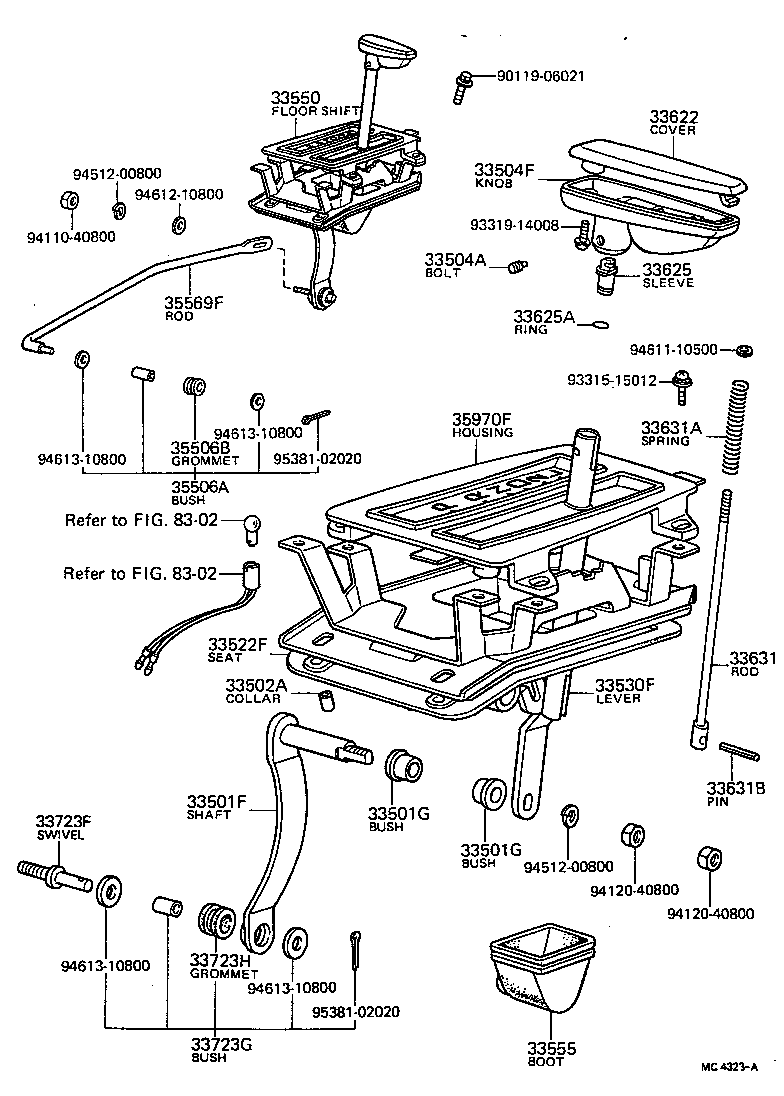

diagram 33501F 33501G 33501G 33502A 33504A 33504F 33522F 33530F 33550 33555 33622 33625 33625A 33631 33631A 33631B 33723F 33723G 33723H 35506A 35506B 35506E 35569F 35970F 8302 8302 8401 9011906021 9321016010 9331515012 9331914008 9411040800 9412040800 9412040800 9451100600 9451200800 9451200800 9461110500 9461110600 9461210800 9461310800 9461310800 9538102020 9538102020
Part # Description Qty Price
33501F - SHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT)
33501-14040

TA12..3FC

 1
33501-14041

TA12..3FC

 1
33501-14010

TA12..3FC

 1
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90385-12044

TA12..3FC

 2
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90385-12044

TA12..3FC

 2
33502A - COLLAR (FOR FLOOR SHIFT SETTING)
90387-06065

TA12,14..3FC

OD=8.8

 4
33504A - BOLT OR PIN (FOR SHIFT LEVER KNOB SETTING)
90113-05034

TA12,14..3FC

 2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-22040

TA12..3FC

 1
33522F - SEAT, SHIFT LEVER PLATE (FOR FLOOR SHIFT)
33522-14010

TA12..3FC

 1
33522-14011

TA12..3FC

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33503-14030

TA12..LHD..3FC

 1
33503-14031

TA12..LHD..3FC

 1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-14021

TA12..LHD..3FC

 1
33550-14024

TA12..LHD..3FC

 1
33550-14025

TA12..LHD..3FC

 1
33550-14023

TA12..LHD..3FC

 1
33550-14020

TA12..LHD..3FC

 1
33555 - BOOT, SHIFT LEVER
33555-14020

TA12..3FC

 1
33622 - COVER, SHIFT LEVER KNOB, NO.1
33622-22021

TA12..3FC

BLACK

 1
33625 - SLEEVE, SHIFT LEVER KNOB
33625-22011

TA12,14..3FC

 1
33625A - RING, O(FOR SHIFT LEVER KNOB SLEEVE)
90301-06083

TA12,14..3FC

 1
33631 - ROD, DETENT
33631-14010

TA12..3FC

 1
33631A - SPRING, COMPRESSION (FOR DETENT ROD)
90501-10337

TA12,14..3FC

WD=1.0,CW=24

 1
33631B - PIN, SLOTTED SPRING (FOR DETENT ROD)
90254-04017

TA12,14..3FC

 1
33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723-22010

TA12,14..3FC

 1
33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90999-99017

TA12,14..3FC

 2
33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT)
90480-17177

TA12,14..3FC

 1
35506A - BUSH (FOR MANUAL VALVE LEVER SHAFT)
90999-99017

TA12,14..3FC

 1
35506B - GROMMET (FOR MANUAL VALVE LEVER SHAFT)
90480-17177

TA12,14..3FC

 1
35506E - PIN, W/HOLE (FOR MANUAL VALVE LEVER)
90240-08120

TA12..3FC

 1
35569F - ROD, TRANSMISSION CONTROL, 1ST (FOR FLOOR SHIFT)
33675-14021

TA12..3FC

 1
33608-14010

TA12..3FC

 1
33675-14020

TA12..3FC

 1
35970F - HOUSING ASSY, POSITION INDICATOR
35907-14030

TA12..LHD..3FC

 1
35907-14031

TA12..LHD..3FC

 1
Common parts
90119-06021
93210-16010
93315-15012
93319-14008
94110-40800
94120-40800
94511-00600
94512-00800
94611-10500
94611-10600
94612-10800
94613-10800
95381-02020
Linked diagrams
8302
8401
