Toyota Carina TA12 HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

Manufacturers Home
Toyota
EU
CARINA
TA12L-H (1970)
8712 - HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

TA12L-H (1970)

Toyota Carina

Production Dec 1970 - Sep 1975

Engine 2T

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(7012-7509)

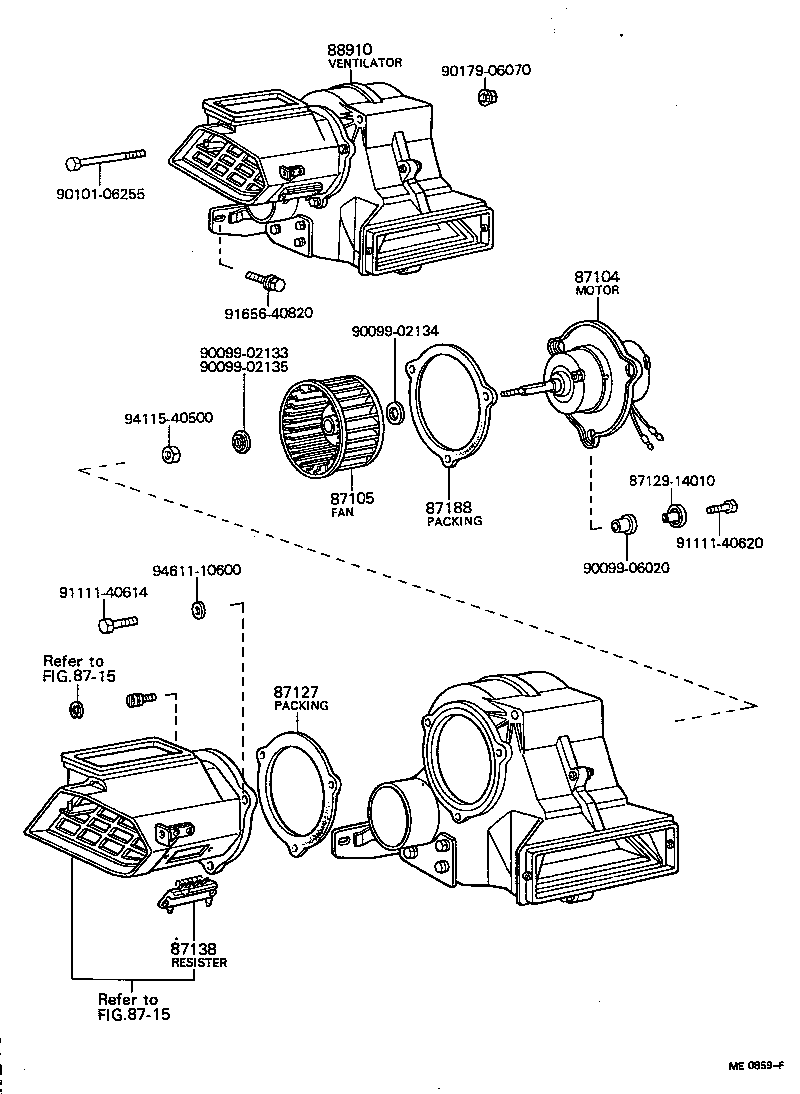

Click highlighted areas on diagram

Part #	Description	Period	Qty
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-22020	TA1#..LHD W/BOOST VENTILATOR OR COOLER	12/1970 - 07/1972	1
87104-14020	TA1#..LHD	12/1970 - 07/1972	1
87104-22050	TA1#..LHD HEAVY DUTY HT.OR BOOST VENT.	09/1974 - 09/1975	1
87104-20070	TA1#..LHD W/BOOST VENTILATOR OR COOLER	08/1972 - 08/1974	1
87104-14021	TA1#..LHD	08/1972 - 09/1975	1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-22020	TA1#..LHD	12/1970 - 09/1975	1
87127 - PACKING, HEATER AIR DAMPER
87127-22010	TA1#	12/1970 - 09/1975	1
87138 - RESISTOR, HEATER BLOWER
87138-14010	TA1#	08/1972 - 09/1975	1
87138-22010	TA1#	12/1970 - 07/1972	1
87188 - PACKING, HEATER BLOWER MOTOR
87128-22010	TA1#	12/1970 - 09/1975	1
88910 - VENTILATOR ASSY, BOOST
88910-20020	TA1#..LHD	12/1970 - 07/1972	1
88910-14031	TA1#..LHD W/COOLER	08/1972 - 09/1975	1
88910-14011	TA1#..LHD	08/1972 - 09/1975	1
Common parts
87129-14010
90099-02133
90099-02134
90099-02135
90099-06020
90101-06255
90179-06070
91111-40614
91111-40620
91656-40820
94115-40500
94611-10600
Linked diagrams
8715

(7012-7509)LHD

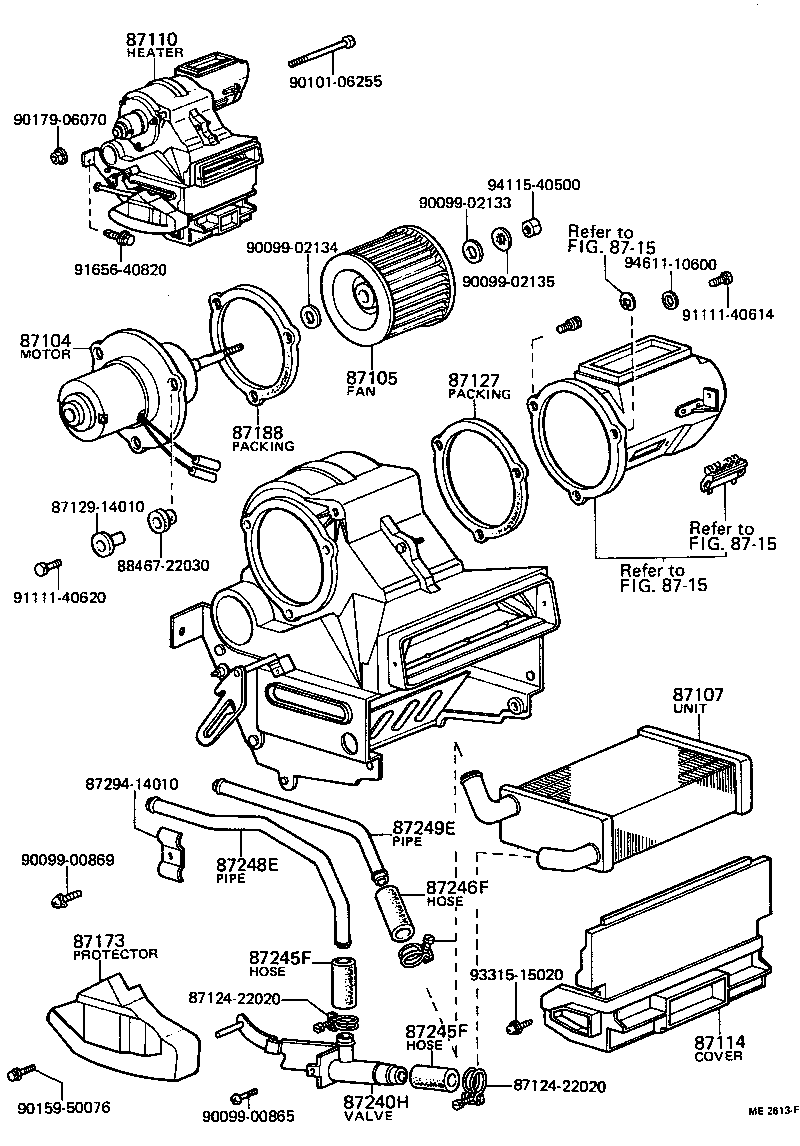

Click highlighted areas on diagram

Part #	Description	Period	Qty
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-22020	TA1#..LHD W/BOOST VENTILATOR OR COOLER	12/1970 - 07/1972	1
87104-14020	TA1#..LHD	12/1970 - 07/1972	1
87104-22050	TA1#..LHD HEAVY DUTY HT.OR BOOST VENT.	09/1974 - 09/1975	1
87104-20070	TA1#..LHD W/BOOST VENTILATOR OR COOLER	08/1972 - 08/1974	1
87104-14021	TA1#..LHD	08/1972 - 09/1975	1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-22020	TA1#..LHD	12/1970 - 09/1975	1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-14040	TA1# HEAVY DUTY HEATER	09/1974 - 09/1975	1
87107-14010	TA1#	12/1970 - 09/1975	1
87110 - HEATER ASSY
87110-14031	TA1#..LHD	08/1971 - 12/1971	1
87110-14030	TA1#..LHD	12/1970 - 08/1971	1
87110-14032	TA1#..LHD	12/1971 - 05/1972	1
87110-14034	TA1#..LHD	08/1972 - 08/1973	1
87110-14043	TA1#..LHD W/COOLER	05/1972 - 07/1972	1
87110-14044	TA1#..LHD W/COOLER	08/1972 - 08/1973	1
87110-14042	TA1#..LHD W/COOLER	12/1971 - 05/1972	1
87110-14033	TA1#..LHD	05/1972 - 07/1972	1
87110-14046	TA1#..LHD HEAVY DUTY HEATER,W/COOLER	09/1974 - 09/1975	1
87110-14035	TA1#..LHD	08/1973 - 09/1975	1
87110-14045	TA1#..LHD W/COOLER	08/1973 - 09/1974	1
87110-14100	TA1#..LHD HEAVY DUTY HEATER	09/1974 - 09/1975	1
87114 - COVER, HEATER
87114-14010	TA1#	12/1970 - 09/1975	1
87114-14020	TA1# FOR REAR DUCT	01/1974 - 09/1975	1
87127 - PACKING, HEATER AIR DAMPER
87127-22010	TA1#	12/1970 - 09/1975	1
87173 - PROTECTOR, WATER VALVE, HEATER
87173-14010	TA1#	05/1972 - 08/1973	1
87115-14010	TA1#	12/1970 - 05/1972	1
87173-14020	TA1#..LHD	08/1973 - 09/1975	1
87188 - PACKING, HEATER BLOWER MOTOR
87128-22010	TA1#	12/1970 - 09/1975	1
87240H - VALVE ASSY, WATER UNIT
87240-14010	TA1#	12/1970 - 09/1971	1
87240-14022	TA1#..LHD	08/1973 - 09/1975	1
87240-14020	TA1#..LHD	09/1971 - 02/1972	1
87240-14021	TA1#..LHD	02/1972 - 08/1973	1
87245F - HOSE, HEATER WATER, INLET F
99552-30055	TA1# L=55	12/1970 - 09/1975	2
87245F - HOSE, HEATER WATER, INLET F
99552-30055	TA1# L=55	12/1970 - 09/1975	2
87246F - HOSE, HEATER WATER, OUTLET F
99552-30035	TA1#..LHD *H,L=35	08/1973 - 09/1975	1
87248E - PIPE, HEATER WATER INLET, E
87156-14010	TA1#..LHD	08/1973 - 09/1975	1
87249E - PIPE, HEATER WATER OUTLET, E (FOR HEATER UNIT)
87157-14010	TA1#..LHD	08/1973 - 09/1975	1
Common parts
87124-22020
87129-14010
87294-14010
88467-22030
90099-00865
90099-00869
90099-02133
90099-02134
90099-02135
90101-06255
90159-50076
90179-06070
91111-40614
91111-40620
91656-40820
93315-15020
94115-40500
94611-10600
