TA12-KF (1970)

Toyota Carina

Production Dec 1970 - Sep 1975
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7707)

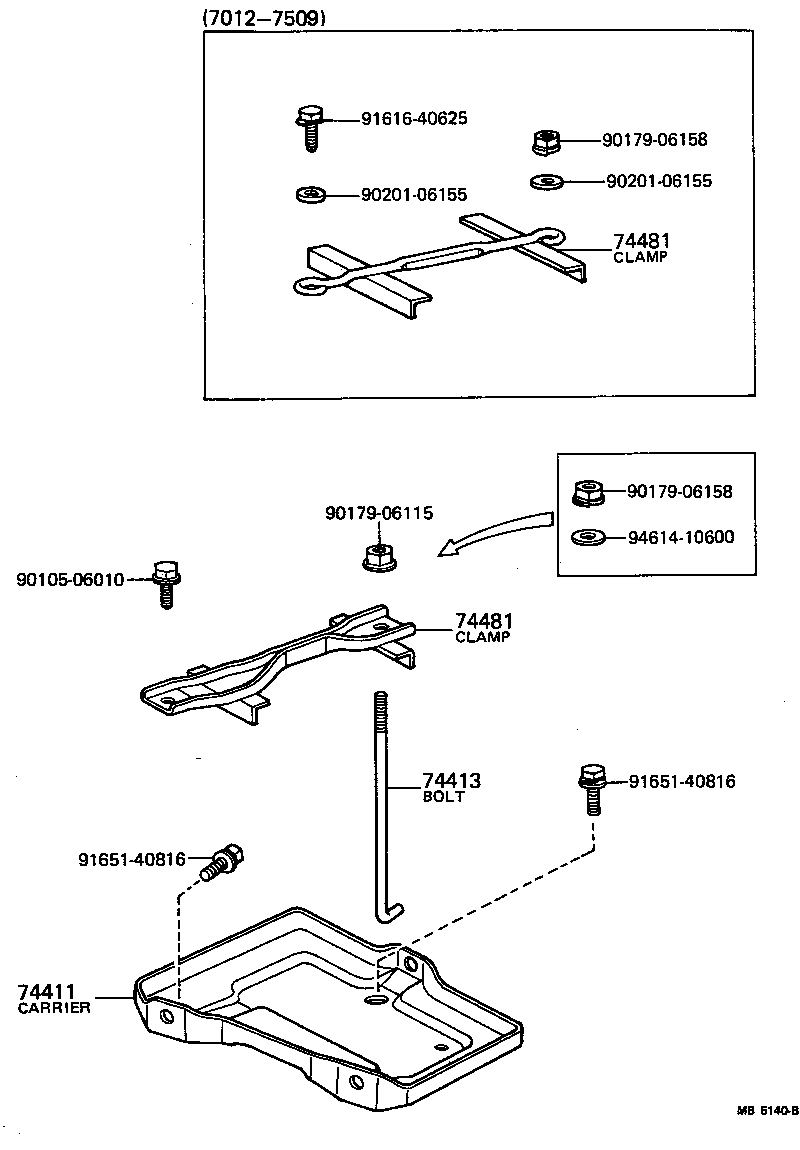

Click highlighted areas on diagram

diagram 74411 74413 74481 74481 9010506010 9017906115 9017906158 9017906158 9020106155 9020106155 9161640625 9165140816 9165140816 9461410600
Part # Description Qty Price
74411 - CARRIER, BATTERY
74411-14020

TA1#

FOR N50ZL

 1
74403-14020

TA1#

FOR N40L

 1
74411-14010

TA1#

FOR NS40ZL

 1
74403-14030

TA1#

FOR N50ZL

 1
74411-14030

TA1#

FOR N40L

 1
74403-14010

TA1#

FOR NS40ZL

 1
74413 - BOLT, BATTERY CLAMP
74451-30040

TA1#

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-14021

TA1#

FOR N50ZL

 1
74404-14010

TA1#

FOR NS40ZL

 1
74404-14011

TA1#

FOR NS40ZL

 1
74404-14050

TA1#

FOR N40L

 1
74404-14020

TA1#

FOR N50ZL

 1
74404-14051

TA1#

FOR N40L

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-14021

TA1#

FOR N50ZL

 1
74404-14010

TA1#

FOR NS40ZL

 1
74404-14011

TA1#

FOR NS40ZL

 1
74404-14050

TA1#

FOR N40L

 1
74404-14020

TA1#

FOR N50ZL

 1
74404-14051

TA1#

FOR N40L

 1
Common parts
90105-06010
90179-06115
90179-06158
90201-06155
91616-40625
91651-40816
94614-10600
