TA12-KF (1970)
Toyota Carina
Production
Dec 1970
-
Sep 1975
Engine
2T
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7012-7509)

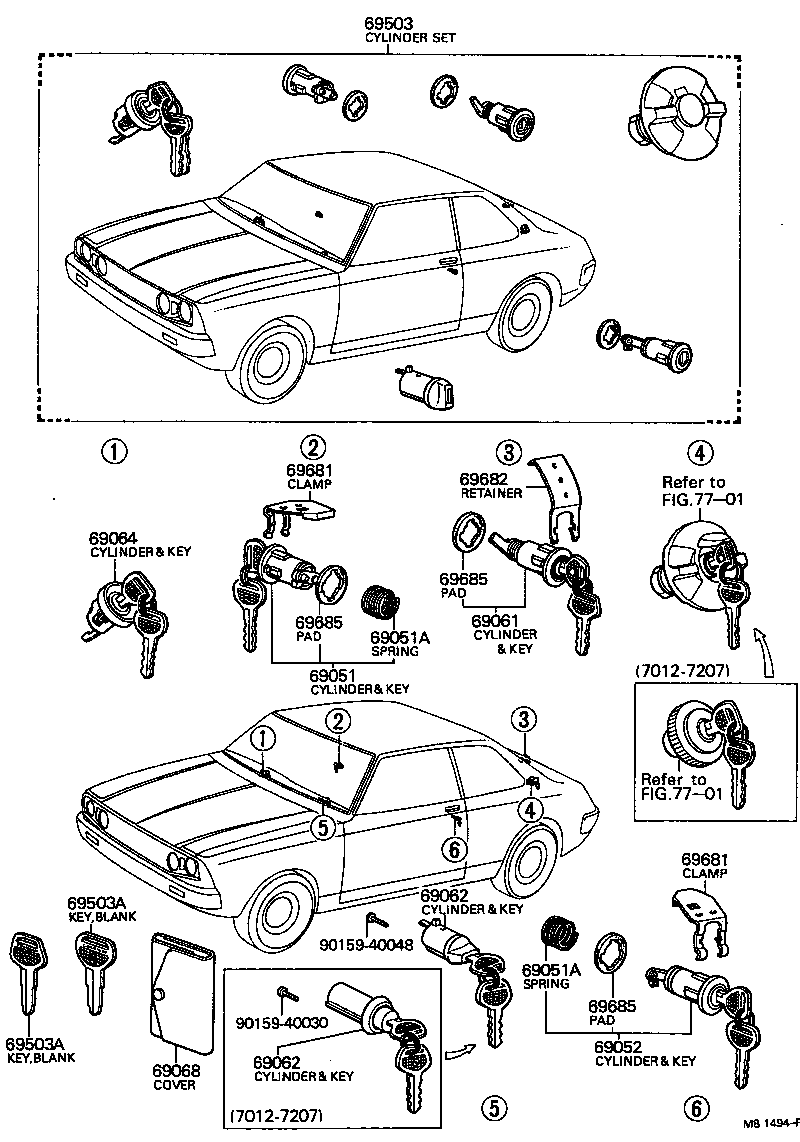

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-19015 |
TA1# |
1 | ||
| 69051A - SPRING, DOOR LOCK CYLINDER | ||||
| 90508-09279 |
TA1# |
2 | ||
| 69051A - SPRING, DOOR LOCK CYLINDER | ||||
| 90508-09279 |
TA1# |
2 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-19015 |
TA1# |
1 | ||
| 69061 - CYLINDER & KEY SET, LUGGAGE LOCK | ||||
| 69061-19055 |
TA1# |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69062-14011 |
TA1#..DLX,ST |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69062-14011 |
TA1#..DLX,ST |
1 | ||
| 69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69064-14010 |
TA1#..RHD |
1 | ||
| 69064-14031 |
TA1# |
1 | ||
| 69068 - COVER SUB-ASSY, KEY | ||||
| 69555-20010 |
TA1# |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69503-19365 |
TA12..STD W/FUEL LOCK |
1 | ||
| 69503-19326 |
TA1#..RHD..STD L/FUEL LOCK |
1 | ||
| 69503-19347 |
TA12..STD L/FUEL LOCK |
1 | ||
| 69503-19366 |
TA12..RHD..STD W/FUEL LOCK |
1 | ||
| 69503-19325 |
TA1#..STD L/FUEL LOCK |
1 | ||
| 69503-19377 |
TA12..STD W/FUEL LOCK |
1 | ||
| 69503-19485 |
TA1#..DLX,ST W/FUEL LOCK |
1 | ||
| 69503-19358 |
TA1#..DLX,ST W/FUEL LOCK |
1 | ||
| 69503-19378 |
TA12..STD W/FUEL LOCK |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00046 |
TA1# FOR SUB KEY |
1 | ||
| 90999-00054 |
TA1# FOR MASTER KEY |
1 | ||
| 90999-00055 |
TA1# FOR SUB KEY |
1 | ||
| 90999-00045 |
TA1# FOR MASTER KEY |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00046 |
TA1# FOR SUB KEY |
1 | ||
| 90999-00054 |
TA1# FOR MASTER KEY |
1 | ||
| 90999-00055 |
TA1# FOR SUB KEY |
1 | ||
| 90999-00045 |
TA1# FOR MASTER KEY |
1 | ||
| 69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE | ||||
| 69686-20010 |
TA1# LH. |
1 | ||
| 69681-20020 |
TA1# RH. |
1 | ||
| 69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE | ||||
| 69686-20010 |
TA1# LH. |
1 | ||
| 69681-20020 |
TA1# RH. |
1 | ||
| 69682 - RETAINER, LOCK CYLINDER | ||||
| 69682-14010 |
TA1# |
1 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69685-12010 |
TA1# |
3 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69685-12010 |
TA1# |
3 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69685-12010 |
TA1# |
3 | ||
| Common parts | ||||
| 90159-40030 | ||||
| 90159-40048 | ||||
| Linked diagrams | ||||
| 7701 | ||||
