TA12-KF (1970)
Toyota Carina
Production
Dec 1970
-
Sep 1975
Engine
2T
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

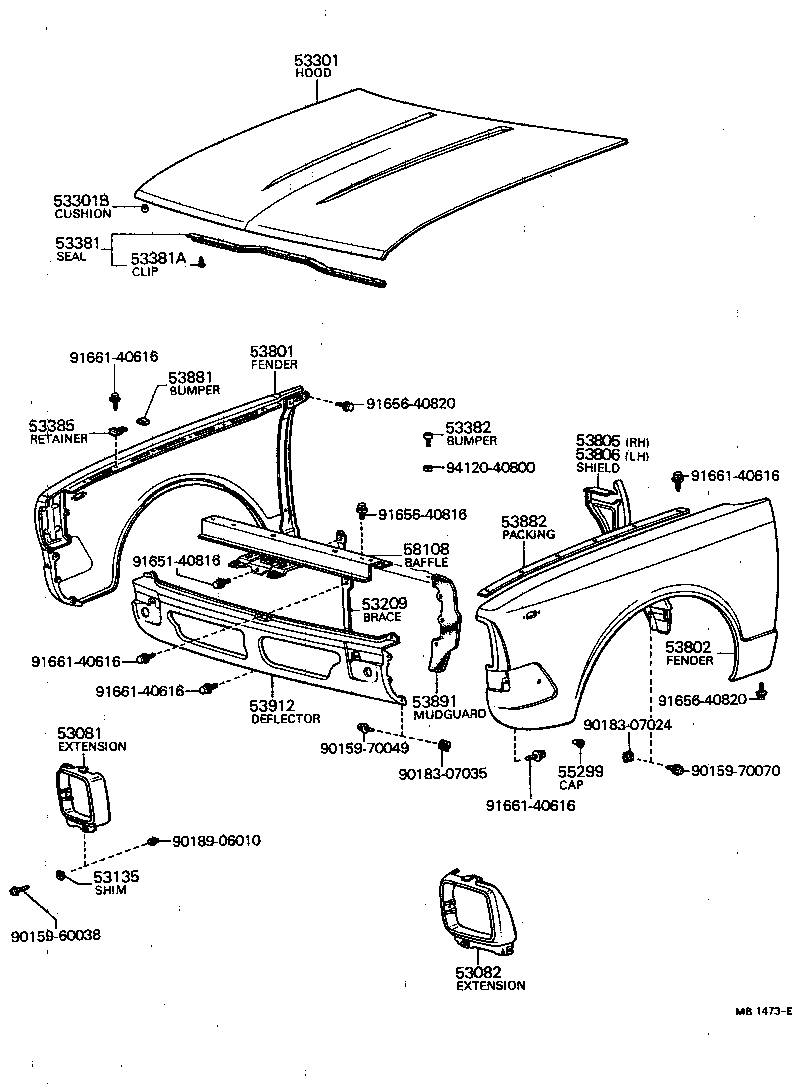

(7012-7207)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53081 - EXTENSION SUB-ASSY, FRONT FENDER, RH | ||||
| 53122-19035 |
TA1# |
1 | ||
| 53122-14020 |
TA1# |
1 | ||
| 53082 - EXTENSION SUB-ASSY, FRONT FENDER, LH | ||||
| 53123-14020 |
TA1# |
1 | ||
| 53123-19035 |
TA1# |
1 | ||
| 53135 - SHIM, HEADLAMP DOOR | ||||
| 90565-06009 |
TA1# T=1.0 |
2 | ||
| 90565-06010 |
TA1# T=2.0 |
2 | ||
| 53209 - BRACE SUB-ASSY, HOOD LOCK | ||||
| 53209-14020 |
TA1# |
1 | ||
| 53217-14010 |
TA1# |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-14011 |
TA1# |
1 | ||
| 53301-14010 |
TA1# |
1 | ||
| 53301B - CUSHION, HOOD BUMPER | ||||
| 90541-07075 |
TA1# |
2 | ||
| 90541-07118 |
TA1# |
2 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-14901 |
TA1# |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-07050 |
TA1# |
9 | ||
| 53382 - BUMPER, HOOD, FRONT | ||||
| 53382-20011 |
TA1# |
2 | ||
| 53385 - RETAINER, HOOD, BUMPER | ||||
| 53385-14010 |
TA1# RH. |
2 | ||
| 53386-14010 |
TA1# LH. |
2 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-14250 |
TA1# L/MIRROR HOLE |
1 | ||
| 53801-14010 |
TA1# W/MIRROR HOLE |
1 | ||
| 53801-14020 |
TA1# L/MIRROR HOLE |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-14010 |
TA1# W/MIRROR HOLE |
1 | ||
| 53802-14270 |
TA1# L/MIRROR HOLE |
1 | ||
| 53802-14020 |
TA1# L/MIRROR HOLE |
1 | ||
| 53805 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH | ||||
| 53805-14010 |
TA1# |
1 | ||
| 53806 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH | ||||
| 53806-14010 |
TA1# |
1 | ||
| 53881 - BUMPER, FENDER TO HOOD | ||||
| 53384-14010 |
TA1# |
4 | ||
| 53882 - PACKING, FRONT FENDER MAIN | ||||
| 53882-14010 |
TA1# |
2 | ||
| 53891 - MUDGUARD, FRONT FENDER TO SIDE BAFFLE | ||||
| 53891-14010 |
TA1# |
2 | ||
| 53912 - DEFLECTOR, FRONT BUMPER STONE | ||||
| 53911-14010 |
TA1# |
1 | ||
| 53911-14011 |
TA1# |
1 | ||
| 55299 - CAP, TEE NUT(FOR 6MM) | ||||
| 55299-30010 |
TA1# |
2 | ||
| 58108 - BAFFLE SUB-ASSY, RADIATOR UPPER | ||||
| 53027-14011 |
TA1# |
1 | ||
| 53209-14010 |
TA1# |
1 | ||
| 53027-14010 |
TA1# |
1 | ||
| Common parts | ||||
| 90159-60038 | ||||
| 90159-70049 | ||||
| 90159-70070 | ||||
| 90183-07024 | ||||
| 90183-07035 | ||||
| 90189-06010 | ||||
| 91651-40816 | ||||
| 91656-40816 | ||||
| 91656-40820 | ||||
| 91661-40616 | ||||
| 94120-40800 | ||||

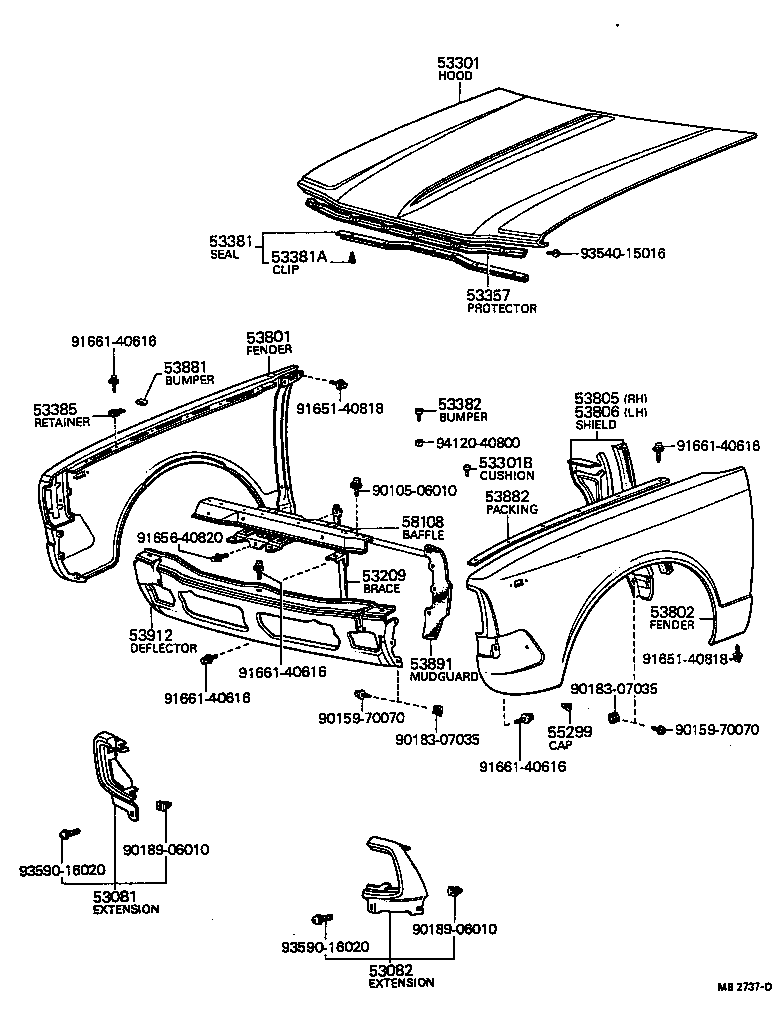

(7208-7509)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53081 - EXTENSION SUB-ASSY, FRONT FENDER, RH | ||||
| 53122-19035 |
TA1# |
1 | ||
| 53122-14020 |
TA1# |
1 | ||
| 53082 - EXTENSION SUB-ASSY, FRONT FENDER, LH | ||||
| 53123-14020 |
TA1# |
1 | ||
| 53123-19035 |
TA1# |
1 | ||
| 53209 - BRACE SUB-ASSY, HOOD LOCK | ||||
| 53209-14020 |
TA1# |
1 | ||
| 53217-14010 |
TA1# |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-14011 |
TA1# |
1 | ||
| 53301-14010 |
TA1# |
1 | ||
| 53301B - CUSHION, HOOD BUMPER | ||||
| 90541-07075 |
TA1# |
2 | ||
| 90541-07118 |
TA1# |
2 | ||
| 53357 - PROTECTOR, HOOD INNER | ||||
| 53359-14010 |
TA1# |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-14901 |
TA1# |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-07050 |
TA1# |
9 | ||
| 53382 - BUMPER, HOOD, FRONT | ||||
| 53382-20011 |
TA1# |
2 | ||
| 53385 - RETAINER, HOOD, BUMPER | ||||
| 53385-14010 |
TA1# RH. |
2 | ||
| 53386-14010 |
TA1# LH. |
2 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-14250 |
TA1# L/MIRROR HOLE |
1 | ||
| 53801-14010 |
TA1# W/MIRROR HOLE |
1 | ||
| 53801-14020 |
TA1# L/MIRROR HOLE |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-14010 |
TA1# W/MIRROR HOLE |
1 | ||
| 53802-14270 |
TA1# L/MIRROR HOLE |
1 | ||
| 53802-14020 |
TA1# L/MIRROR HOLE |
1 | ||
| 53805 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH | ||||
| 53805-14010 |
TA1# |
1 | ||
| 53806 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH | ||||
| 53806-14010 |
TA1# |
1 | ||
| 53881 - BUMPER, FENDER TO HOOD | ||||
| 53384-14010 |
TA1# |
4 | ||
| 53882 - PACKING, FRONT FENDER MAIN | ||||
| 53882-14010 |
TA1# |
2 | ||
| 53891 - MUDGUARD, FRONT FENDER TO SIDE BAFFLE | ||||
| 53891-14010 |
TA1# |
2 | ||
| 53912 - DEFLECTOR, FRONT BUMPER STONE | ||||
| 53911-14010 |
TA1# |
1 | ||
| 53911-14011 |
TA1# |
1 | ||
| 55299 - CAP, TEE NUT(FOR 6MM) | ||||
| 55299-30010 |
TA1# |
2 | ||
| 58108 - BAFFLE SUB-ASSY, RADIATOR UPPER | ||||
| 53027-14011 |
TA1# |
1 | ||
| 53209-14010 |
TA1# |
1 | ||
| 53027-14010 |
TA1# |
1 | ||
| Common parts | ||||
| 90105-06010 | ||||
| 90159-70070 | ||||
| 90183-07035 | ||||
| 90189-06010 | ||||
| 91651-40818 | ||||
| 91656-40820 | ||||
| 91661-40616 | ||||
| 93540-15016 | ||||
| 93590-16020 | ||||
| 94120-40800 | ||||
