TA12-KF (1970)

Toyota Carina

Production Dec 1970 - Sep 1975
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

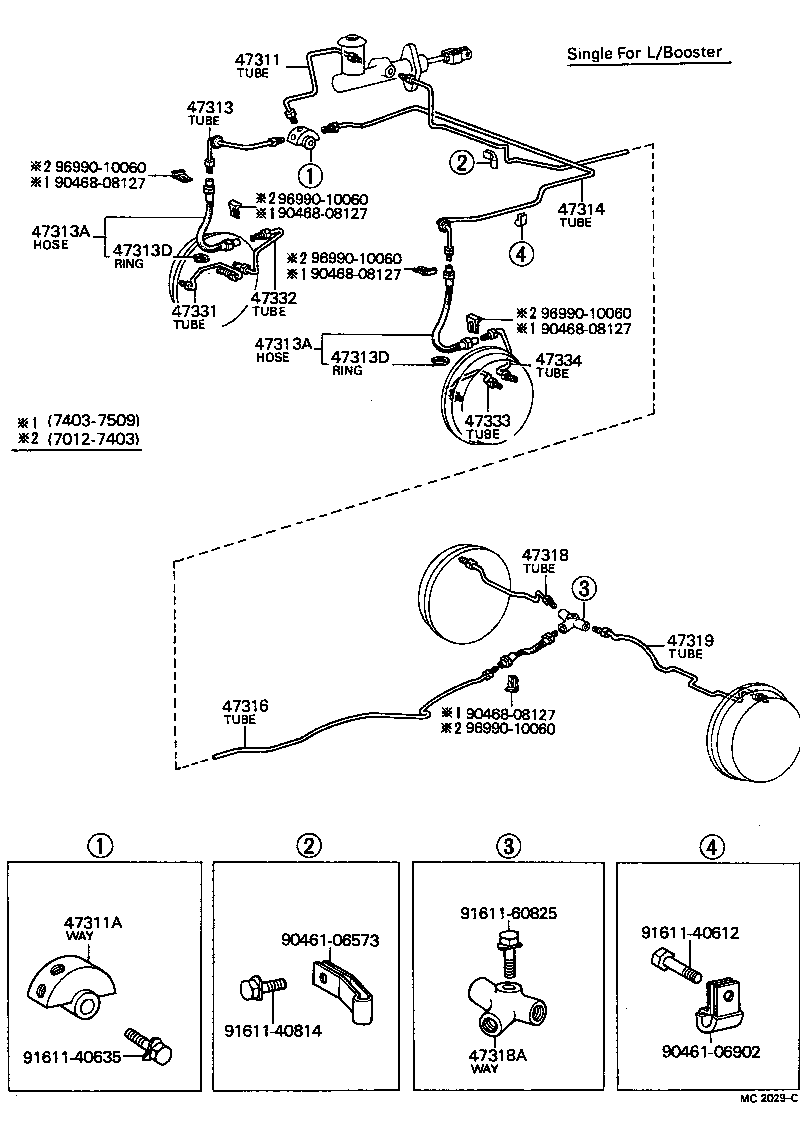

(7012-7509)RHD

Click highlighted areas on diagram

diagram 47311 47311A 47313 47313A 47313A 47313D 47313D 47314 47316 47318 47318A 47319 47331 47332 47333 47334 9046106573 9046106902 9046808127 9046808127 9046808127 9046808127 9046808127 9161140612 9161140635 9161140814 9161160825 9699010060 9699010060 9699010060 9699010060 9699010060
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-14010

TA1#..RHD

SINGLE M/C

 1
47311-14060

TA1#..RHD

FOR FRONT DISC BRAKE

 1
47311-14060

TA12..RHD

SINGLE M/C

 1
47311-14020

TA12..RHD

TANDEM MASTER

 1
47311-14010

TA12..RHD

SINGLE M/C

 1
47311-14021

TA12..RHD

TANDEM MASTER

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10069

TA1#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-14011

TA12..RHD

 1
47313-14011

TA1#..RHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02122

TA1#..DLX,STD

 2
90947-02122

TA1#

 2
90947-02128

TA1#

DISC BRAKE

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02122

TA1#..DLX,STD

 2
90947-02122

TA1#

 2
90947-02128

TA1#

DISC BRAKE

 2
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

TA1#

 4
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

TA1#

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-14011

TA1#..RHD

 1
47314-14012

TA12..RHD

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-14020

TA12;TA10..4D;TA10..RHD..2D

FOR W/P.V.

 1
47316-14010

TA1#..RHD

 1
47316-14020

TA1#

FOR W/P.V.

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-14010

TA1#

 1
47318A - WAY(FOR REAR RH BRAKE TUBE)
90413-10098

TA1#

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-14010

TA1#

 1
47331 - TUBE, REAR BRAKE, NO.10
47331-14010

TA1#

 1
47331-14010

TA1#..DLX,STD

 1
47332 - TUBE, REAR BRAKE, NO.11
47332-14011

TA1#..DLX,STD

 1
47333 - TUBE, REAR BRAKE, NO.12
47331-14010

TA1#..DLX,STD

 1
47331-14010

TA1#

 1
47334 - TUBE, REAR BRAKE, NO.13
47334-14011

TA1#..DLX,STD

 1
47334-14011

TA1#

 1
Common parts
90461-06573
90461-06902
90468-08127
91611-40612
91611-40635
91611-40814
91611-60825
96990-10060

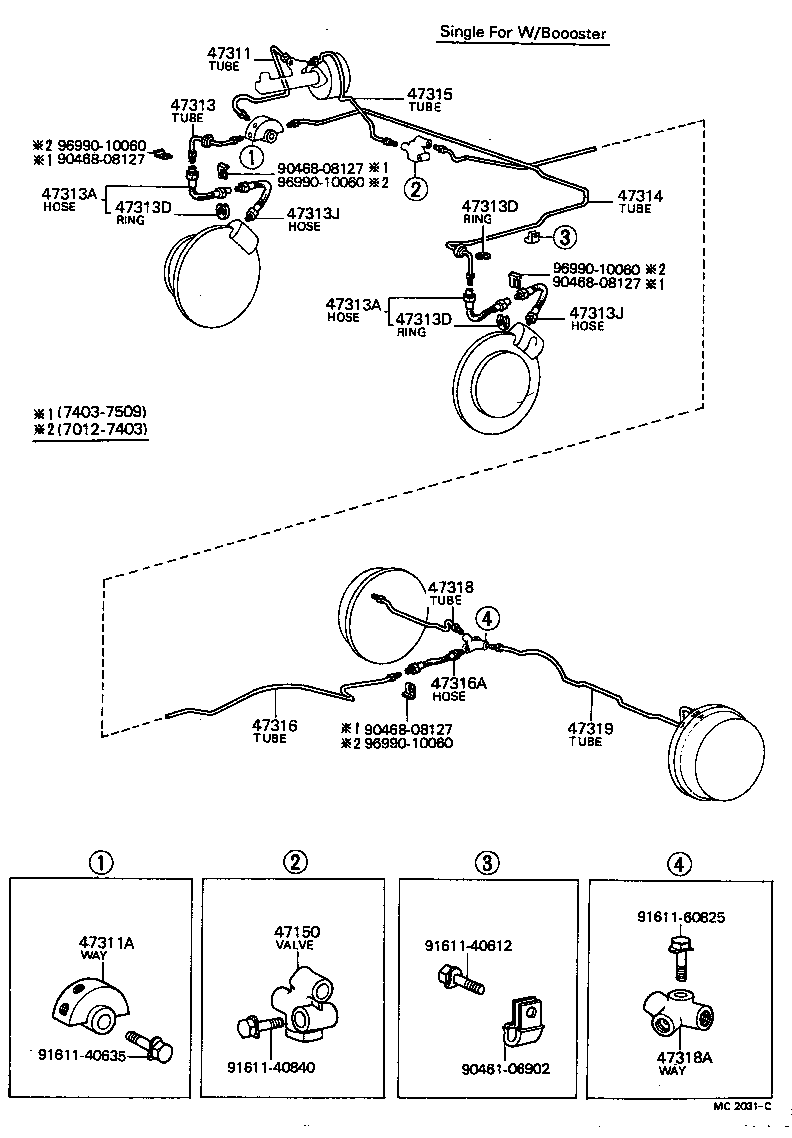

(7012-7509)RHD

Click highlighted areas on diagram

diagram 47150 47311 47311A 47313 47313A 47313A 47313D 47313D 47313D 47313J 47313J 47314 47315 47316 47316A 47318 47318A 47319 9046106902 9046808127 9046808127 9046808127 9046808127 9161140612 9161140635 9161140840 9161160825 9699010060 9699010060 9699010060 9699010060
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-14010

TA1#

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-14010

TA1#..RHD

SINGLE M/C

 1
47311-14060

TA1#..RHD

FOR FRONT DISC BRAKE

 1
47311-14060

TA12..RHD

SINGLE M/C

 1
47311-14020

TA12..RHD

TANDEM MASTER

 1
47311-14010

TA12..RHD

SINGLE M/C

 1
47311-14021

TA12..RHD

TANDEM MASTER

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10069

TA1#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-14011

TA12..RHD

 1
47313-14011

TA1#..RHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02122

TA1#..DLX,STD

 2
90947-02122

TA1#

 2
90947-02128

TA1#

DISC BRAKE

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02122

TA1#..DLX,STD

 2
90947-02122

TA1#

 2
90947-02128

TA1#

DISC BRAKE

 2
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

TA1#

 4
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

TA1#

 4
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

TA1#

 4
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02238

TA1#

 2
90947-02163

TA1#

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02238

TA1#

 2
90947-02163

TA1#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-14011

TA1#..RHD

 1
47314-14012

TA12..RHD

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-14070

TA12..RHD

TANDEM M/C

 1
47315-14011

TA12..RHD

TANDEM M/C

 1
47315-14040

TA1#..RHD

SINGLE M/C

 1
47315-14010

TA12..RHD

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-14020

TA12;TA10..4D;TA10..RHD..2D

FOR W/P.V.

 1
47316-14010

TA1#..RHD

 1
47316-14020

TA1#

FOR W/P.V.

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-31282

TA1#

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-14010

TA1#

 1
47318A - WAY(FOR REAR RH BRAKE TUBE)
90413-10098

TA1#

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-14010

TA1#

 1
Common parts
90461-06902
90468-08127
91611-40612
91611-40635
91611-40840
91611-60825
96990-10060

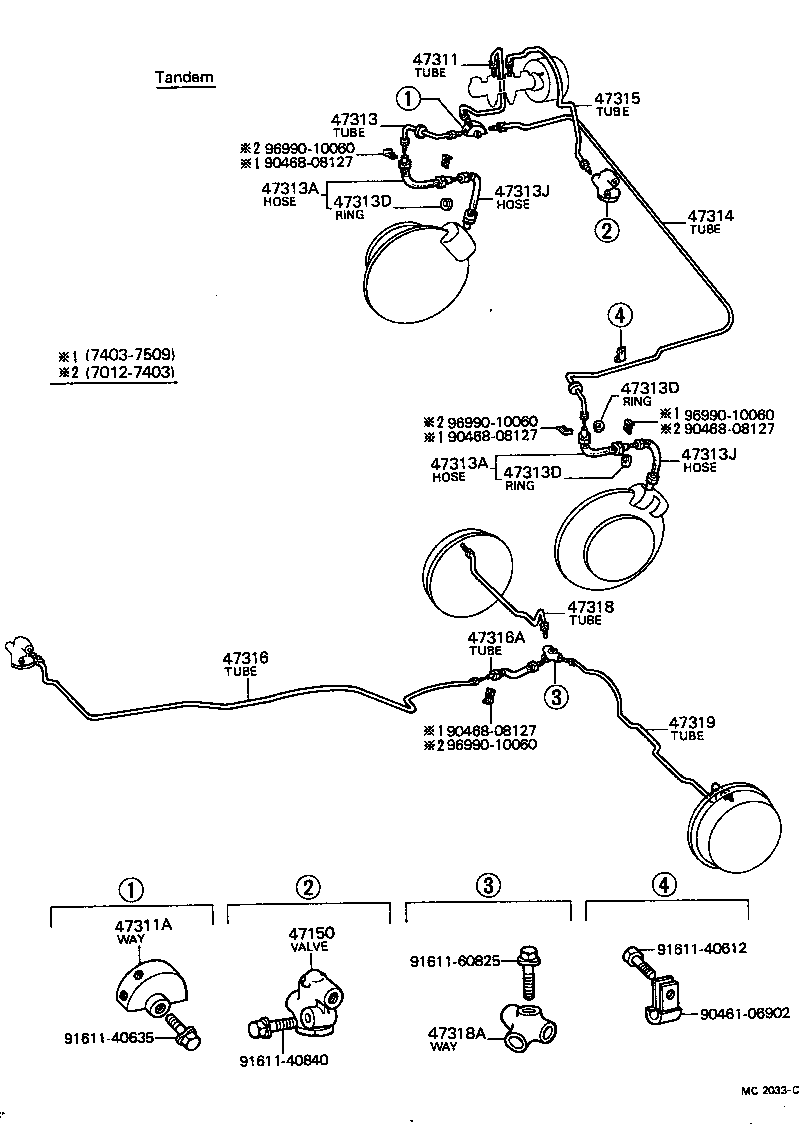

(7012-7509)RHD

Click highlighted areas on diagram

diagram 47150 47311 47311A 47313 47313A 47313A 47313D 47313D 47313D 47313J 47313J 47314 47315 47316 47316A 47318 47318A 47319 9046106902 9046808127 9046808127 9046808127 9046808127 9161140612 9161140635 9161140840 9161160825 9699010060 9699010060 9699010060 9699010060
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-14010

TA1#

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-14010

TA1#..RHD

SINGLE M/C

 1
47311-14060

TA1#..RHD

FOR FRONT DISC BRAKE

 1
47311-14060

TA12..RHD

SINGLE M/C

 1
47311-14020

TA12..RHD

TANDEM MASTER

 1
47311-14010

TA12..RHD

SINGLE M/C

 1
47311-14021

TA12..RHD

TANDEM MASTER

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10069

TA1#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-14011

TA12..RHD

 1
47313-14011

TA1#..RHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02122

TA1#..DLX,STD

 2
90947-02122

TA1#

 2
90947-02128

TA1#

DISC BRAKE

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02122

TA1#..DLX,STD

 2
90947-02122

TA1#

 2
90947-02128

TA1#

DISC BRAKE

 2
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

TA1#

 4
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

TA1#

 4
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

TA1#

 4
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02238

TA1#

 2
90947-02163

TA1#

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02238

TA1#

 2
90947-02163

TA1#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-14011

TA1#..RHD

 1
47314-14012

TA12..RHD

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-14070

TA12..RHD

TANDEM M/C

 1
47315-14011

TA12..RHD

TANDEM M/C

 1
47315-14040

TA1#..RHD

SINGLE M/C

 1
47315-14010

TA12..RHD

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-14020

TA12;TA10..4D;TA10..RHD..2D

FOR W/P.V.

 1
47316-14010

TA1#..RHD

 1
47316-14020

TA1#

FOR W/P.V.

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-31282

TA1#

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-14010

TA1#

 1
47318A - WAY(FOR REAR RH BRAKE TUBE)
90413-10098

TA1#

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-14010

TA1#

 1
Common parts
90461-06902
90468-08127
91611-40612
91611-40635
91611-40840
91611-60825
96990-10060
