TA12-KF (1970)
Toyota Carina
Production
Dec 1970
-
Sep 1975
Engine
2T
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

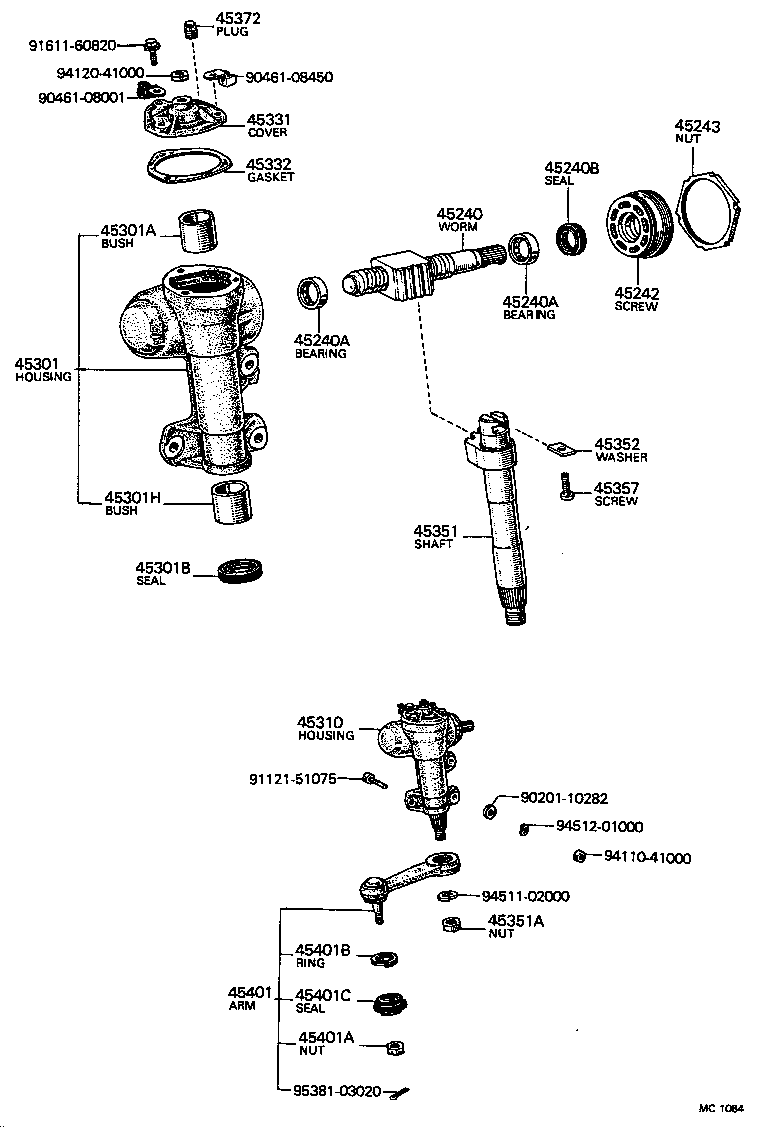

(7012-7509)RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45240-22010 |
TA1#..RHD |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-40040 |
TA1# |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-40040 |
TA1# |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-17062 |
TA1# |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-22020 |
TA1# |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-22020 |
TA1# |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-12140 |
TA12..RHD |
1 | ||
| 45301-14010 |
TA1#..RHD |
1 | ||
| 45301A - BUSH OR BEARING, SECTOR SHAFT, NO.1 | ||||
| 90999-73008 |
TA1# |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-28014 |
TA1# |
1 | ||
| 45301H - BUSH OR BEARING, SECTOR SHAFT, NO.2 | ||||
| 90999-73008 |
TA1# |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-14010 |
TA1#..RHD |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-20020 |
TA1#..RHD |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-22020 |
TA1# |
1 | ||
| 45351 - SHAFT, STEERING SECTOR | ||||
| 45351-14010 |
TA1#..RHD |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
TA1# |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45352-14010 |
TA1# T=2.00,T=2.00 |
1 | ||
| 45352-14020 |
TA1# T=2.04,T=2.04 |
1 | ||
| 45352-14050 |
TA1# T=2.16,T=2.16 |
1 | ||
| 45352-14040 |
TA1# T=2.12,T=2.12 |
1 | ||
| 45352-14030 |
TA1# T=2.08,T=2.08 |
1 | ||
| 45352-14060 |
TA1# T=2.20,T=2.20 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-30040 |
TA12..RHD |
1 | ||
| 45357-30040 |
TA1# |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03027 |
TA1# |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-19065 |
TA1# |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-12028 |
TA1# |
1 | ||
| 45401B - RING, SET(FOR PITMAN ARM) | ||||
| 90522-34014 |
TA1# |
1 | ||
| 45401C - SEAL, DUST(FOR PITMAN ARM) | ||||
| 45481-21011 |
TA1# |
1 | ||
| Common parts | ||||
| 90201-10282 | ||||
| 90461-08001 | ||||
| 90461-08450 | ||||
| 91121-51075 | ||||
| 91611-60820 | ||||
| 94110-41000 | ||||
| 94120-41000 | ||||
| 94511-02000 | ||||
| 94512-01000 | ||||
| 95381-03020 | ||||

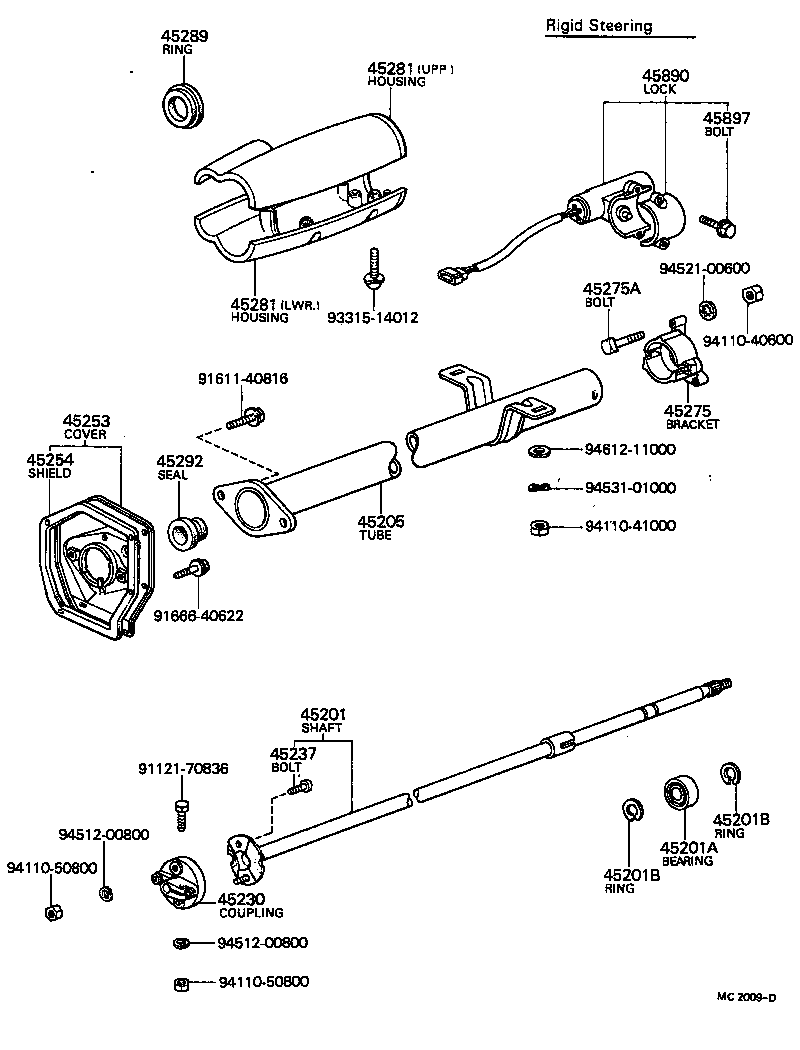

(7012-7509)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45201-14010 |
TA1# RIGID |
1 | ||
| 45201-14020 |
TA1# COLLAPSIBLE |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
TA1# B18Z-1B1 C3 |
1 | ||
| 90363-18085 |
TA1# KOYO |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
TA1# T=1.20,T=1.2 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
TA1# T=1.20,T=1.2 |
2 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-14010 |
TA1#..RHD RIGID |
1 | ||
| 45870-14901 |
TA1# COLLAPSIBLE |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-22010 |
TA1# RIGID |
1 | ||
| 45230-20010 |
TA1# COLLAPSIBLE |
1 | ||
| 45237 - BOLT, FLEXIBLE ATTACHING(FOR STEERING MAIN SHAFT) | ||||
| 90114-08027 |
TA1# |
2 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-14020 |
TA1#..RHD |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-14010 |
TA1#..RHD |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45275-20050 |
TA1# |
1 | ||
| 45275A - BOLT, HEXAGON(FOR STEERING COLUMN BRACKET) | ||||
| 90108-06010 |
TA1# |
2 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-20050 |
TA1#..RHD UPPER |
1 | ||
| 45286-20051 |
TA12..RHD UPPER |
1 | ||
| 45287-20030 |
TA1#..RHD LOWER |
1 | ||
| 45287-20031 |
TA12..RHD LOWER |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-20050 |
TA1#..RHD UPPER |
1 | ||
| 45286-20051 |
TA12..RHD UPPER |
1 | ||
| 45287-20030 |
TA1#..RHD LOWER |
1 | ||
| 45287-20031 |
TA12..RHD LOWER |
1 | ||
| 45289 - RING, STEERING COLUMN COVER | ||||
| 45289-20010 |
TA1# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-14020 |
TA1# COLLAPSIBLE |
1 | ||
| 45292-14010 |
TA1# RIGID |
1 | ||
| 45292-14021 |
TA1# COLLAPSIBLE |
1 | ||
| 45890 - LOCK ASSY, STEERING | ||||
| 45890-20022 |
TA1#..RHD |
1 | ||
| 45890-20060 |
TA1# |
1 | ||
| 45890-20021 |
TA1# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12010 |
TA1# |
2 | ||
| 45897-12011 |
TA1# |
2 | ||
| Common parts | ||||
| 91121-70836 | ||||
| 91611-40816 | ||||
| 91666-40622 | ||||
| 93315-14012 | ||||
| 94110-40600 | ||||
| 94110-41000 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
| 94521-00600 | ||||
| 94531-01000 | ||||
| 94612-11000 | ||||

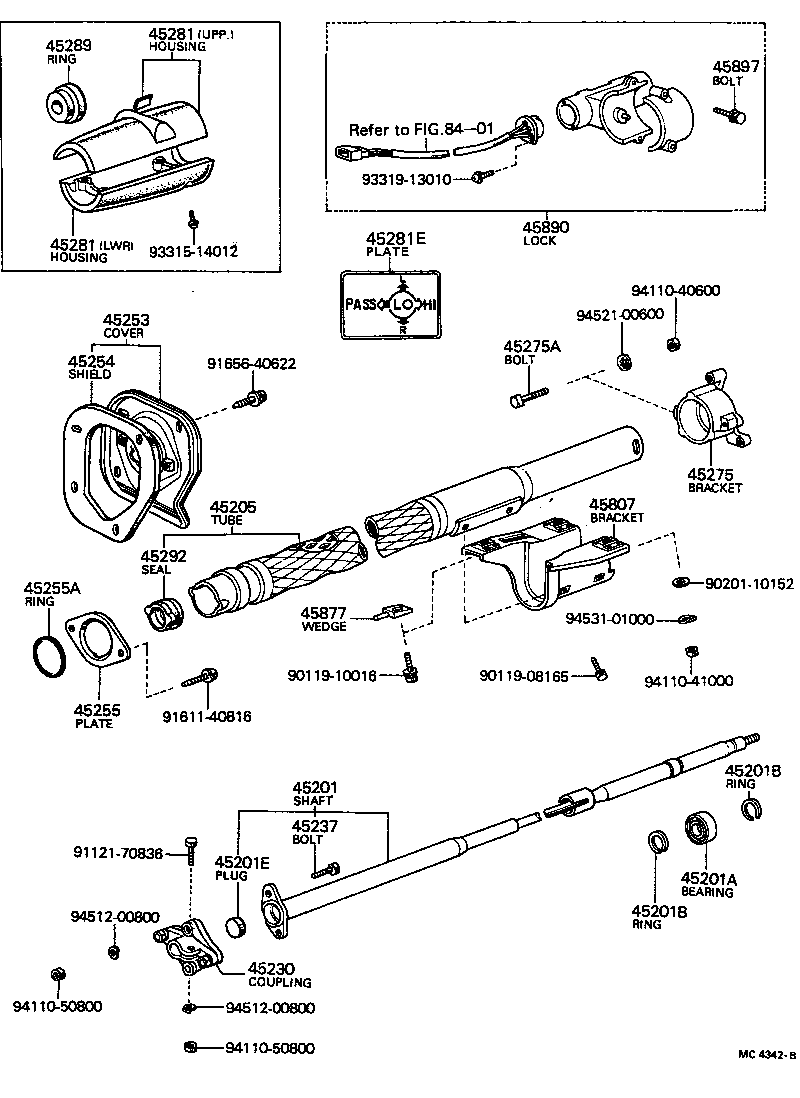

(7012-7509)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45201-14010 |
TA1# RIGID |
1 | ||
| 45201-14020 |
TA1# COLLAPSIBLE |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
TA1# B18Z-1B1 C3 |
1 | ||
| 90363-18085 |
TA1# KOYO |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
TA1# T=1.20,T=1.2 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
TA1# T=1.20,T=1.2 |
2 | ||
| 45201E - PLUG, PLATE(FOR STEERING MAIN SHAFT) | ||||
| 90333-21008 |
TA1# |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-14010 |
TA1#..RHD RIGID |
1 | ||
| 45870-14901 |
TA1# COLLAPSIBLE |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-22010 |
TA1# RIGID |
1 | ||
| 45230-20010 |
TA1# COLLAPSIBLE |
1 | ||
| 45237 - BOLT, FLEXIBLE ATTACHING(FOR STEERING MAIN SHAFT) | ||||
| 90114-08027 |
TA1# |
2 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-14020 |
TA1#..RHD |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-14010 |
TA1#..RHD |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-14020 |
TA1# |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-42126 |
TA1# |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45275-20050 |
TA1# |
1 | ||
| 45275A - BOLT, HEXAGON(FOR STEERING COLUMN BRACKET) | ||||
| 90108-06010 |
TA1# |
2 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-20050 |
TA1#..RHD UPPER |
1 | ||
| 45286-20051 |
TA12..RHD UPPER |
1 | ||
| 45287-20030 |
TA1#..RHD LOWER |
1 | ||
| 45287-20031 |
TA12..RHD LOWER |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-20050 |
TA1#..RHD UPPER |
1 | ||
| 45286-20051 |
TA12..RHD UPPER |
1 | ||
| 45287-20030 |
TA1#..RHD LOWER |
1 | ||
| 45287-20031 |
TA12..RHD LOWER |
1 | ||
| 45289 - RING, STEERING COLUMN COVER | ||||
| 45289-20010 |
TA1# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-14020 |
TA1# COLLAPSIBLE |
1 | ||
| 45292-14010 |
TA1# RIGID |
1 | ||
| 45292-14021 |
TA1# COLLAPSIBLE |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-14010 |
TA1#..RHD |
1 | ||
| 45877 - WEDGE, CASTER(FOR STEERING COLUMN TUBE SETTING) | ||||
| 45877-30010 |
TA10,12 |
1 | ||
| 45890 - LOCK ASSY, STEERING | ||||
| 45890-20022 |
TA1#..RHD |
1 | ||
| 45890-20060 |
TA1# |
1 | ||
| 45890-20021 |
TA1# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12010 |
TA1# |
2 | ||
| 45897-12011 |
TA1# |
2 | ||
| Common parts | ||||
| 90119-08165 | ||||
| 90119-10016 | ||||
| 90201-10152 | ||||
| 91121-70836 | ||||
| 91611-40816 | ||||
| 91656-40622 | ||||
| 93315-14012 | ||||
| 93319-13010 | ||||
| 94110-40600 | ||||
| 94110-41000 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
| 94521-00600 | ||||
| 94531-01000 | ||||
| Linked diagrams | ||||
| 8401 | ||||
