TA12-KF (1970)

Toyota Carina

Production Dec 1970 - Sep 1975
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7509)MTM

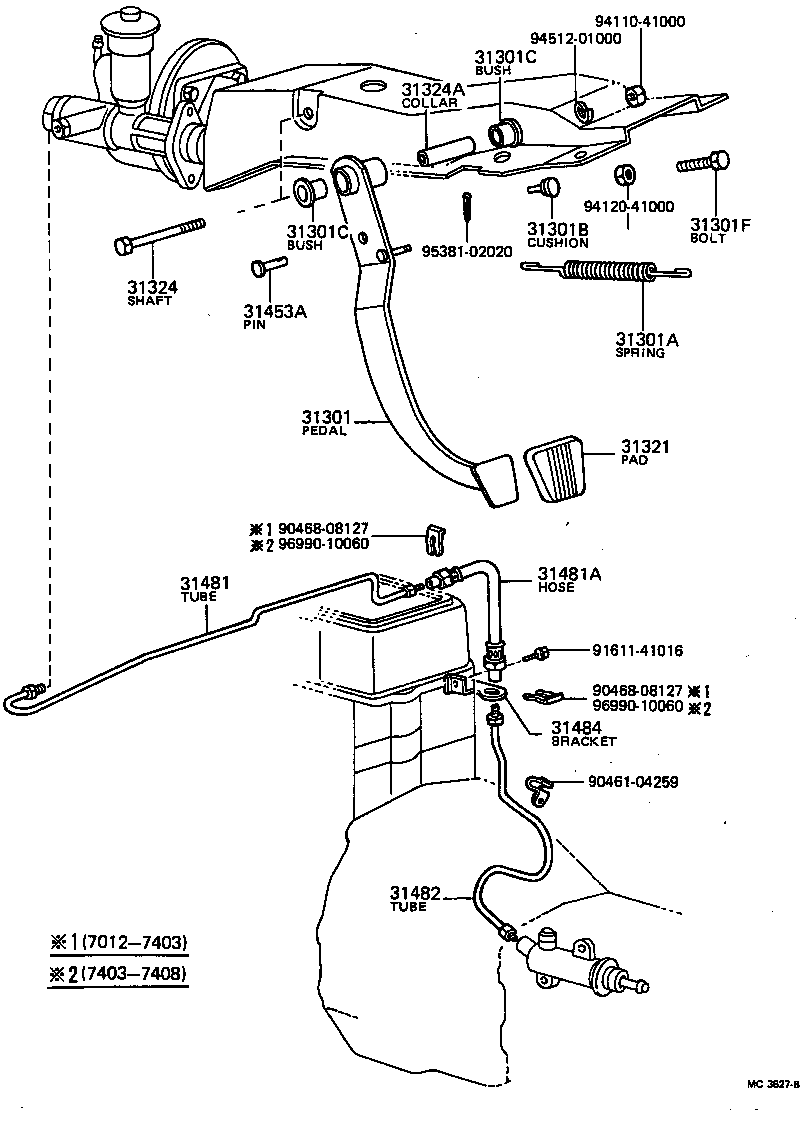

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31453A 31481 31481A 31482 31484 9046104259 9046808127 9046808127 9161141016 9411041000 9412041000 9451201000 9538102020 9699010060 9699010060
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-14010

TA1#..RHD..4F

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90506-16148

TA1#..MTM

 1
90506-14001

TA1#..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

TA1#..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

TA1#..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

TA1#..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

TA1#..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-14010

TA1#..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10039

TA1#..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

TA1#..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08040

TA1#..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-14010

TA1#..RHD..4F

 1
31481-14030

TA12..RHD..4F

 1
31481A - HOSE, CLUTCH, NO.1
96930-31242

TA1#..MTM

 1
90947-02205

TA1#..MTM

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-14010

TA1#..MTM

 1
Common parts
90461-04259
90468-08127
91611-41016
94110-41000
94120-41000
94512-01000
95381-02020
96990-10060
