TA12-KF (1970)
Toyota Carina

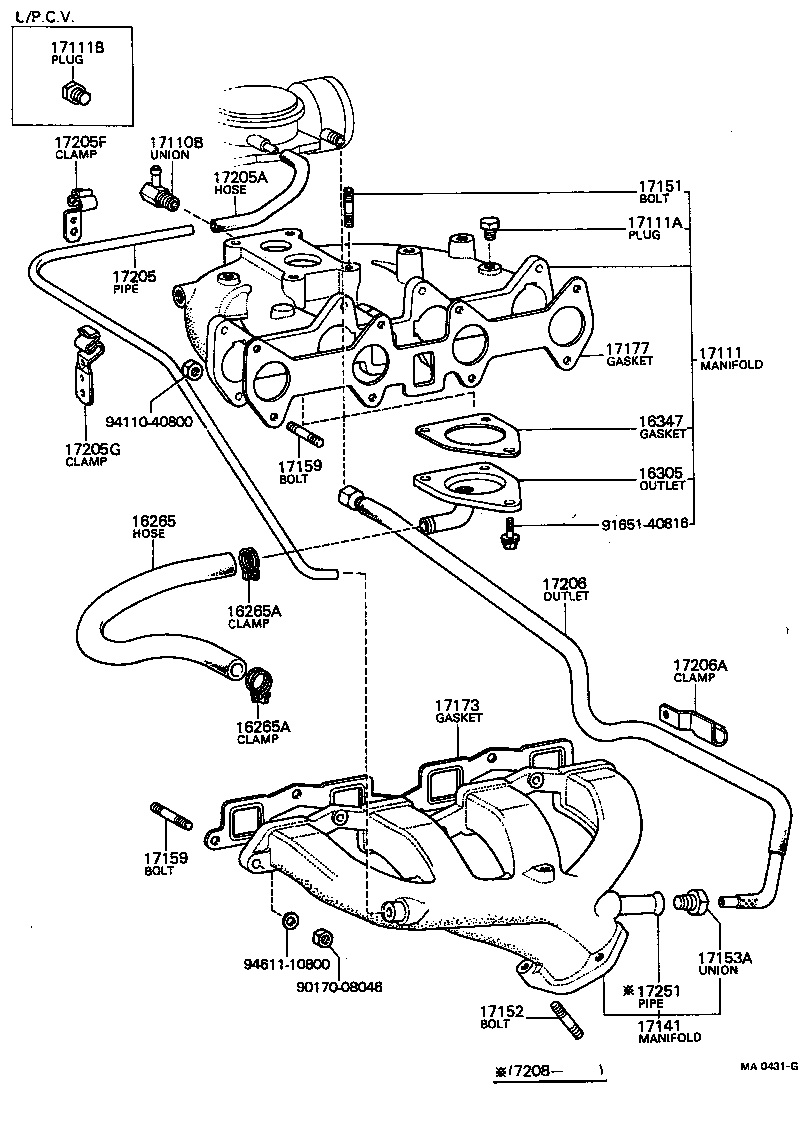

(7012-7303)T,2T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16265 - HOSE, INTAKE MANIFOLD WATER | ||||
| 90445-21611 |
T,2T..TA1# |
1 | ||
| 16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER) | ||||
| 90460-22004 |
T,2T..TA1# |
2 | ||
| 96112-10220 |
T,2T#..TA1# |
2 | ||
| 16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER) | ||||
| 90460-22004 |
T,2T..TA1# |
2 | ||
| 96112-10220 |
T,2T#..TA1# |
2 | ||
| 16305 - OUTLET SUB-ASSY, WATER BY-PASS | ||||
| 16305-25010 |
T,2T..TA1# |
1 | ||
| 16347 - GASKET, WATER BY-PASS | ||||
| 16347-25010 |
T,2T..TA1# |
1 | ||
| 17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD) | ||||
| 90407-09045 |
T,2T#..TA1# |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-25903 |
T,2T..TA1# |
1 | ||
| 17101-25010 |
T,2T..TA1# |
1 | ||
| 17111A - PLUG, NO.1 | ||||
| 90072-34107 |
T,2T#..TA1# |
2 | ||
| 17111B - PLUG, NO.2 | ||||
| 90345-53007 |
T,2T..TA1# L/P.C.V. |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17104-25010 |
T,2T..TA1# |
1 | ||
| 17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR) | ||||
| 90116-08010 |
T,2T..TA1# L=39,S=13&13 |
4 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 92122-41022 |
T,2T#..TA1# |
3 | ||
| 90116-10019 |
T,2T..TA1# L=38,S=14&14 |
3 | ||
| 17153A - UNION(FOR AUTOMATIC CHOKE STOVE PIPE) | ||||
| 90402-18062 |
T,2T..TA1# |
1 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08015 |
T,2T#..TA1# L=37,S=13.5&13.5 |
13 | ||
| 90116-08296 |
T,2T#..TA1# L=34.5,S=12&19 |
4 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08015 |
T,2T#..TA1# L=37,S=13.5&13.5 |
13 | ||
| 90116-08296 |
T,2T#..TA1# L=34.5,S=12&19 |
4 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-25010 |
T,2T#..TA1# |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-25010 |
T,2T#..TA1# |
1 | ||
| 17205 - PIPE, AUTOMATIC CHOKE STOVE INLET | ||||
| 17253-25010 |
T,2T..TA1# |
1 | ||
| 17205A - HOSE(FOR AUTOMATIC CHOKE STOVE PIPE) | ||||
| 90445-11530 |
T,2T..TA1# |
1 | ||
| 17205F - CLAMP(FOR AUTOMATIC CHOKE STOVE INLET PIPE) | ||||
| 90461-06896 |
T,2T..TA1# |
1 | ||
| 90461-04551 |
T,2T..TA1# |
1 | ||
| 17205G - CLAMP, NO.2(FOR AUTOMATIC CHOKE STOVE INLET PIPE) | ||||
| 90461-04667 |
T,2T..TA1# |
1 | ||
| 90461-06895 |
T,2T..TA1# |
1 | ||
| 17206 - PIPE, AUTOMATIC CHOKE STOVE OUTLET | ||||
| 17206-25010 |
T,2T..TA1# |
1 | ||
| 17206A - CLAMP(FOR AUTOMATIC CHOKE STOVE OUTLET PIPE) | ||||
| 90461-05569 |
T,2T..TA1# |
1 | ||
| 17251 - PIPE,AUTOMATIC CHOKE STOVE | ||||
| 17204-25010 |
T,2T..TA1# |
1 | ||
| Common parts | ||||
| 90170-08046 | ||||
| 91651-40816 | ||||
| 94110-40800 | ||||
| 94611-10800 | ||||

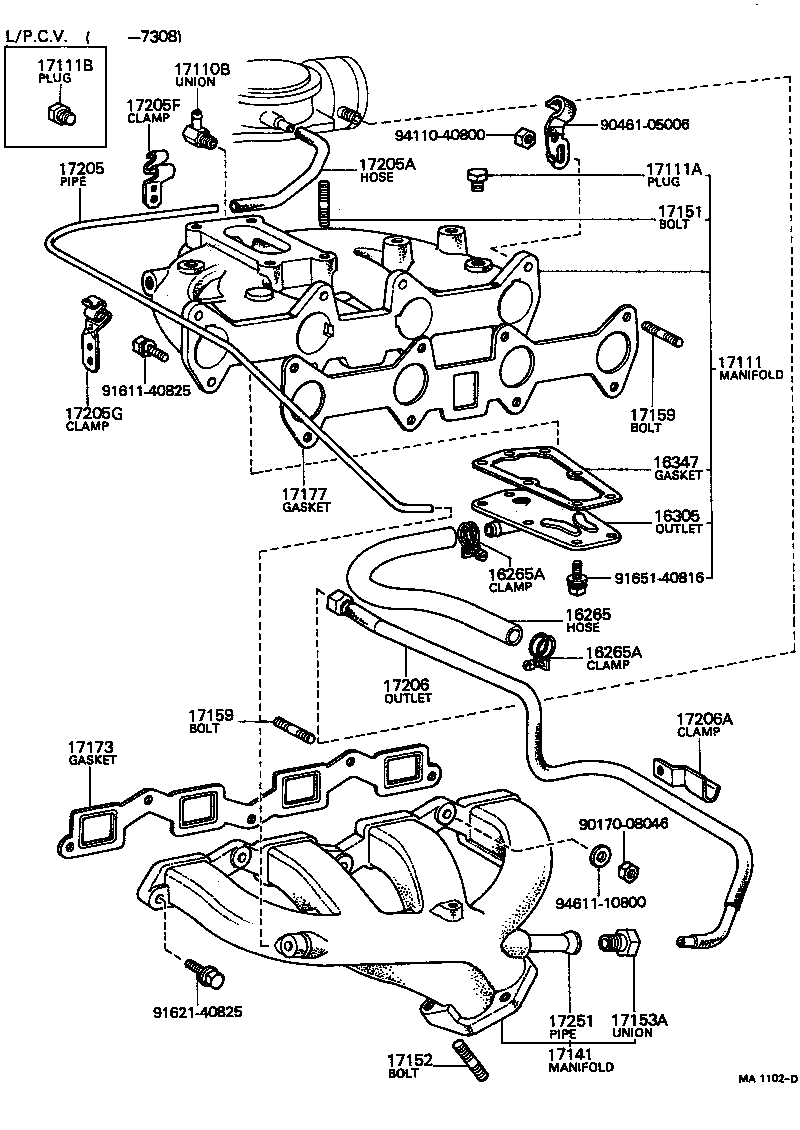

(7304-7509)T,2T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16265 - HOSE, INTAKE MANIFOLD WATER | ||||
| 90445-21611 |
T,2T..TA1# |
1 | ||
| 16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER) | ||||
| 90460-22004 |
T,2T..TA1# |
2 | ||
| 96112-10220 |
T,2T#..TA1# |
2 | ||
| 16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER) | ||||
| 90460-22004 |
T,2T..TA1# |
2 | ||
| 96112-10220 |
T,2T#..TA1# |
2 | ||
| 16305 - OUTLET SUB-ASSY, WATER BY-PASS | ||||
| 16305-25010 |
T,2T..TA1# |
1 | ||
| 16347 - GASKET, WATER BY-PASS | ||||
| 16347-25010 |
T,2T..TA1# |
1 | ||
| 17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD) | ||||
| 90407-09045 |
T,2T#..TA1# |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-25903 |
T,2T..TA1# |
1 | ||
| 17101-25010 |
T,2T..TA1# |
1 | ||
| 17111A - PLUG, NO.1 | ||||
| 90072-34107 |
T,2T#..TA1# |
2 | ||
| 17111B - PLUG, NO.2 | ||||
| 90345-53007 |
T,2T..TA1# L/P.C.V. |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17104-25010 |
T,2T..TA1# |
1 | ||
| 17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR) | ||||
| 90116-08010 |
T,2T..TA1# L=39,S=13&13 |
4 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 92122-41022 |
T,2T#..TA1# |
3 | ||
| 90116-10019 |
T,2T..TA1# L=38,S=14&14 |
3 | ||
| 17153A - UNION(FOR AUTOMATIC CHOKE STOVE PIPE) | ||||
| 90402-18062 |
T,2T..TA1# |
1 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08015 |
T,2T#..TA1# L=37,S=13.5&13.5 |
13 | ||
| 90116-08296 |
T,2T#..TA1# L=34.5,S=12&19 |
4 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08015 |
T,2T#..TA1# L=37,S=13.5&13.5 |
13 | ||
| 90116-08296 |
T,2T#..TA1# L=34.5,S=12&19 |
4 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-25010 |
T,2T#..TA1# |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-25010 |
T,2T#..TA1# |
1 | ||
| 17205 - PIPE, AUTOMATIC CHOKE STOVE INLET | ||||
| 17253-25010 |
T,2T..TA1# |
1 | ||
| 17205A - HOSE(FOR AUTOMATIC CHOKE STOVE PIPE) | ||||
| 90445-11530 |
T,2T..TA1# |
1 | ||
| 17205F - CLAMP(FOR AUTOMATIC CHOKE STOVE INLET PIPE) | ||||
| 90461-06896 |
T,2T..TA1# |
1 | ||
| 90461-04551 |
T,2T..TA1# |
1 | ||
| 17205G - CLAMP, NO.2(FOR AUTOMATIC CHOKE STOVE INLET PIPE) | ||||
| 90461-04667 |
T,2T..TA1# |
1 | ||
| 90461-06895 |
T,2T..TA1# |
1 | ||
| 17206 - PIPE, AUTOMATIC CHOKE STOVE OUTLET | ||||
| 17206-25010 |
T,2T..TA1# |
1 | ||
| 17206A - CLAMP(FOR AUTOMATIC CHOKE STOVE OUTLET PIPE) | ||||
| 90461-05569 |
T,2T..TA1# |
1 | ||
| 17251 - PIPE,AUTOMATIC CHOKE STOVE | ||||
| 17204-25010 |
T,2T..TA1# |
1 | ||
| Common parts | ||||
| 90170-08046 | ||||
| 90461-05006 | ||||
| 91611-40825 | ||||
| 91621-40825 | ||||
| 91651-40816 | ||||
| 94110-40800 | ||||
| 94611-10800 | ||||
