TA12-K (1970)
Toyota Carina
(7012-7208)

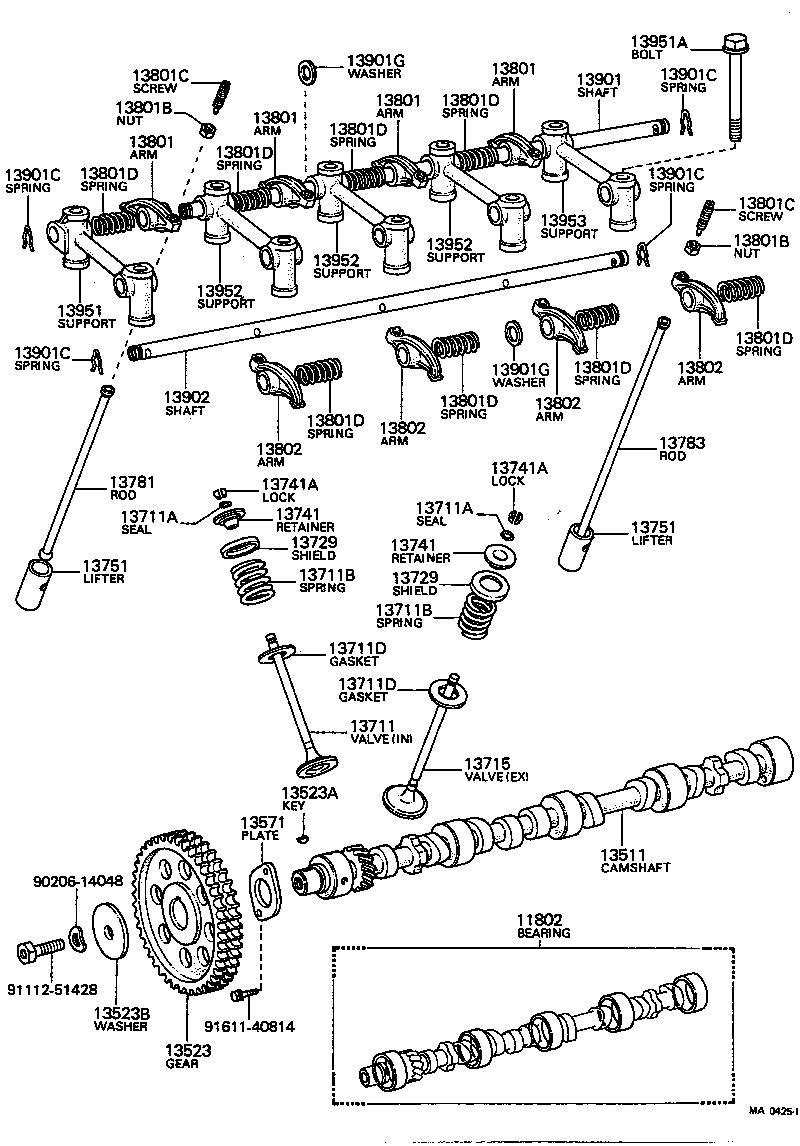

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11802 - BEARING SET, CAMSHAFT | ||||
| 11803-25010 |
T,2T#..TA1# U/S 0.125 |
1 | ||
| 11804-25010 |
T,2T#..TA1# U/S 0.25 |
1 | ||
| 11802-25010 |
T,2T#..TA1# STD |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13511-25010 |
2T#..TA12,14 |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13522-33010 |
T,2T#..TA1# N=36 |
1 | ||
| 13523A - KEY, WOODRUFF(FOR TIMING GEAR) | ||||
| 90280-05010 |
T,2T#..TA1# |
1 | ||
| 13523B - WASHER, PLATE(FOR TIMING GEAR) | ||||
| 90201-14293 |
T,2T#..TA1# |
1 | ||
| 13571 - PLATE, CAMSHAFT THRUST | ||||
| 13571-51010 |
T,2T#..TA1# |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-25010 |
T,2T..TA1# |
4 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90301-06096 |
T,2T..TA1# |
8 | ||
| 90913-02018 |
T,2T#..TA1# NOK |
8 | ||
| 90913-02019 |
T,2T#..TA1# ARAI |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90301-06096 |
T,2T..TA1# |
8 | ||
| 90913-02018 |
T,2T#..TA1# NOK |
8 | ||
| 90913-02019 |
T,2T#..TA1# ARAI |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-47540 |
T,2T#..TA1# WD=4.7,CW=5.75 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-47540 |
T,2T#..TA1# WD=4.7,CW=5.75 |
8 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-15387 |
T,2T#..TA1# |
8 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-15387 |
T,2T#..TA1# |
8 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-25010 |
T,2T..TA1# |
4 | ||
| 13729 - SHIELD, VALVE STEM OIL | ||||
| 13729-25010 |
T,2T..TA1# |
8 | ||
| 13729 - SHIELD, VALVE STEM OIL | ||||
| 13729-25010 |
T,2T..TA1# |
8 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-25011 |
T,2T#..TA1# |
8 | ||
| 13741-25010 |
T,2T..TA1# |
8 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-25011 |
T,2T#..TA1# |
8 | ||
| 13741-25010 |
T,2T..TA1# |
8 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03005 |
T,2T#..TA1# |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03005 |
T,2T#..TA1# |
16 | ||
| 13751 - LIFTER, VALVE | ||||
| 13755-25010 |
T,2T#..TA1# O/S 0.05 |
8 | ||
| 13751-44011 |
T,2T#..TA1# STD |
8 | ||
| 13755-44011 |
T,2T#..TA1# O/S 0.05 |
8 | ||
| 13751 - LIFTER, VALVE | ||||
| 13755-25010 |
T,2T#..TA1# O/S 0.05 |
8 | ||
| 13751-44011 |
T,2T#..TA1# STD |
8 | ||
| 13755-44011 |
T,2T#..TA1# O/S 0.05 |
8 | ||
| 13781 - ROD, VALVE PUSH | ||||
| 13781-25010 |
T,2T#..TA1# |
4 | ||
| 13783 - ROD, VALVE PUSH, NO.2 | ||||
| 13783-25010 |
T,2T#..TA1# |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-25010 |
T,2T..TA1# |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-25010 |
T,2T..TA1# |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-25010 |
T,2T..TA1# |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-25010 |
T,2T..TA1# |
4 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90170-08094 |
T,2T#..TA1# |
8 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90170-08094 |
T,2T#..TA1# |
8 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90913-05013 |
T,2T#..TA1# |
8 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90913-05013 |
T,2T#..TA1# |
8 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-14292 |
T,2T#..TA1# WD=1.4,CW=8.5 |
8 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-14292 |
T,2T#..TA1# WD=1.4,CW=8.5 |
8 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-14292 |
T,2T#..TA1# WD=1.4,CW=8.5 |
8 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-14292 |
T,2T#..TA1# WD=1.4,CW=8.5 |
8 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-14292 |
T,2T#..TA1# WD=1.4,CW=8.5 |
8 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-14292 |
T,2T#..TA1# WD=1.4,CW=8.5 |
8 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-14292 |
T,2T#..TA1# WD=1.4,CW=8.5 |
8 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-14292 |
T,2T#..TA1# WD=1.4,CW=8.5 |
8 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-25010 |
T,2T#..TA1# |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-25010 |
T,2T#..TA1# |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-25010 |
T,2T#..TA1# |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-25010 |
T,2T#..TA1# |
4 | ||
| 13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13901-25010 |
T,2T#..TA1# |
1 | ||
| 13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT) | ||||
| 90524-13009 |
T,2T#..TA1# |
4 | ||
| 13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT) | ||||
| 90524-13009 |
T,2T#..TA1# |
4 | ||
| 13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT) | ||||
| 90524-13009 |
T,2T#..TA1# |
4 | ||
| 13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT) | ||||
| 90524-13009 |
T,2T#..TA1# |
4 | ||
| 13901G - WASHER, ROCKER SHAFT | ||||
| 90201-16172 |
T,2T#..TA1# |
2 | ||
| 13901G - WASHER, ROCKER SHAFT | ||||
| 90201-16172 |
T,2T#..TA1# |
2 | ||
| 13902 - SHAFT SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13902-25010 |
T,2T#..TA1# |
1 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-25010 |
T,2T#..TA1# |
1 | ||
| 13951A - BOLT(FOR ROCKER SUPPORT SET) | ||||
| 90910-02040 |
T,2T#..TA1# 12-1.25PX168-24 |
10 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-25010 |
T,2T#..TA1# |
3 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-25010 |
T,2T#..TA1# |
3 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-25010 |
T,2T#..TA1# |
3 | ||
| 13953 - SUPPORT, VALVE ROCKER, NO.3 | ||||
| 13953-25010 |
T,2T#..TA1# |
1 | ||
| Common parts | ||||
| 90206-14048 | ||||
| 91112-51428 | ||||
| 91611-40814 | ||||
