TA12-HF (1970)

Toyota Carina

Production Dec 1970 - Sep 1975
Engine 2T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7509)

Click highlighted areas on diagram

diagram 87104 87105 87127 8712914010 87138 8715 8715 87188 88910 9009902133 9009902134 9009902135 9009906020 9010106255 9017906070 9111140614 9111140620 9165640820 9411540500 9461110600
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-14010

TA1#..RHD

 1
87104-22010

TA1#..RHD

W/BOOST VENTILATOR OR COOLER

 1
87104-20060

TA12..RHD

W/BOOST VENTILATOR OR COOLER

 1
87104-14011

TA12..RHD

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-22010

TA1#..RHD

 1
87127 - PACKING, HEATER AIR DAMPER
87127-22010

TA1#

 1
87138 - RESISTOR, HEATER BLOWER
87138-14010

TA1#

 1
87138-22010

TA1#

 1
87188 - PACKING, HEATER BLOWER MOTOR
87128-22010

TA1#

 1
88910 - VENTILATOR ASSY, BOOST
88910-20010

TA1#..RHD

 1
88910-14050

TA12..RHD

 1
Common parts
87129-14010
90099-02133
90099-02134
90099-02135
90099-06020
90101-06255
90179-06070
91111-40614
91111-40620
91656-40820
94115-40500
94611-10600
Linked diagrams
8715

(7012-7509)RHD

Click highlighted areas on diagram

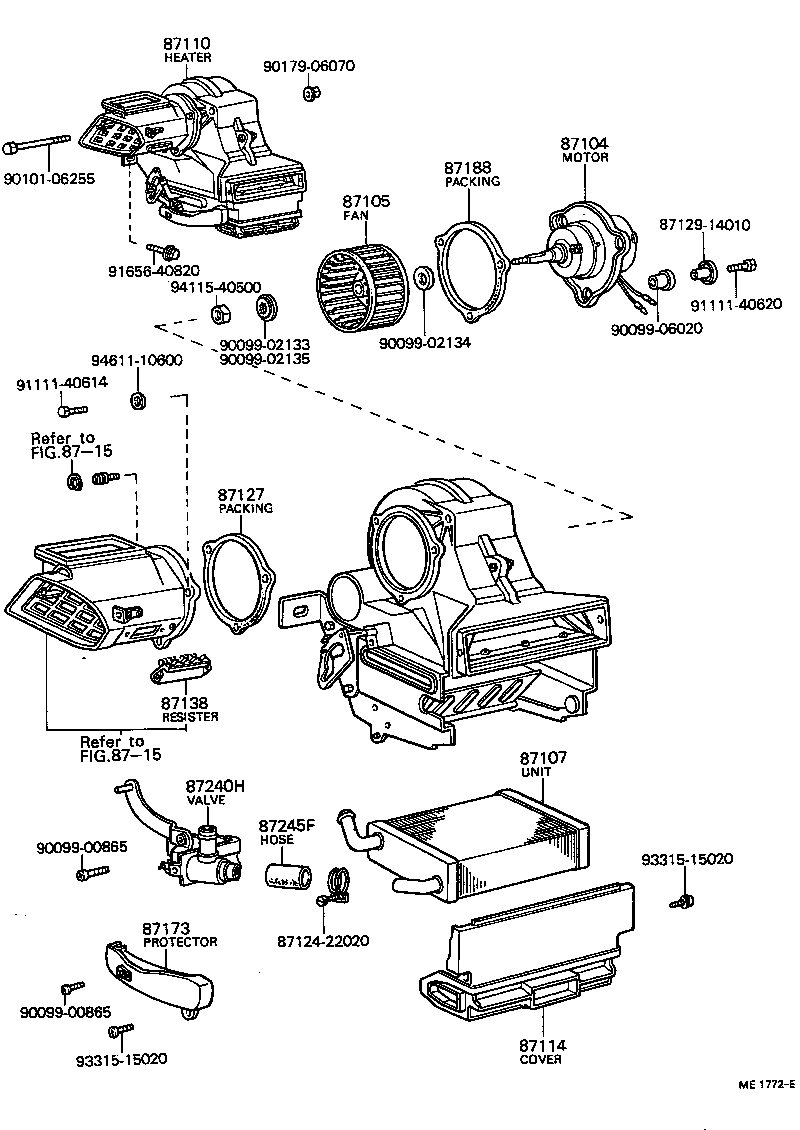

diagram 87104 87105 87107 87110 87114 8712422020 87127 8712914010 87138 8715 8715 87173 87188 87240H 87245F 9009900865 9009900865 9009902133 9009902134 9009902135 9009906020 9010106255 9017906070 9111140614 9111140620 9165640820 9331515020 9331515020 9411540500 9461110600
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-14010

TA1#..RHD

 1
87104-22010

TA1#..RHD

W/BOOST VENTILATOR OR COOLER

 1
87104-20060

TA12..RHD

W/BOOST VENTILATOR OR COOLER

 1
87104-14011

TA12..RHD

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-22010

TA1#..RHD

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-14040

TA1#

HEAVY DUTY HEATER

 1
87107-14010

TA1#

 1
87110 - HEATER ASSY
87110-14010

TA1#..RHD

 1
87110-14011

TA1#..RHD

 1
87110-14012

TA1#..RHD

 1
87110-14013

TA12..RHD

 1
87114 - COVER, HEATER
87114-14010

TA1#

 1
87114-14020

TA1#

FOR REAR DUCT

 1
87127 - PACKING, HEATER AIR DAMPER
87127-22010

TA1#

 1
87138 - RESISTOR, HEATER BLOWER
87138-14010

TA1#

 1
87138-22010

TA1#

 1
87173 - PROTECTOR, WATER VALVE, HEATER
87173-14010

TA1#

 1
87115-14010

TA1#

 1
87173-14010

TA12..RHD

 1
87188 - PACKING, HEATER BLOWER MOTOR
87128-22010

TA1#

 1
87240H - VALVE ASSY, WATER UNIT
87240-14010

TA1#..RHD

 1
87240-14011

TA1#..RHD

 1
87240-14012

TA1#..RHD

 1
87240-14010

TA1#

 1
87245F - HOSE, HEATER WATER, INLET F
99552-30055

TA1#

L=55

 2
Common parts
87124-22020
87129-14010
90099-00865
90099-02133
90099-02134
90099-02135
90099-06020
90101-06255
90179-06070
91111-40614
91111-40620
91656-40820
93315-15020
94115-40500
94611-10600
Linked diagrams
8715
