TA12-HD (1970)
Toyota Carina
Production
Dec 1970
-
Sep 1975
Engine
2T
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7012-7707)3FC

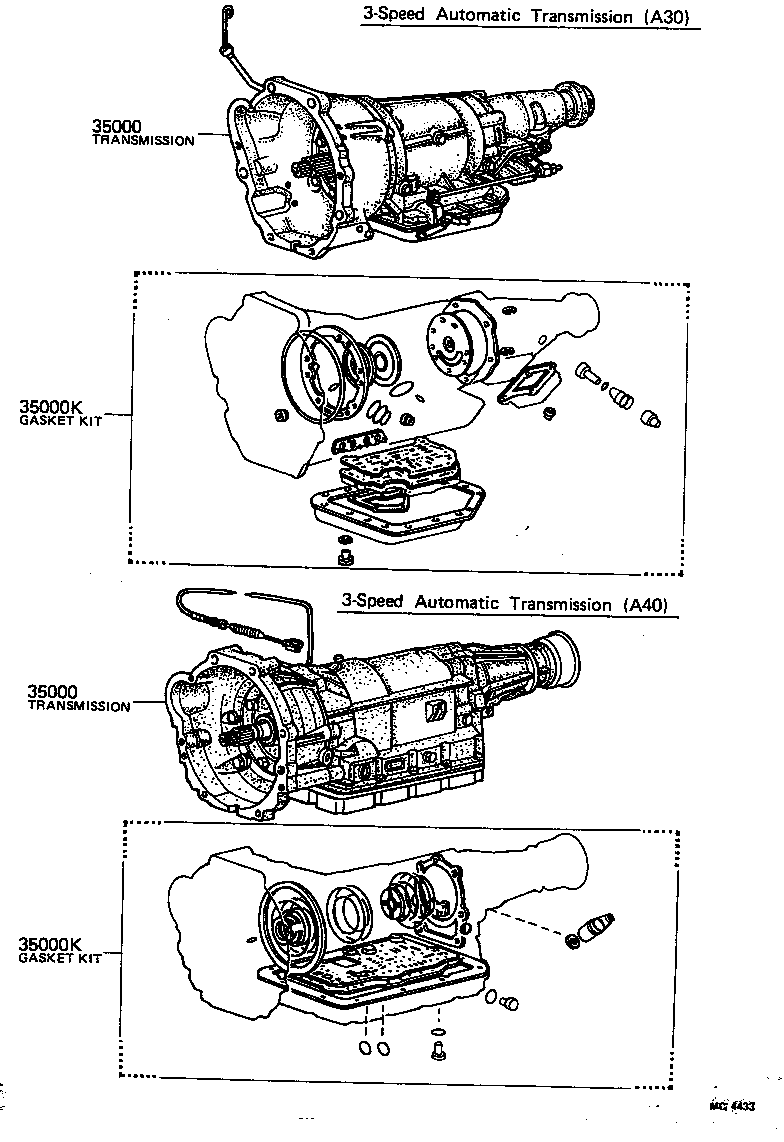

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35000 - TRANSMISSION ASSY, AUTOMATIC | ||||
| 35000-14090 |
TA12..3FC SMG.R=17:5 |
1 | ||
| 35000-14010 |
TA12..3FC SMG.R=17:5 |
1 | ||
| 35000-14081 |
TA12..3FC SMG.R=18:5 |
1 | ||
| 35000-14030 |
TA12..3FC SMG.R=19:5 |
1 | ||
| 35000-14091 |
TA12..3FC SMG.R=17:5 |
1 | ||
| 35000-14080 |
TA12..3FC SMG.R=18:5 |
1 | ||
| 35000 - TRANSMISSION ASSY, AUTOMATIC | ||||
| 35000-14090 |
TA12..3FC SMG.R=17:5 |
1 | ||
| 35000-14010 |
TA12..3FC SMG.R=17:5 |
1 | ||
| 35000-14081 |
TA12..3FC SMG.R=18:5 |
1 | ||
| 35000-14030 |
TA12..3FC SMG.R=19:5 |
1 | ||
| 35000-14091 |
TA12..3FC SMG.R=17:5 |
1 | ||
| 35000-14080 |
TA12..3FC SMG.R=18:5 |
1 | ||
| 35000K - GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL | ||||
| 04351-30024 |
TA12..3FC |
1 | ||
| 35000K - GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL | ||||
| 04351-30024 |
TA12..3FC |
1 | ||
