TA10L-KF (1970)

Toyota Carina

Production Dec 1970 - Jul 1972
Engine T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7103)

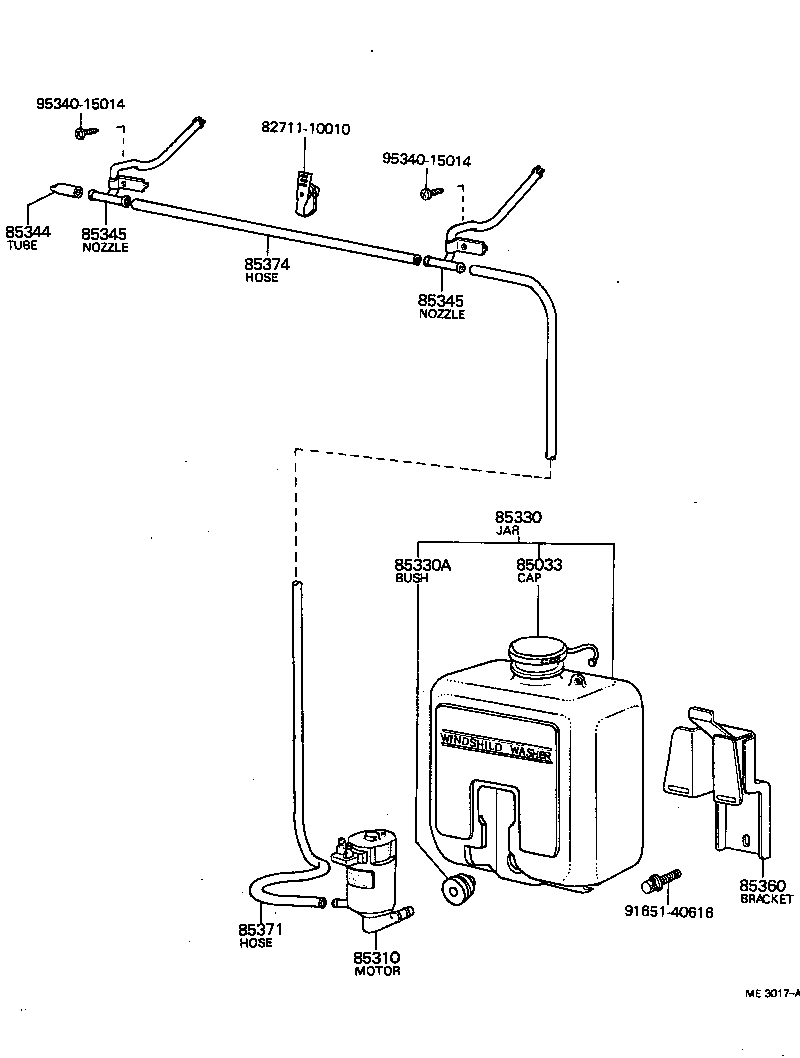

Click highlighted areas on diagram

diagram 8271110010 85033 85310 85330 85330A 85344 85345 85345 85360 85371 85374 9165140616 9534015014 9534015014
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85033-20070

TA1#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-12020

TA1#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-12020

TA1#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32057

TA1#

 1
85344 - TUBE, WINDSHIELD WASHER HOSE, STOP
85344-30010

TA1#

 2
85345 - NOZZLE, WINDSHIELD WASHER
85341-20070

TA1#

 2
85345 - NOZZLE, WINDSHIELD WASHER
85341-20070

TA1#

 2
85360 - BRACKET ASSY, WINDSHIELD WASHER
85361-14010

TA1#..LHD

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-06286

TA1#

*H,L=400

 1
90099-33259

TA1#

L=620

 1
85374 - HOSE, WINDSHIELD WASHER (FROM NOZZLE TO NOZZLE)
90099-33215

TA1#

*H,L=540

 1
Common parts
82711-10010
91651-40616
95340-15014
