TA10L-KF (1970)

Toyota Carina

Production Dec 1970 - Jul 1972
Engine T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7509)

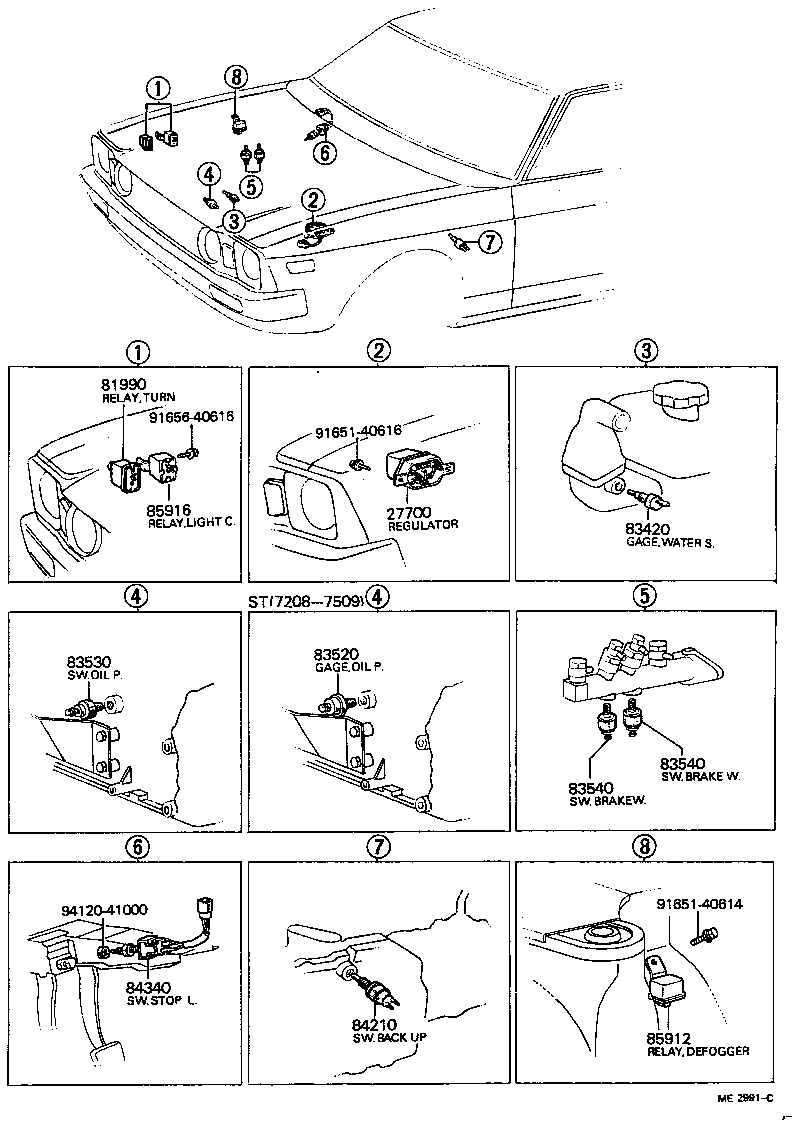

Click highlighted areas on diagram

diagram 27700 81990 83420 83520 83530 83540 83540 84210 84340 85912 85916 9165140614 9165140616 9165640616 9412041000
Part # Description Qty Price
27700 - REGULATOR ASSY, GENERATOR
27700-33010

T,2T#..TA1#

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-12010

TA1#

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-12020

TA1#

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-10051

TA1#..MTM

 1
84340 - SWITCH ASSY, STOP LAMP
84340-10012

TA1#

FOR SINGLE M/C.

 1
Common parts
91651-40614
91651-40616
91656-40616
94120-41000

(7012-7509)

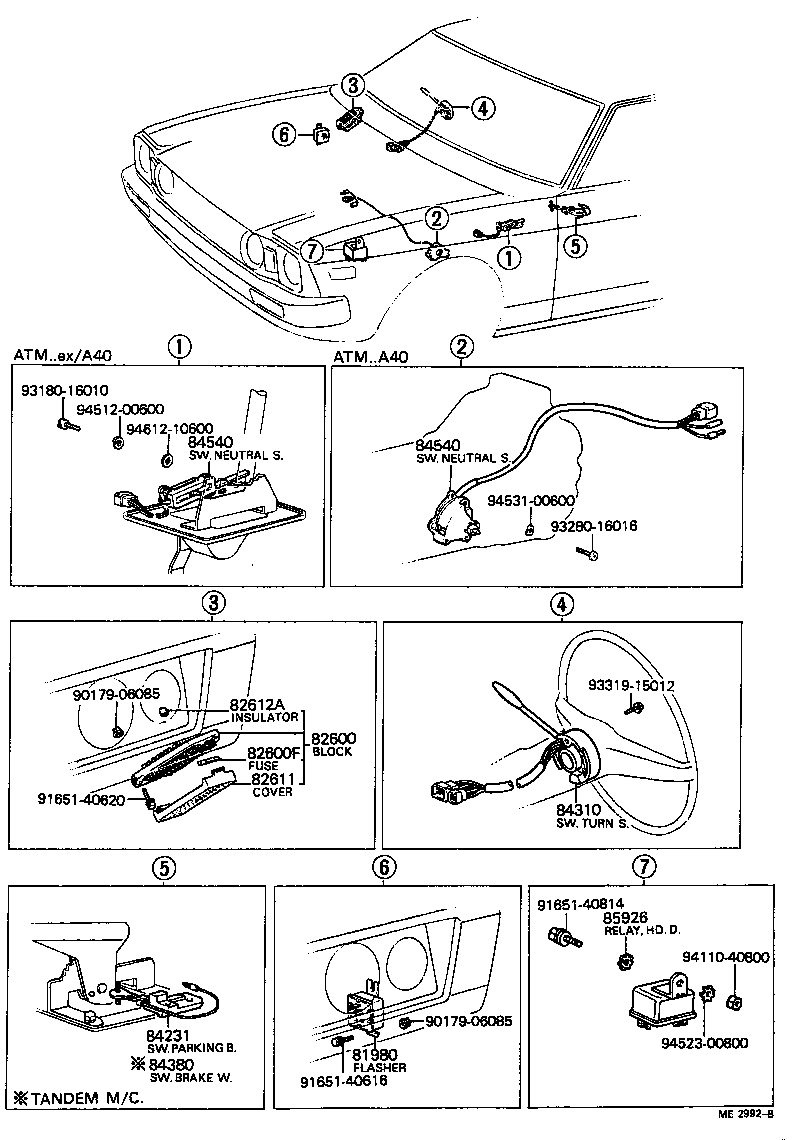

Click highlighted areas on diagram

diagram 81980 82600 82600F 82611 82612A 84231 84310 84380 84540 84540 85926 9017906085 9017906085 9165140616 9165140620 9165140814 9318016010 9328016016 9331915012 9411040800 9451200600 9452300800 9453100600 9461210600
Part # Description Qty Price
81980 - FLASHER ASSY, TURN SIGNAL
81980-20070

TA1#

 1
81980-20080

TA1#

EUR.SPEC.

 1
82600 - BLOCK ASSY, FUSE
82600-20020

TA1#

 1
82600F - FUSE, FUSE BLOCK
99118-62910

TA1#

10A

 6
99118-62915

TA1#

15A,15A

 6
99118-62920

TA1#

20A,20A

 4
82611 - COVER, FUSE BLOCK
82611-20020

TA1#

 1
82612A - INSULATOR, FUSE BLOCK TERMINAL, B
82612-22020

TA1#

 2
84231 - SWITCH ASSY, COURTESY LAMP (FOR PARKING BRAKE)
84380-14010

TA1#

FOR SINGLE M/C.

 1
84310 - SWITCH ASSY, TURN SIGNAL
84310-20082

TA1#..LHD

 1
84310-20101

TA1#..LHD

EUR.SPEC.

 1
Common parts
90179-06085
91651-40616
91651-40620
91651-40814
93180-16010
93280-16016
93319-15012
94110-40800
94512-00600
94523-00800
94531-00600
94612-10600

(7012-7509)

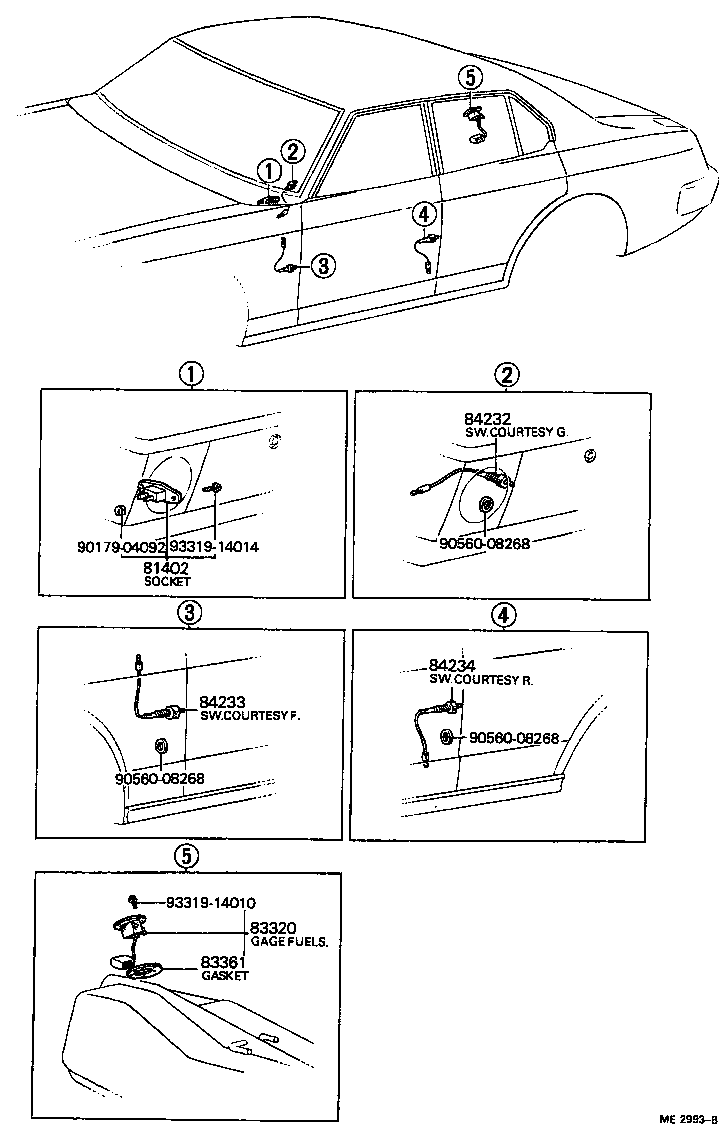

Click highlighted areas on diagram

diagram 81402 83320 83361 84232 84233 84234 9017904092 9056008268 9056008268 9056008268 9331914010 9331914014
Part # Description Qty Price
83320 - GAGE ASSY, FUEL SENDER
83320-19145

TA1#

 1
83361 - GASKET, FUEL SENDER GAGE
83361-20030

TA1#

 1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84230-20020

TA1#

 2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84230-20020

TA1#..4D

 2
Common parts
90179-04092
90560-08268
93319-14010
93319-14014

(7012-7207)

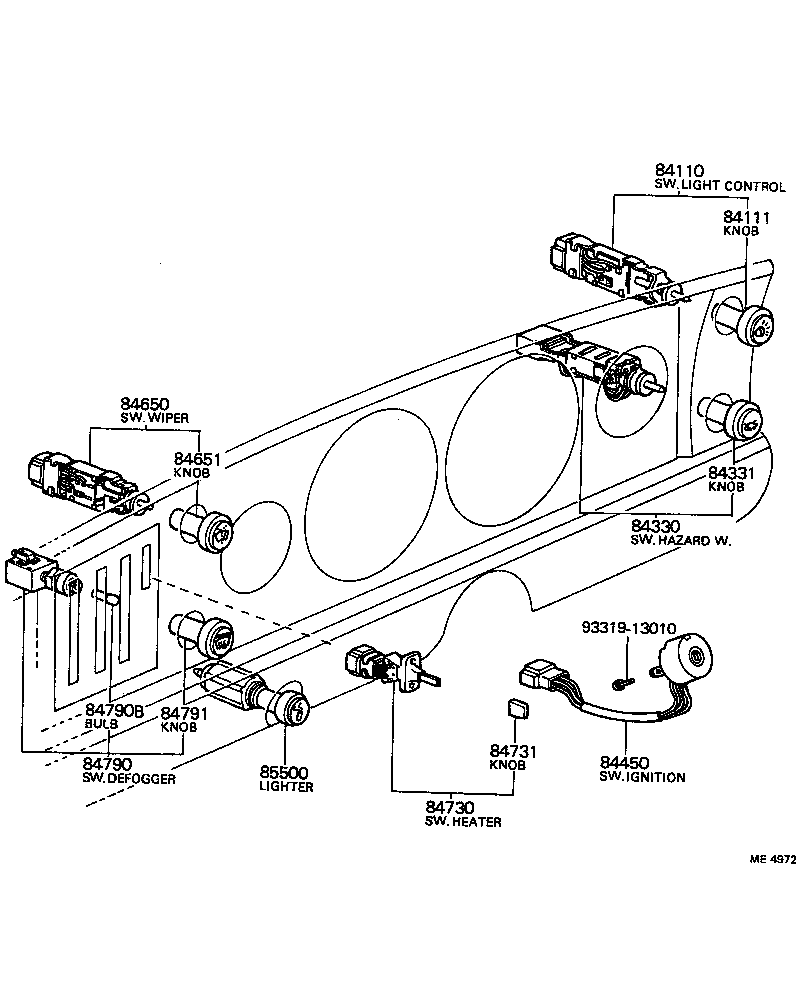

Click highlighted areas on diagram

diagram 84110 84111 84330 84331 84450 84650 84651 84730 84731 84790 84790B 84791 85500 9331913010
Part # Description Qty Price
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84110-14011

TA1#

 1
84110-14010

TA1#

 1
84111 - KNOB, LIGHT CONTROL SWITCH
84111-14011

TA1#

 1
84111-14010

TA1#

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84330-20031

TA1#

 1
84330-14050

TA1#

 1
84331 - KNOB, HAZARD WARNING SIGNAL SWITCH
84331-14030

TA1#

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-20070

TA1#

 1
84450-20100

TA1#..LHD

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84650-14011

TA1#

 1
84650-14010

TA1#

 1
84651 - KNOB, WINDSHIELD WIPER SWITCH
84651-14011

TA1#

 1
84651-14010

TA1#

 1
84730 - SWITCH ASSY, HEATER BLOWER
84730-20040

TA1#..LHD

 1
84731 - KNOB, HEATER BLOWER SWITCH
84731-20010

TA1#

 1
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-14021

TA1#

 1
84790-14020

TA1#

 1
84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH)
90981-11009

TA1#

12V 1.5W

 1
84791 - KNOB, REAR WINDOW DEFOGGER SWITCH
84791-20010

TA1#

 1
84791-20011

TA1#

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-14010

TA1#

 1
85500-14011

TA1#

 1
Common parts
93319-13010
