TA10L-KF (1970)

Toyota Carina

Production Dec 1970 - Jul 1972
Engine T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7509)

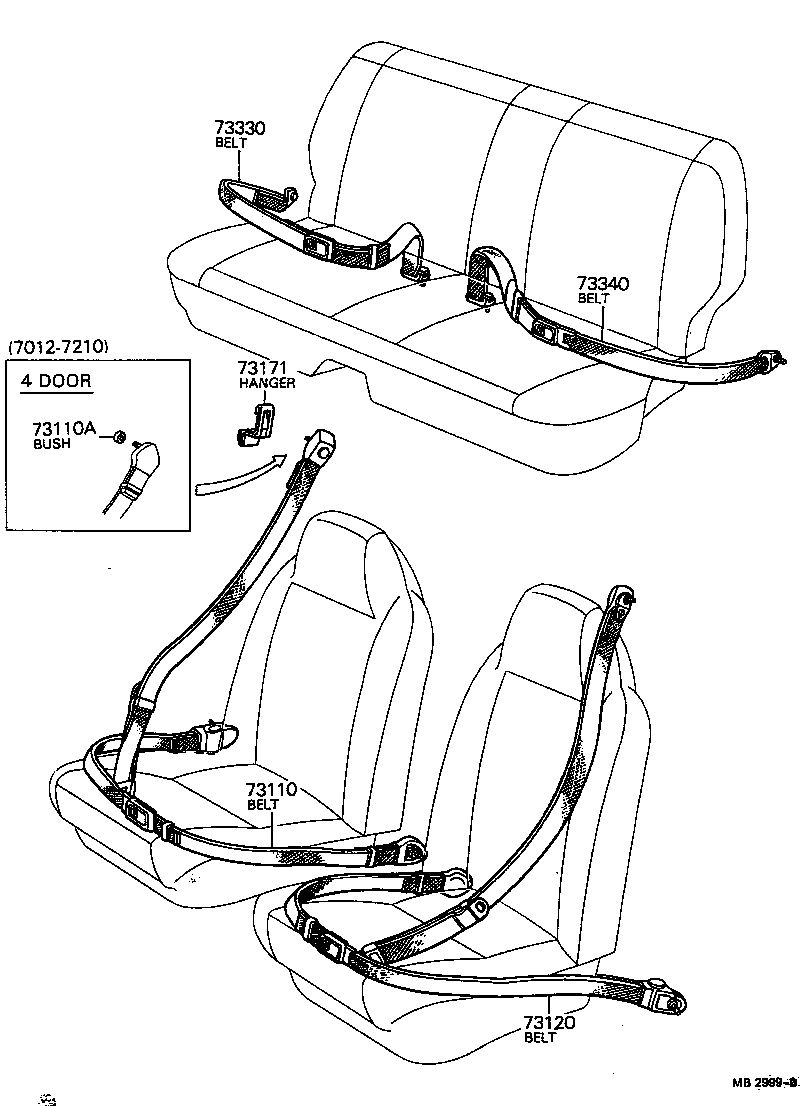

Click highlighted areas on diagram

diagram 73110 73110A 73120 73171 73330 73340
Part # Description Qty Price
73110 - BELT ASSY, FRONT SEAT 3 POINT TYPE, RH
71910-1405101

TA1#

BLACK,BLACK,TRIM2#

 1
71910-1405001

TA1#

BLACK,BLACK,TRIM2#

 1
73110A - BUSH (FOR FRONT SEAT 3 POINT TYPE BELT)
90386-11149

TA1#..4D

 2
73120 - BELT ASSY, FRONT SEAT 3 POINT TYPE, LH
71910-1405101

TA1#

BLACK,BLACK,TRIM2#

 1
71910-1405001

TA1#

BLACK,BLACK,TRIM2#

 1
73330 - BELT ASSY, REAR SEAT LAP TYPE, RH
71930-1401001

TA1#

BLACK,BLACK,TRIM2#

 1
73340 - BELT ASSY, REAR SEAT LAP TYPE, LH
71930-1401001

TA1#

BLACK,BLACK,TRIM2#

 1
