TA10L-KF (1970)
Toyota Carina
Production
Dec 1970
-
Jul 1972
Engine
T
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7012-7707)

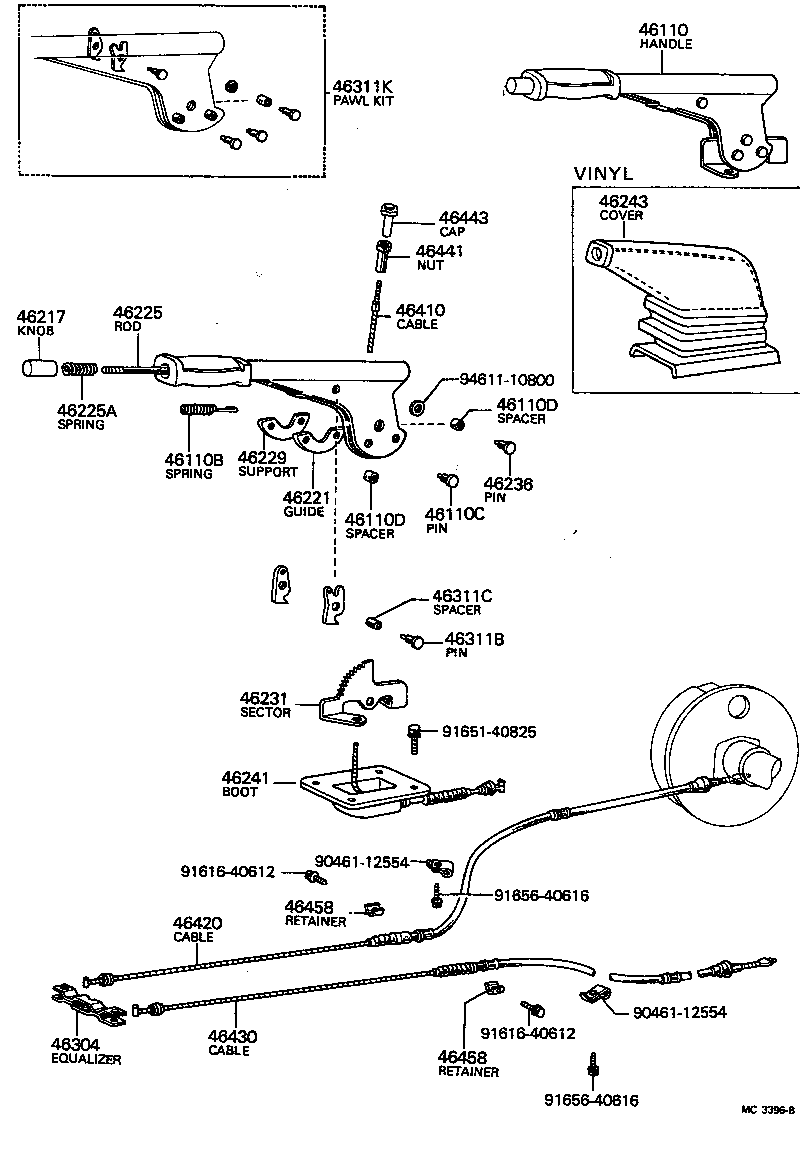

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46110 - HANDLE ASSY, PARKING BRAKE CONTROL | ||||
| 46201-14010 |
TA1# |
1 | ||
| 46110B - SPRING, TENSION(FOR PARKING BRAKE HANDLE) | ||||
| 90507-08001 |
TA1# |
1 | ||
| 46110C - PIN(FOR PARKING BRAKE HANDLE SET) | ||||
| 90243-06018 |
TA1# |
2 | ||
| 46110D - SPACER(FOR PARKING BRAKE HANDLE) | ||||
| 90560-06201 |
TA1# L=6,ID=6.7 |
2 | ||
| 90560-10200 |
TA1# L=6.2,ID=10 |
1 | ||
| 46110D - SPACER(FOR PARKING BRAKE HANDLE) | ||||
| 90560-06201 |
TA1# L=6,ID=6.7 |
2 | ||
| 90560-10200 |
TA1# L=6.2,ID=10 |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-10013 |
TA1# |
1 | ||
| 46221 - GUIDE, PARKING BRAKE CABLE | ||||
| 46221-12010 |
TA1# |
1 | ||
| 46225 - ROD, PARKING BRAKE PAWL RELEASE | ||||
| 46225-12012 |
TA1# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-12160 |
TA1# |
1 | ||
| 46229 - SUPPORT, PARKING BRAKE CABLE GUIDE | ||||
| 46229-12010 |
TA1# |
1 | ||
| 46231 - SECTOR, PARKING BRAKE LEVER | ||||
| 46231-14010 |
TA1# |
1 | ||
| 46236 - PIN, LEVER PIVOT | ||||
| 46236-12010 |
TA1# |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-14010 |
TA1# |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-12010 |
TA1# |
1 | ||
| 46311B - PIN, PARKING BRAKE PAWL PIVOT | ||||
| 90243-06017 |
TA1# |
1 | ||
| 46311C - SPACER(FOR PARKING BRAKE PAWL PIVOT) | ||||
| 90560-06195 |
TA1# |
1 | ||
| 46311K - PAWL KIT, PARKING BRAKE | ||||
| 04461-12010 |
TA1# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-14020 |
TA1# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-14020 |
TA1# |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-14020 |
TA1# |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-14010 |
TA1# |
1 | ||
| 46443 - CAP, CABLE ADJUSTING | ||||
| 46443-14010 |
TA1# |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-20020 |
TA1# |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-20020 |
TA1# |
2 | ||
| Common parts | ||||
| 90461-12554 | ||||
| 91616-40612 | ||||
| 91651-40825 | ||||
| 91656-40616 | ||||
| 94611-10800 | ||||
