TA10L-KF (1970)
Toyota Carina
Production
Dec 1970
-
Jul 1972
Engine
T
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7012-7509)

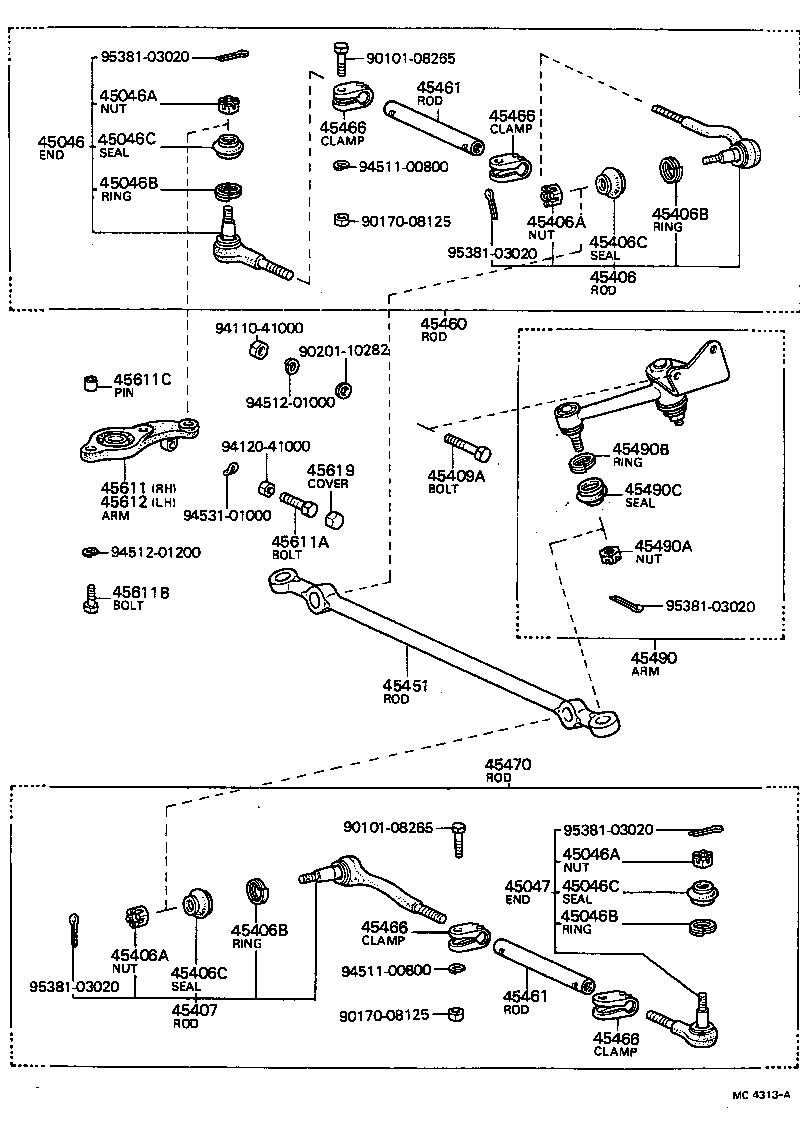

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-19065 |
TA1# |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
TA1# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
TA1# |
2 | ||
| 45046B - RING, SET(FOR TIE ROD END DUST SEAL) | ||||
| 90467-27072 |
TA1# |
2 | ||
| 45046B - RING, SET(FOR TIE ROD END DUST SEAL) | ||||
| 90467-27072 |
TA1# |
2 | ||
| 45046C - SEAL, DUST(FOR TIE ROD END) | ||||
| 45479-22011 |
TA1# |
2 | ||
| 45046C - SEAL, DUST(FOR TIE ROD END) | ||||
| 45479-22011 |
TA1# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19065 |
TA1# |
1 | ||
| 45406 - ROD SUB-ASSY, TIE, RH | ||||
| 45406-19015 |
TA1# |
1 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-12028 |
TA1# |
2 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-12028 |
TA1# |
2 | ||
| 45406B - RING, SET(FOR TIE ROD DUST SEAL) | ||||
| 90467-27072 |
TA1# |
2 | ||
| 45406B - RING, SET(FOR TIE ROD DUST SEAL) | ||||
| 90467-27072 |
TA1# |
2 | ||
| 45406C - SEAL, DUST(FOR TIE ROD) | ||||
| 45479-22011 |
TA1# |
2 | ||
| 45406C - SEAL, DUST(FOR TIE ROD) | ||||
| 45479-22011 |
TA1# |
2 | ||
| 45407 - ROD SUB-ASSY, TIE, LH | ||||
| 45406-19015 |
TA1# |
1 | ||
| 45409A - BOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING) | ||||
| 91121-51071 |
TA1# |
2 | ||
| 45451 - ROD, STEERING RELAY | ||||
| 45451-14010 |
TA1# |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-19055 |
TA1# |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-22010 |
TA1# |
2 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-22010 |
TA1# |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
TA1# |
4 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
TA1# |
4 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
TA1# |
4 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
TA1# |
4 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-19055 |
TA1# |
1 | ||
| 45490 - ARM ASSY, STEERING IDLER | ||||
| 45490-19115 |
TA1#..LHD |
1 | ||
| 45490A - NUT, CASTLE(FOR IDLER ARM) | ||||
| 90171-12028 |
TA1# |
1 | ||
| 45490B - RING, SET(FOR IDLER ARM) | ||||
| 90522-34014 |
TA1# |
1 | ||
| 45490C - SEAL, DUST(FOR IDLER ARM) | ||||
| 45481-21011 |
TA1# |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-14010 |
TA1# |
1 | ||
| 45611A - BOLT, KNUCKLE STOPPER | ||||
| 90106-10006 |
TA1# |
2 | ||
| 45611B - BOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90101-12295 |
TA1# |
4 | ||
| 45611C - PIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90253-15016 |
TA1# |
4 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-14010 |
TA1# |
1 | ||
| Common parts | ||||
| 90101-08265 | ||||
| 90170-08125 | ||||
| 90201-10282 | ||||
| 94110-41000 | ||||
| 94120-41000 | ||||
| 94511-00800 | ||||
| 94512-01000 | ||||
| 94512-01200 | ||||
| 94531-01000 | ||||
| 95381-03020 | ||||
