TA10L-KF (1970)

Toyota Carina

Production Dec 1970 - Jul 1972
Engine T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7707)MTM

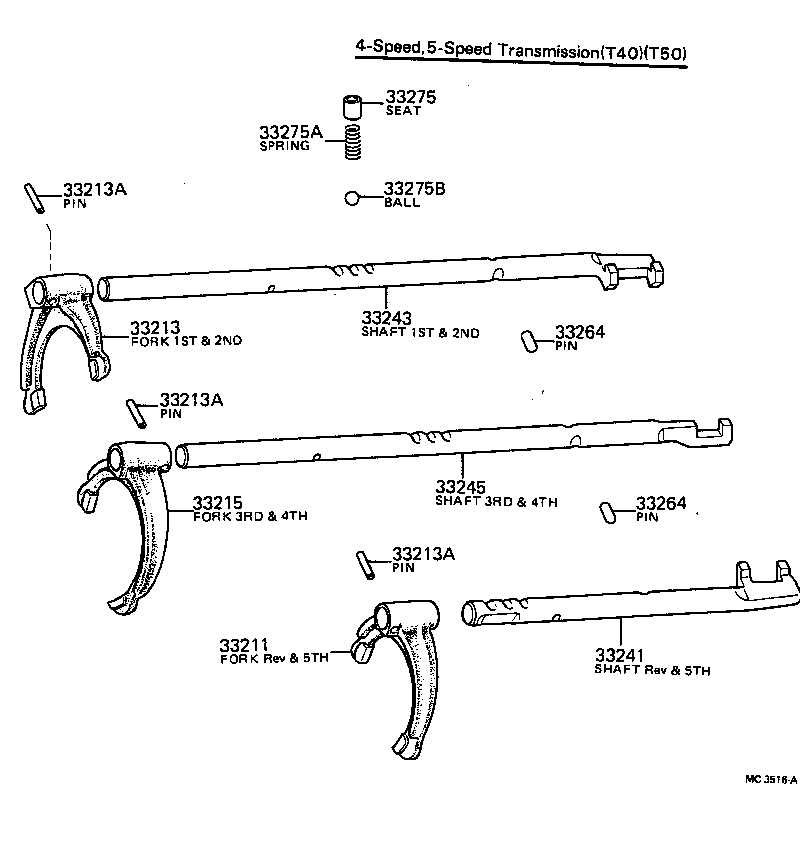

Click highlighted areas on diagram

diagram 33211 33213 33213A 33213A 33213A 33215 33241 33243 33245 33264 33264 33275 33275A 33275B
Part # Description Qty Price
33211 - FORK, REVERSE SHIFT
33214-14010

TA1#..MTM

 1
33213 - FORK, 1ST & 2ND SHIFT
33212-14010

TA1#..MTM

 1
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05001

TA1#..MTM

 3
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05001

TA1#..MTM

 3
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05001

TA1#..MTM

 3
33215 - FORK, 3RD & 4TH SHIFT
33213-14010

TA1#..MTM

 1
33241 - SHAFT, REVERSE SHIFT FORK
33244-14010

TA1#..MTM

 1
33243 - SHAFT, 1ST & 2ND SHIFT FORK
33242-14010

TA1#..MTM

 1
33245 - SHAFT, 3RD & 4TH SHIFT FORK
33243-14010

TA1#..MTM

 1
33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1
90250-06188

TA1#..MTM

L=10.8,OD=6

 2
33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1
90250-06188

TA1#..MTM

L=10.8,OD=6

 2
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
33275-12010

TA1#..MTM

 3
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-14237

TA1#..MTM

L=16.1,WD=1.4,CW=7

 3
33275B - BALL, SHAFT DETENT
90360-10003

TA1#..MTM

 3
