TA10L-KDF (1972)

Toyota Carina

Production Aug 1972 - Sep 1975
Engine T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7707)

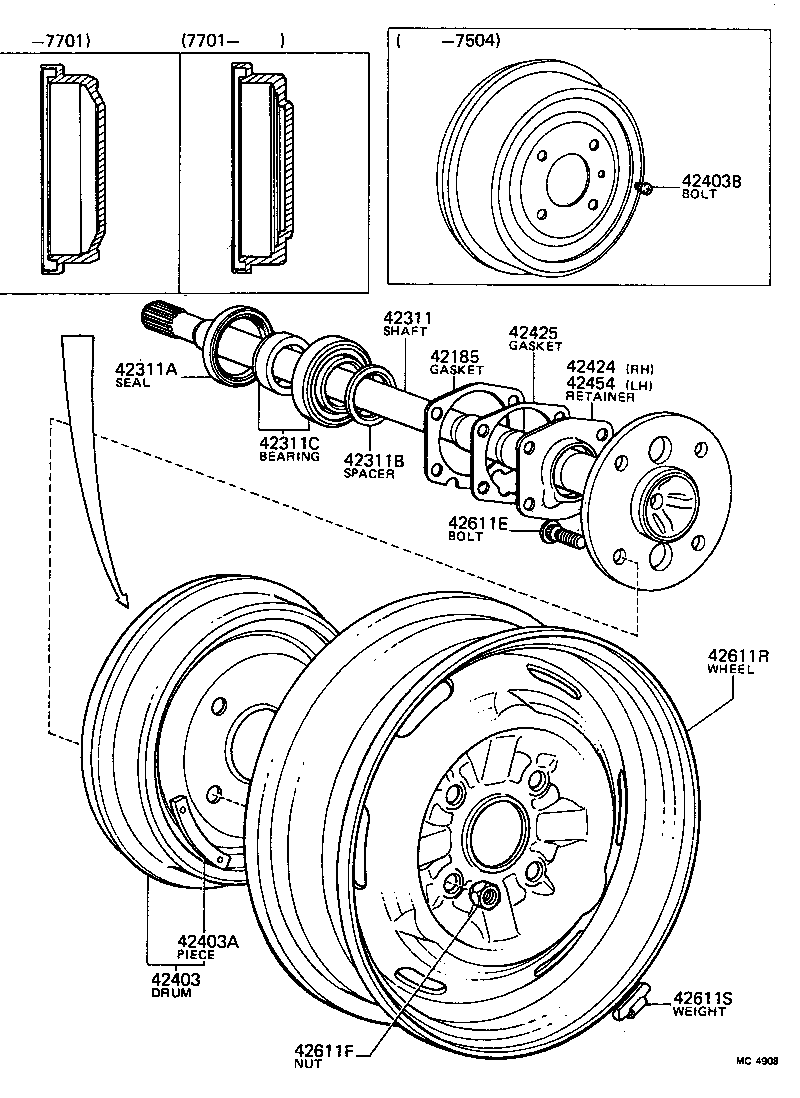

Click highlighted areas on diagram

diagram 42185 42311 42311A 42311B 42311C 42403 42403A 42403B 42424 42425 42454 42611E 42611F 42611R 42611S
Part # Description Qty Price
42185 - GASKET, REAR AXLE HOUSING END
42187-20010

TA1#

T=0.6

 2
42186-20010

TA1#

T=0.5

 2
42185-22010

TA1#

T=0.6

 2
42185-20010

TA1#

T=0.3

 2
42185-12010

TA1#

T=0.3

 2
42311 - SHAFT, REAR AXLE
42311-20042

TA1#

 2
42311-20041

TA1#

 2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90311-42055

TA1#

TB 42 55 7X3

 2
42311B - SPACER (FOR REAR AXLE SHAFT BEARING)
90560-30152

TA1#

 2
42311C - BEARING (FOR REAR AXLE SHAFT)
04421-20010

TA1#

NSK

 2
04421-12010

TA1#

KOYO

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-14030

TA1#

 2
42431-14010

TA1#

 2
42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM)
90937-01141

TA1#

20G.

 2
90937-01117

TA1#

10G,10G.

 2
90937-01145

TA1#

10G,60G.

 2
90937-01144

TA1#

50G.

 2
90937-01143

TA1#

40G.

 2
90937-01142

TA1#

30G.

 2
42403B - BOLT, SET (FOR REAR BRAKE DRUM SETTING)
90113-10007

TA1#

 2
42424 - RETAINER, REAR AXLE BEARING, OUTER, RH
42424-20010

TA1#

 1
42425 - GASKET, REAR AXLE BEARING RETAINER
42425-20010

TA1#

 2
42454 - RETAINER, REAR AXLE BEARING, OUTER, LH
42454-20010

TA1#

 1
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02021

TA1#

 8
42611F - NUT, HUB (FOR REAR AXLE)
90942-01007

TA10,12

 8
42611R - WHEEL, DISC(FOR REAR)
42611-20060

TA1#..DLX,STD

4J-13

 2
42611-22010

TA1#

 2
42611-20040

TA1#

4J-13

 2
42611-20050

TA1#..DLX,STD

4J-13

 2
42611-14120

TA1#..DLX,STD

4.5J-13,FOR TUBELESS

 2
42611-22090

TA1#

4.5J-13,FOR W/TUBE

 2
42611-14130

TA1#..DLX,STD

4.5J-13,FOR W/TUBE

 2
42611-22080

TA1#..DLX,STD

4.5J-13,FOR TUBELESS

 2
42611S - WEIGHT, BALANCE(FOR REAR DISC WHEEL)
90942-03031

TA1#

80G.

 1
90942-03022

TA1#

40G.

 1
90942-03041

TA1#

10G.

 1
90942-03017

TA1#

20G.

 1
90942-03020

TA1#

30G.

 1
90942-03029

TA1#

70G.

 1
90942-03025

TA1#

50G.

 1
90942-03027

TA1#

60G.

 1
