TA10L-K (1970)

Toyota Carina

Production Dec 1970 - Jul 1972
Engine T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7509) ; (7510-7707)RHD

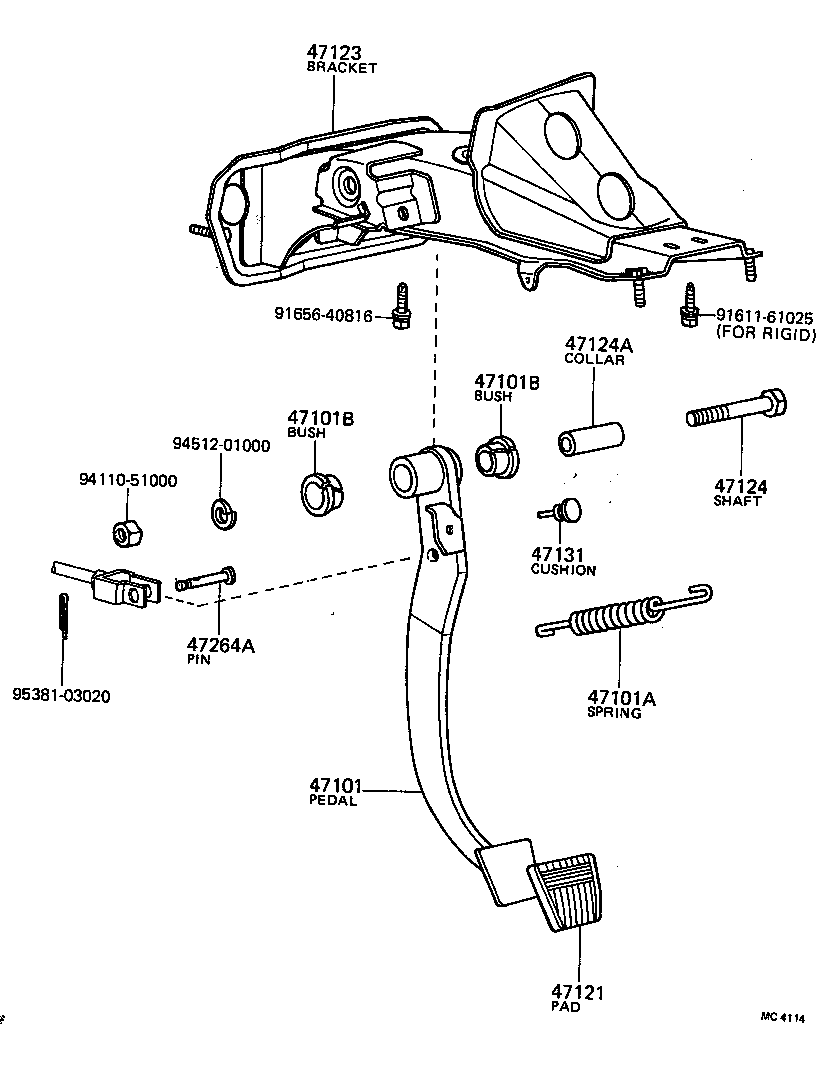

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47123 47124 47124A 47131 47264A 9161161025 9165640816 9411051000 9451201000 9538103020
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-14030

TA1#..LHD..4F

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90506-16148

TA1#

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

TA1#

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

TA1#

 2
47121 - PAD, BRAKE PEDAL
31321-14010

TA1#..MTM

 1
47123 - BRACKET, BRAKE PEDAL
55106-14020

TA1#..LHD

 1
47124 - SHAFT, BRAKE PEDAL
90101-10039

TA10,12

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10003

TA10,12

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06008

TA1#

 1
47264A - PIN(FOR PUSH ROD)
90240-10083

TA1#

 1
Common parts
91611-61025
91656-40816
94110-51000
94512-01000
95381-03020
