TA10-KF (1970)
Toyota Carina
Production
Dec 1970
-
Jul 1972
Engine
T
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7012-7509)4D

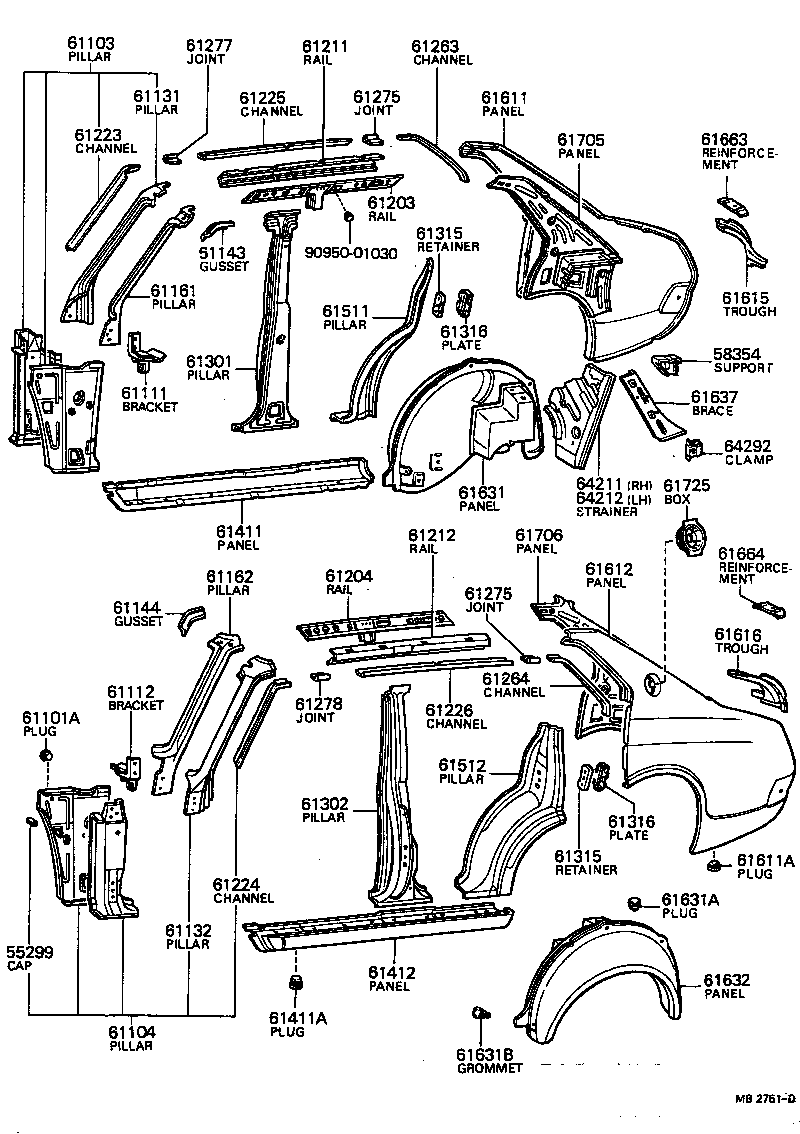

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55299 - CAP, TEE NUT(FOR 6MM) | ||||
| 55299-30010 |
TA1# |
2 | ||
| 61101A - PLUG, HOLE(FOR COWL SIDE PANEL) | ||||
| 90950-01056 |
TA1# OD=15 |
1 | ||
| 61103 - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61103-14010 |
TA1#..RHD |
1 | ||
| 61104 - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61104-14010 |
TA1#..RHD |
1 | ||
| 61111 - BRACKET SUB-ASSY,INSTRUMENT SIDE, RH | ||||
| 61106-14010 |
TA1#..RHD |
1 | ||
| 61112 - BRACKET SUB-ASSY, INSTRUMENT SIDE, LH | ||||
| 61166-14010 |
TA1#..RHD |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-20030 |
TA1# |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-20030 |
TA1# |
1 | ||
| 61143 - GUSSET, FRONT PILLAR DOOR OPENING, UPPER RH | ||||
| 61143-20030 |
TA1# |
1 | ||
| 61144 - GUSSET, FRONT PILLAR DOOR OPENING, UPPER LH | ||||
| 61144-20030 |
TA1# |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61161-20901 |
TA1# |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-20901 |
TA1# |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61203-14010 |
TA1#..4D |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61204-14010 |
TA1#..4D |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-14020 |
TA1#..4D |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-14020 |
TA1#..4D |
1 | ||
| 61223 - CHANNEL, ROOF DRIP, FRONT RH | ||||
| 61223-14010 |
TA1# |
1 | ||
| 61224 - CHANNEL, ROOF DRIP, FRONT LH | ||||
| 61224-14010 |
TA1# |
1 | ||
| 61225 - CHANNEL, ROOF DRIP, CENTER RH | ||||
| 61225-14010 |
TA1#..4D |
1 | ||
| 61226 - CHANNEL, ROOF DRIP, CENTER LH | ||||
| 61226-14010 |
TA1#..4D |
1 | ||
| 61263 - CHANNEL, ROOF DRIP, REAR RH | ||||
| 61227-14010 |
TA1#..4D |
1 | ||
| 61264 - CHANNEL, ROOF DRIP, REAR LH | ||||
| 61228-14010 |
TA1#..4D |
1 | ||
| 61275 - JOINT, ROOF DRIP CHANNEL, REAR | ||||
| 61269-14010 |
TA1#..STD..4D |
2 | ||
| 61275 - JOINT, ROOF DRIP CHANNEL, REAR | ||||
| 61269-14010 |
TA1#..STD..4D |
2 | ||
| 61277 - JOINT, ROOF DRIP CHANNEL, FRONT RH | ||||
| 61269-14010 |
TA1#..ST,STD |
1 | ||
| 61278 - JOINT, ROOF DRIP CHANNEL, FRONT LH | ||||
| 61269-14010 |
TA1#..ST,STD |
1 | ||
| 61301 - PILLAR SUB-ASSY, CENTER BODY, RH | ||||
| 61301-20040 |
TA1#..4D |
1 | ||
| 61302 - PILLAR SUB-ASSY, CENTER BODY, LH | ||||
| 61302-20050 |
TA1#..4D |
1 | ||
| 61315 - RETAINER, DOOR LOCK STRIKER PLATE | ||||
| 61315-20030 |
TA1#..4D |
2 | ||
| 61315 - RETAINER, DOOR LOCK STRIKER PLATE | ||||
| 61315-20030 |
TA1#..4D |
2 | ||
| 61316 - PLATE, DOOR LOCK STRIKER SUPPORT | ||||
| 61316-12040 |
TA1#..4D |
2 | ||
| 61316 - PLATE, DOOR LOCK STRIKER SUPPORT | ||||
| 61316-12040 |
TA1#..4D |
2 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-14902 |
TA1#..4D |
1 | ||
| 61411A - REINFORCEMENT, ROCKER PANEL, NO.1 RH | ||||
| 90950-01056 |
TA1# OD=15 |
8 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-14902 |
TA1#..4D |
1 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61511-14010 |
TA1#..4D |
1 | ||
| 61512 - PILLAR, QUARTER LOCK, LH | ||||
| 61512-14010 |
TA1#..4D |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-14040 |
TA1#..4D |
1 | ||
| 61611A - PANEL, QUARTER, NO.2 RH | ||||
| 90950-01006 |
TA1# OD=9 |
2 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-14040 |
TA1#..4D |
1 | ||
| 61615 - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61615-14010 |
TA1# |
1 | ||
| 61616 - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61616-14010 |
TA1# |
1 | ||
| 61631 - PANEL, QUARTER WHEEL HOUSE, RH | ||||
| 61603-14901 |
TA1# |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 90950-01027 |
TA1# OD=10 |
2 | ||
| 61631B - GROMMET(FOR QUARTER WHEEL HOUSE) | ||||
| 90950-01126 |
TA1# OD=12 |
2 | ||
| 61632 - PANEL, QUARTER WHEEL HOUSE, LH | ||||
| 61604-14901 |
TA1# |
1 | ||
| 61637 - BRACE, QUARTER WHEEL HOUSE, RH | ||||
| 61657-14010 |
TA1# |
1 | ||
| 61663 - REINFORCEMENT, REAR COMBINATION LAMP SUPPORT, RH | ||||
| 61663-14010 |
TA1# |
1 | ||
| 61664 - REINFORCEMENT, REAR COMBINATION LAMP SUPPORT, LH | ||||
| 61664-14010 |
TA1# |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-14020 |
TA1#..4D |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-14020 |
TA1#..4D |
1 | ||
| 64211 - STRAINER, PACKAGE TRAY TO FLOOR, RH | ||||
| 64211-14010 |
TA1# |
1 | ||
| 64212 - STRAINER, PACKAGE TRAY TO FLOOR, LH | ||||
| 64212-14010 |
TA1# |
1 | ||
| 64292 - CLAMP, JACK HANDLE | ||||
| 64292-12010 |
TA1# |
3 | ||
| Common parts | ||||
| 90950-01030 | ||||
