TA10-KF (1970)
Toyota Carina
Production
Dec 1970
-
Jul 1972
Engine
T
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7012-7509)

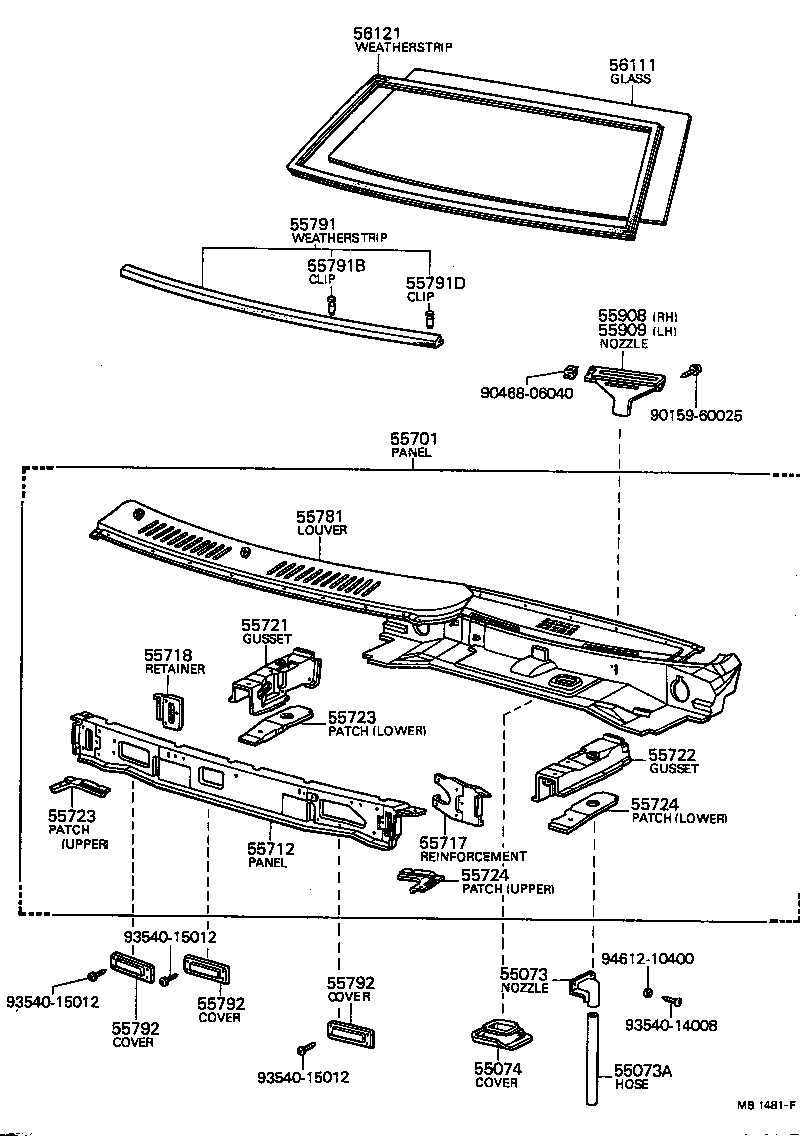

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55073 - NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT | ||||
| 55073-14010 |
TA1# |
2 | ||
| 55073A - HOSE(FOR EXTRACT NOZZLE) | ||||
| 90446-33231 |
TA1# |
2 | ||
| 55074 - COVER SUB-ASSY, COWL INNER HEATER AIR | ||||
| 55074-22010 |
TA1# L/HEATER |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-14010 |
TA1#..RHD |
1 | ||
| 55712 - PANEL, COWL TOP OUTSIDE, FRONT | ||||
| 55712-20020 |
TA1#..RHD |
1 | ||
| 55717 - REINFORCEMENT, COWL TOP OUTSIDE | ||||
| 55717-20010 |
TA1#..RHD |
1 | ||
| 55718 - RETAINER, HOOD HINGE | ||||
| 55715-20020 |
TA1#..RHD |
1 | ||
| 55721 - GUSSET, COWL TOP PANEL, RH | ||||
| 55715-14010 |
TA1# |
1 | ||
| 55722 - GUSSET, COWL TOP PANEL, LH | ||||
| 55716-14010 |
TA1# |
1 | ||
| 55723 - PATCH, COWL TOP OUTER CORNER, RH | ||||
| 55721-14010 |
TA1# LOWER |
1 | ||
| 55723-14010 |
TA1# UPPER |
1 | ||
| 55723 - PATCH, COWL TOP OUTER CORNER, RH | ||||
| 55721-14010 |
TA1# LOWER |
1 | ||
| 55723-14010 |
TA1# UPPER |
1 | ||
| 55724 - PATCH, COWL TOP OUTER CORNER, LH | ||||
| 55724-14010 |
TA1# UPPER |
1 | ||
| 55722-14010 |
TA1# LOWER |
1 | ||
| 55724 - PATCH, COWL TOP OUTER CORNER, LH | ||||
| 55724-14010 |
TA1# UPPER |
1 | ||
| 55722-14010 |
TA1# LOWER |
1 | ||
| 55781 - LOUVER, COWL VENTILATOR | ||||
| 55711-20040 |
TA1#..RHD |
1 | ||
| 55791 - WEATHERSTRIP, HOOD TO COWL TOP | ||||
| 53383-20902 |
TA1# |
1 | ||
| 55791B - CLIP(FOR HOOD TO COWL TOP WEATHERSTRIP) | ||||
| 90467-07050 |
TA1# |
8 | ||
| 55792 - COVER, WIPER MOTOR SERVICE HOLE | ||||
| 55071-20010 |
TA1# |
3 | ||
| 55792 - COVER, WIPER MOTOR SERVICE HOLE | ||||
| 55071-20010 |
TA1# |
3 | ||
| 55792 - COVER, WIPER MOTOR SERVICE HOLE | ||||
| 55071-20010 |
TA1# |
3 | ||
| 55908 - NOZZLE SUB-ASSY, DEFROSTER, RH | ||||
| 55908-14010 |
TA1# |
1 | ||
| 55909 - NOZZLE SUB-ASSY, DEFROSTER, LH | ||||
| 55909-14010 |
TA1# |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-20110 |
TA1#..ST,STD ZN.TP. T=5.0 |
1 | ||
| 56111-20130 |
TA1# TN.LM. T=6.6 |
1 | ||
| 56111-20120 |
TA1# TN.ZN.TP. T=5.0 |
1 | ||
| 56111-20140 |
TA1#..ST,STD LM.T=6.6 |
1 | ||
| 56121 - WEATHERSTRIP, WINDSHIELD | ||||
| 56121-14070 |
TA1# |
1 | ||
| Common parts | ||||
| 90159-60025 | ||||
| 90468-06040 | ||||
| 93540-14008 | ||||
| 93540-15012 | ||||
| 94612-10400 | ||||
