TA10-KF (1970)

Toyota Carina

Production Dec 1970 - Jul 1972
Engine T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7707)

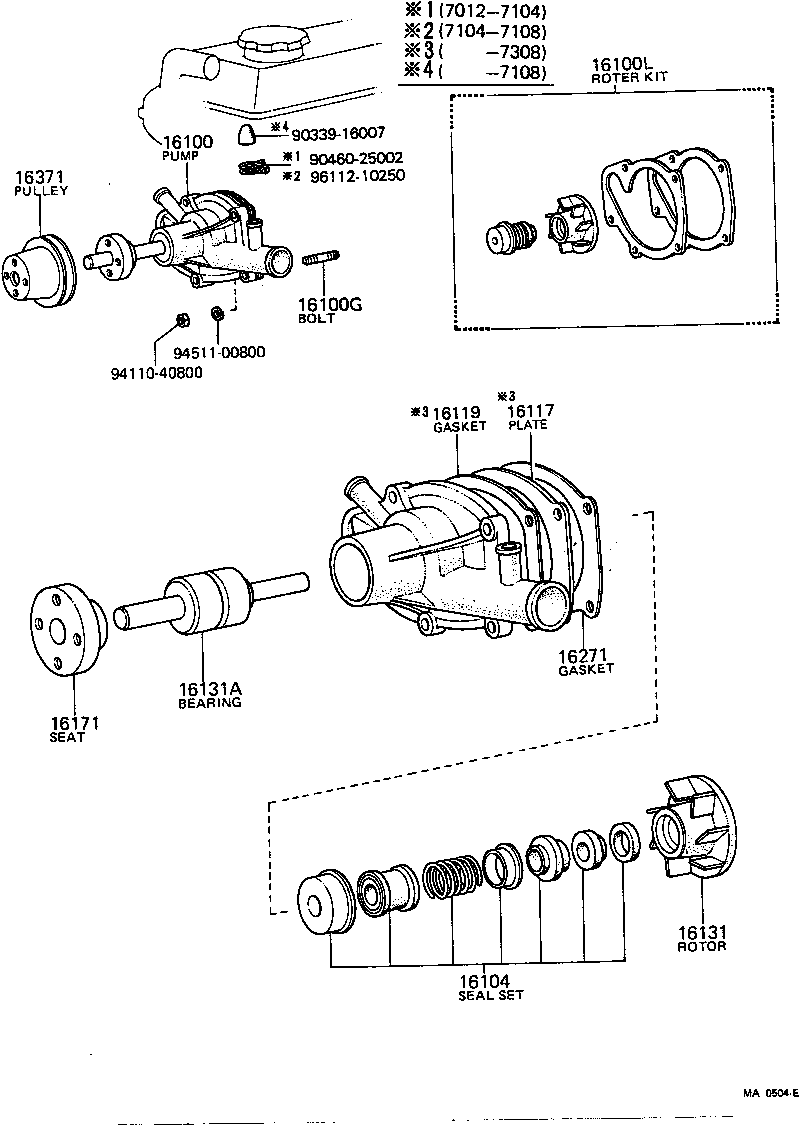

Click highlighted areas on diagram

diagram 16100 16100G 16100L 16104 16117 16119 16131 16131A 16171 16271 16371 9033916007 9046025002 9411040800 9451100800 9611210250
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-25010

T,2T#..TA1#

 1
16100G - BOLT, STUD(FOR WATER PUMP SET)
92121-40822

T,2T..TA1#

 2
16100L - ROTOR KIT, WATER PUMP
04162-25010

T,2T#..TA1#

 1
16104 - SEAL SET, WATER PUMP
16104-22010

T,2T#..TA1#

 1
16117 - PLATE, WATER PUMP
16117-25010

T,2T#..TA1#

 1
16119 - GASKET, WATER PUMP BODY
16119-25010

T,2T#..TA1#

 1
16131 - ROTOR, WATER PUMP
16131-25010

T,2T#..TA1#

 1
16131A - BEARING, WATER PUMP
90369-30035

T,2T#..TA1#

WPB16124 RS

 1
16171 - SEAT, WATER PUMP PULLEY
16171-31030

T,2T#..TA1#

 1
16271 - GASKET, WATER PUMP
16129-25010

T,2T#..TA1#

 1
16371 - PULLEY, FAN
16371-25010

T,2T..TA10,12

 1
Common parts
90339-16007
90460-25002
94110-40800
94511-00800
96112-10250
