CA60LG-AWMDSW (1982)
Toyota Carina
Production
Apr 1982
-
Sep 1983
Engine
1C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8204- )CA60

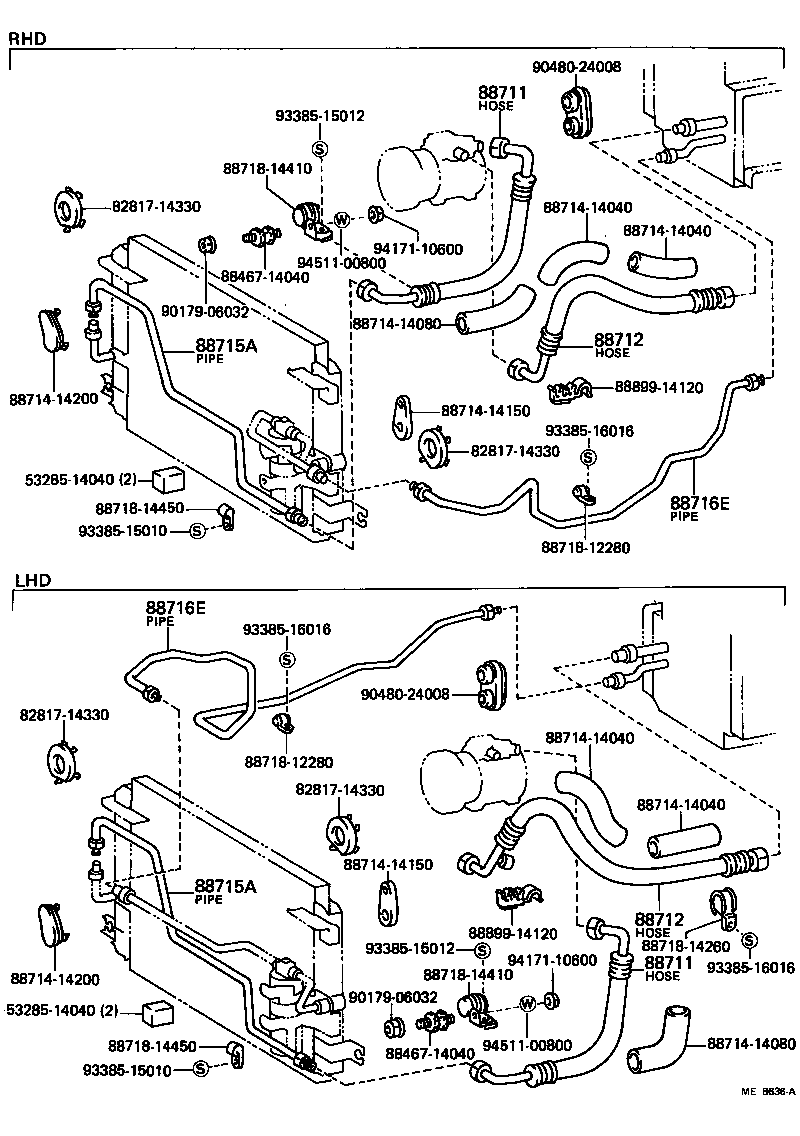

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-20330 |
CA60 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-20330 |
CA60 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-20430 |
CA60..LHD |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-20430 |
CA60..LHD |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-14140 |
CA60 |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-14140 |
CA60 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-14770 |
CA60,TA60..LHD;TA62..LHD..EUG |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-14770 |
CA60,TA60..LHD;TA62..LHD..EUG |
1 | ||
| Common parts | ||||
| 53285-14040 | ||||
| 82817-14330 | ||||
| 88467-14040 | ||||
| 88714-14040 | ||||
| 88714-14080 | ||||
| 88714-14150 | ||||
| 88714-14200 | ||||
| 88718-12280 | ||||
| 88718-14260 | ||||
| 88718-14410 | ||||
| 88718-14450 | ||||
| 88899-14120 | ||||
| 90179-06032 | ||||
| 90480-24008 | ||||
| 93385-15010 | ||||
| 93385-15012 | ||||
| 93385-16016 | ||||
| 94171-10600 | ||||
| 94511-00800 | ||||
