CA60LG-AWMDSW (1982)

Toyota Carina

Production Apr 1982 - Sep 1983
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8204- )CA60

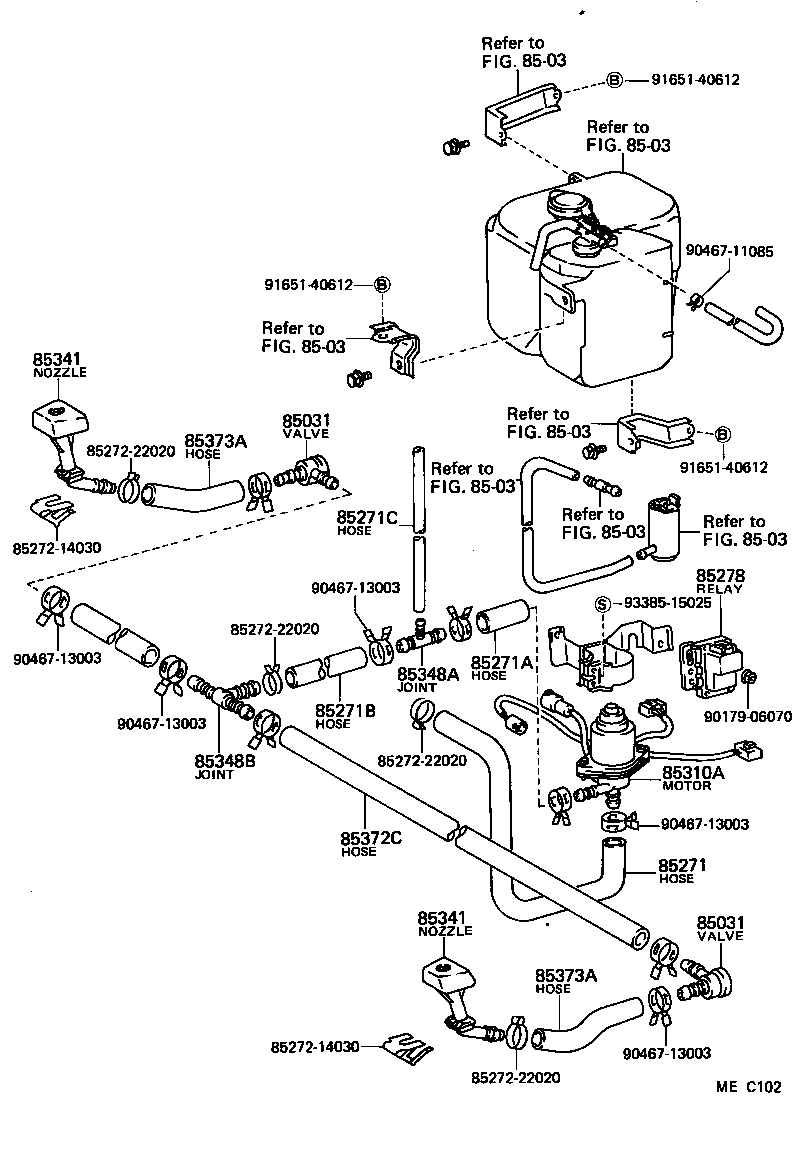

Click highlighted areas on diagram

diagram 8503 8503 8503 8503 8503 8503 8503 85031 85031 85271 85271A 85271B 85271C 8527214030 8527214030 8527222020 8527222020 8527222020 8527222020 85278 85310A 85341 85341 85348A 85348B 85372C 85373A 85373A 9017906070 9046711085 9046713003 9046713003 9046713003 9046713003 9046713003 9165140612 9165140612 9165140612 9338515025
Part # Description Qty Price
85031 - VALVE, HEADLAMP CLEANER WASHER HOSE
85031-30020

CA60,TA6#..EUR

 2
85031 - VALVE, HEADLAMP CLEANER WASHER HOSE
85031-30020

CA60,TA6#..EUR

 2
85271 - HOSE, HEADLAMP CLEANER, NO.1
85375-14060

CA60

 1
85271A - HOSE, HEADLAMP CLEANER, NO.2
90445-14071

CA60

L=50

 1
85271B - HOSE, HEADLAMP CLEANER, NO.3
90445-14036

CA60

*H,L=460

 1
85271C - HOSE, HEADLAMP CLEANER, NO.4
85376-14060

CA60

 1
85278 - RELAY ASSY, HEADLAMP CLEANER CONTROL
85276-20020

CA60,TA6#..EUR

 1
85276-14040

CA60,TA6#..EUR

 1
85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85310-22070

CA60,TA6#..EUR

 1
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-14210

CA60,TA6#..EUR

 2
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-14210

CA60,TA6#..EUR

 2
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
85352-20010

CA60

 1
85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2
85352-12010

CA60,TA6#..EUR

 1
85372C - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO VALVE)
90445-14062

CA60,TA6#..EUR

*H,L=815

 1
85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
90445-14055

CA60,TA6#..EUR

*H,L=60

 2
85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
90445-14055

CA60,TA6#..EUR

*H,L=60

 2
Common parts
85272-14030
85272-22020
90179-06070
90467-11085
90467-13003
91651-40612
93385-15025
Linked diagrams
8503
