CA60LG-AWMDSW (1982)
Toyota Carina
Production
Apr 1982
-
Sep 1983
Engine
1C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8204- )CA60

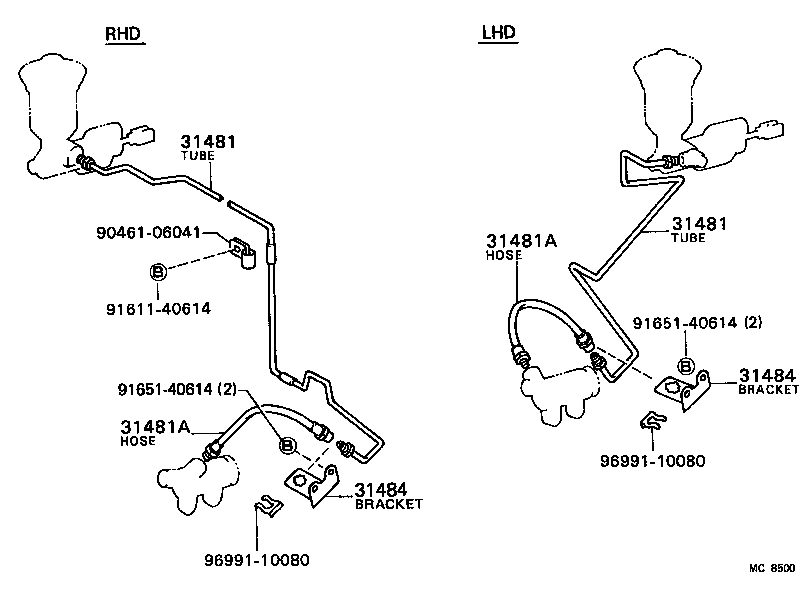

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-14150 |
CA60..LHD |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-14150 |
CA60..LHD |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96940-33004 |
CA60 |
1 | ||
| 96812-50290 |
CA60 |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96940-33004 |
CA60 |
1 | ||
| 96812-50290 |
CA60 |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-14050 |
CA60,TA6#..MTM |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-14050 |
CA60,TA6#..MTM |
1 | ||
| Common parts | ||||
| 90461-06041 | ||||
| 91611-40614 | ||||
| 91651-40614 | ||||
| 96991-10080 | ||||
