CA60LG-AWMDSW (1982)

Toyota Carina

Production Apr 1982 - Sep 1983
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8204- )1C

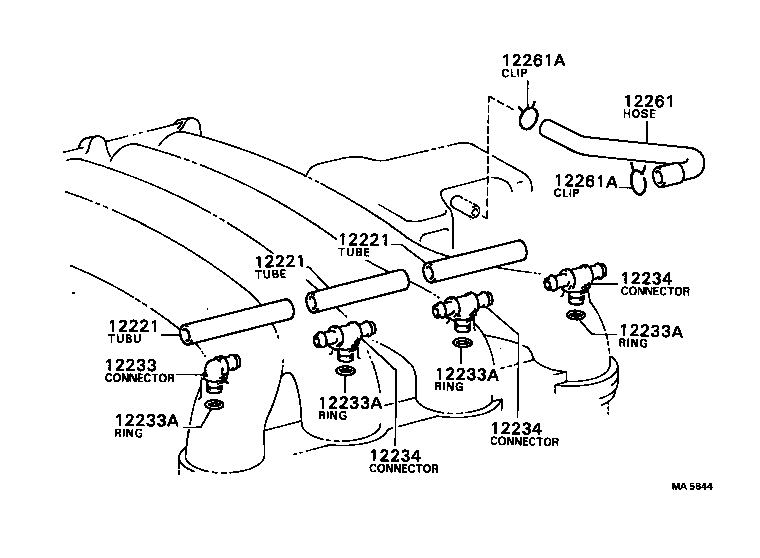

Click highlighted areas on diagram

diagram 12221 12221 12221 12233 12233A 12233A 12233A 12233A 12234 12234 12234 12261 12261A 12261A
Part # Description Qty Price
12221 - TUBE, VENTILATION NO.1
12221-64010

1C..CA60

 3
12221 - TUBE, VENTILATION NO.1
12221-64010

1C..CA60

 3
12221 - TUBE, VENTILATION NO.1
12221-64010

1C..CA60

 3
12233 - CONNECTOR, VENTILATION NO.1
12233-64010

1C..CA60

 1
12233A - RING, O(FOR VENTILATION CONNECTOR)
96711-19008

1C..CA60

 4
12233A - RING, O(FOR VENTILATION CONNECTOR)
96711-19008

1C..CA60

 4
12233A - RING, O(FOR VENTILATION CONNECTOR)
96711-19008

1C..CA60

 4
12233A - RING, O(FOR VENTILATION CONNECTOR)
96711-19008

1C..CA60

 4
12234 - CONNECTOR, VENTILATION NO.2
12234-64010

1C..CA60

 3
12234 - CONNECTOR, VENTILATION NO.2
12234-64010

1C..CA60

 3
12234 - CONNECTOR, VENTILATION NO.2
12234-64010

1C..CA60

 3
12261 - HOSE, VENTILATION
12261-64010

1C..CA60

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15120

1C..CA60

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15120

1C..CA60

 2
