CA60L-AEMDSW (1982)

Toyota Carina

Production Apr 1982 - Sep 1983
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8204- )1C

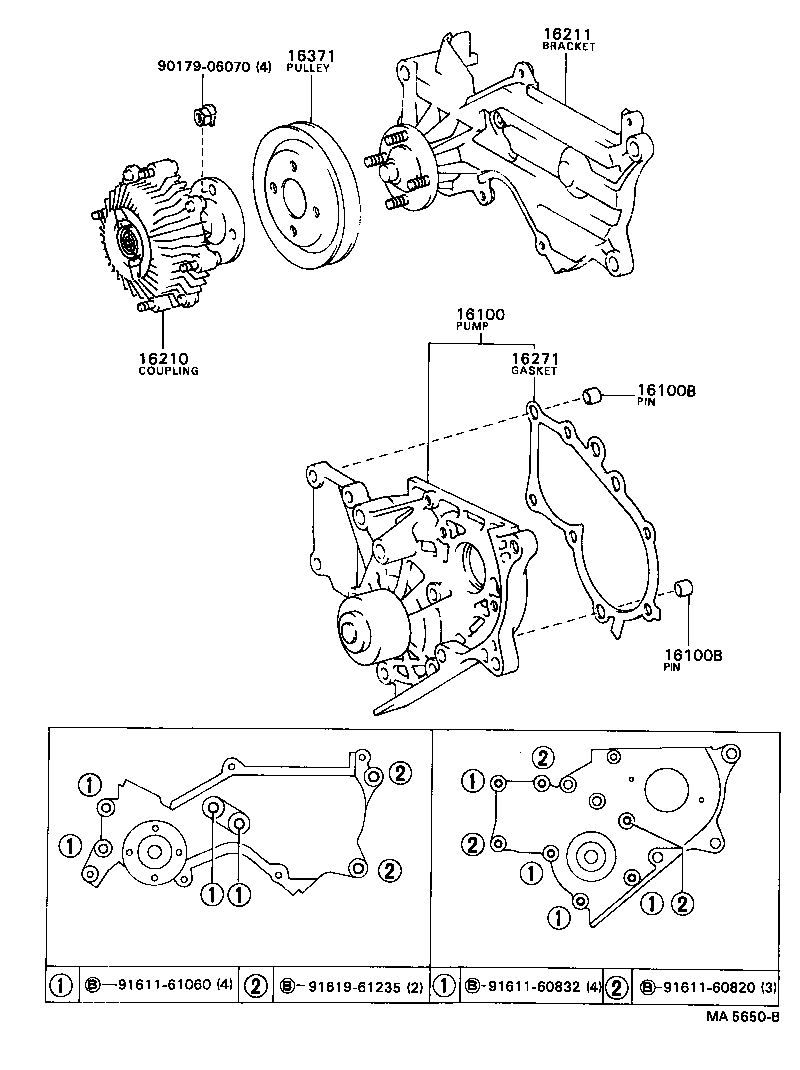

Click highlighted areas on diagram

diagram 16100 16100B 16100B 16210 16211 16271 16371 9017906070 9161160820 9161160832 9161161060 9161961235
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-69085

1C..CA60

 1
16100B - PIN, RING(FOR WATER PUMP SET)
90253-11021

1C..CA60

 2
16100B - PIN, RING(FOR WATER PUMP SET)
90253-11021

1C..CA60

 2
16210 - COUPLING ASSY, FLUID
16210-64010

1C..CA60

 1
16211 - BRACKET, FLUID COUPLING
16307-64010

1C..CA60

 1
16271 - GASKET, WATER PUMP
16271-64010

1C..CA60

 1
16371 - PULLEY, FAN
16371-64011

1C..CA60

 1
Common parts
90179-06070
91611-60820
91611-60832
91611-61060
91619-61235
