VCV10R-AEPGKW (1991)

Toyota Camry (Sed)

Production Jun 1991 - Aug 1996
Engine 3VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )JPP

Click highlighted areas on diagram

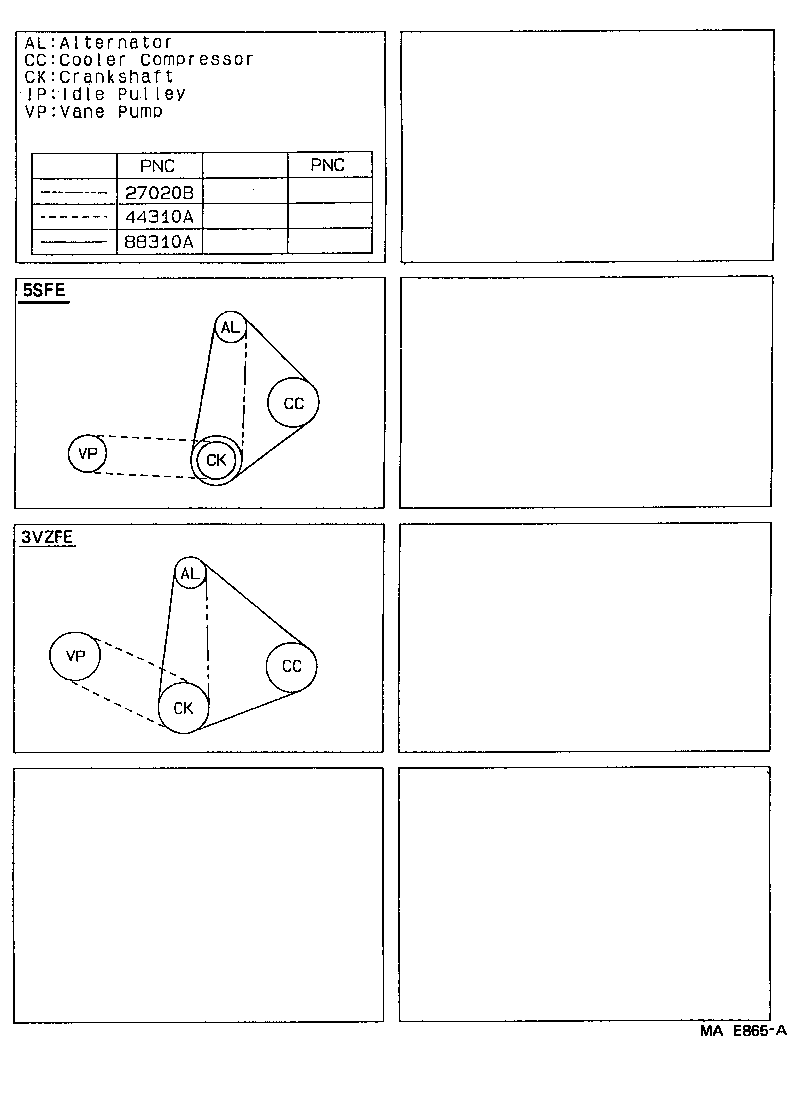

diagram 27020B 44310A 88310A
Part # Description Qty Price
27020B - BELT, V(FOR ALTERNATOR)
99366-50940

3VZFE..VCV10..JPP

MITSUBOSHI

 1
99366-80940

3VZFE..VCV10..JPP

 1
44310A - BELT, V(FOR VANE PUMP)
90916-02352

VCV10..JPP

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99366-21050

VCV10..JPP

L=1050

 1
90916-02373

VCV10..JPP

L=1050,MITSUBOSHI

 1
90916-02374

VCV10..JPP

BANDO

 1
90916-02373

VCV10..JPP

L=1050,W(AIR CONDITIONER)...MAKER OPTION

 1
99366-21050

VCV10..JPP

L=1050,W(AIR CONDITIONER)...DEALER OPTION

 1
90916-02373

VCV10..JPP

L=1050

 1
