VCV10L-AEPGKW (1991)
Toyota Camry (Sed)
(9106-9308)3VZFE..JPP

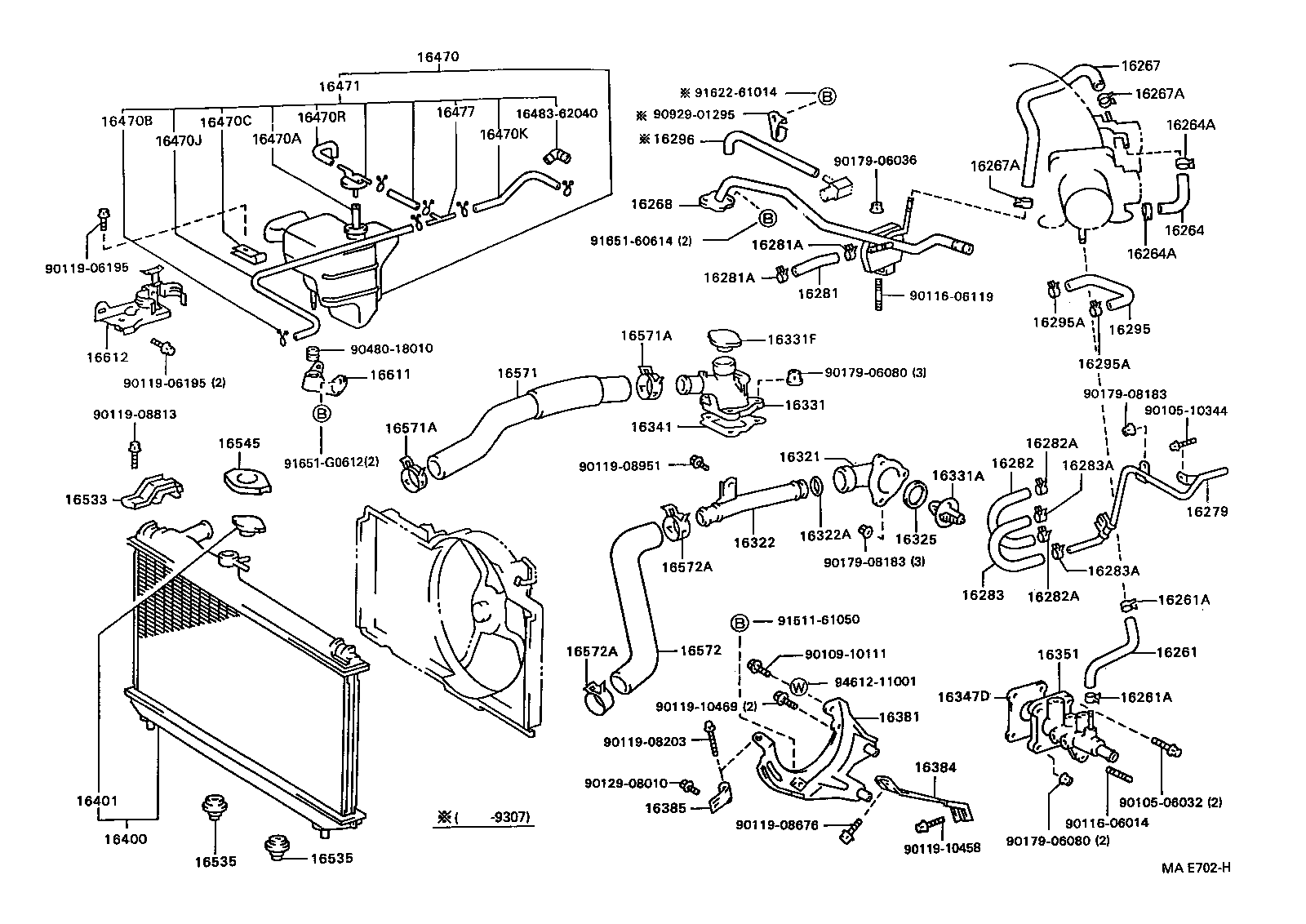

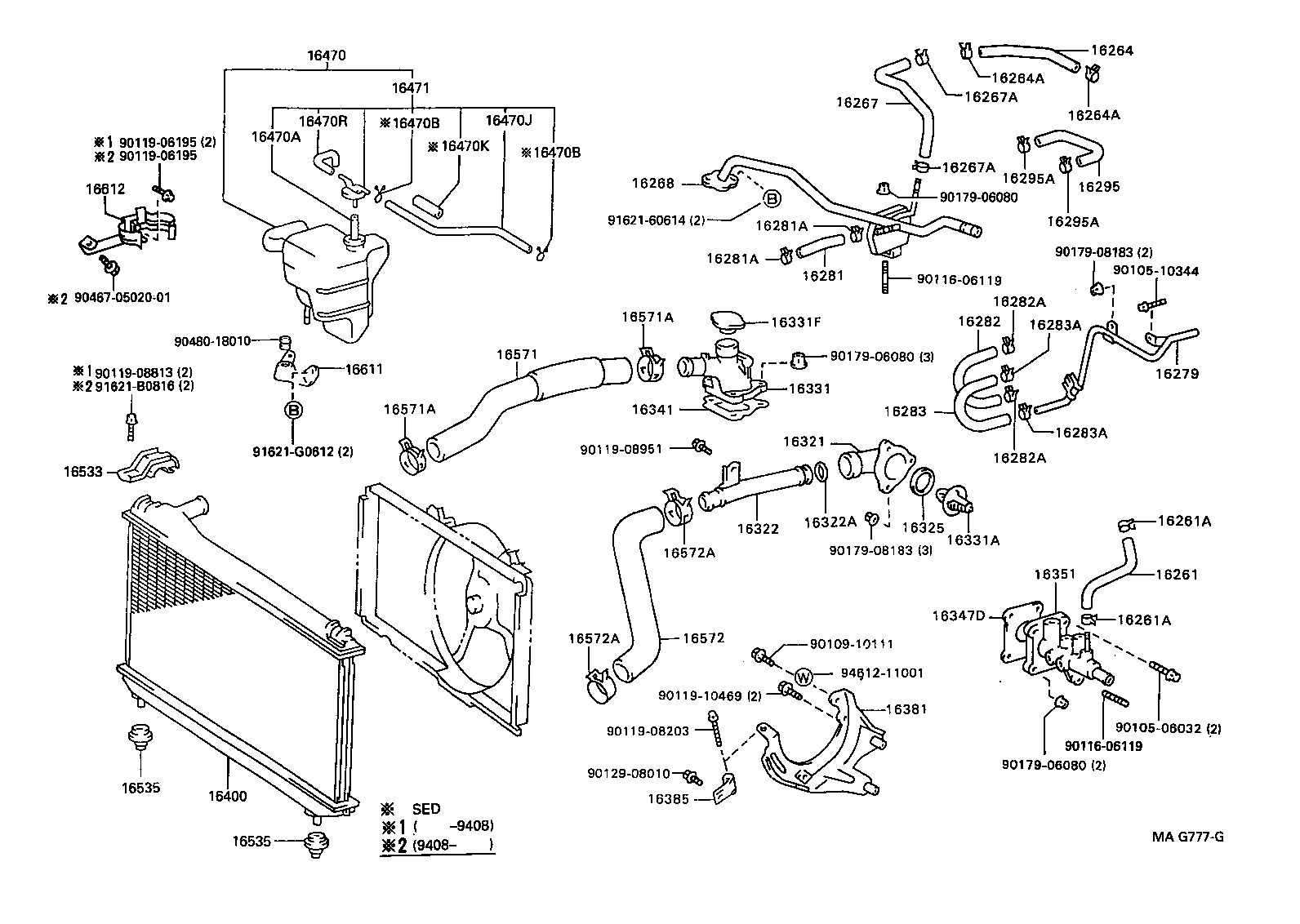

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-62020 |
3VZFE..VCV10..JPP |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
3VZFE..VCV10..JPP |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
3VZFE..VCV10..JPP |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-62030 |
3VZFE..VCV10..JPP |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-41300 |
3VZFE..VCV10..JPP |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-41300 |
3VZFE..VCV10..JPP |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-62020 |
3VZFE..VCV10..JPP |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96135-41300 |
3VZFE..VCV10..JPP |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96135-41300 |
3VZFE..VCV10..JPP |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-62040 |
3VZFE..VCV10..JPP |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-62020 |
3VZFE..VCV10..JPP |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-62020 |
3VZFE..VCV10..JPP |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96135-41300 |
3VZFE..VCV10..JPP |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96135-41300 |
3VZFE..VCV10..JPP |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-62020 |
3VZFE..VCV10..JPP |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-20011 |
3VZFE..VCV10..JPP |
2 | ||
| 90467-19013 |
3VZFE..VCV10..JPP |
2 | ||
| 90467-20005 |
3VZFE..VCV10..JPP |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-20011 |
3VZFE..VCV10..JPP |
2 | ||
| 90467-19013 |
3VZFE..VCV10..JPP |
2 | ||
| 90467-20005 |
3VZFE..VCV10..JPP |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-62020 |
3VZFE..VCV10..JPP |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-20005 |
3VZFE..VCV10..JPP |
2 | ||
| 90467-19013 |
3VZFE..VCV10..JPP |
2 | ||
| 90467-20011 |
3VZFE..VCV10..JPP |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-20005 |
3VZFE..VCV10..JPP |
2 | ||
| 90467-19013 |
3VZFE..VCV10..JPP |
2 | ||
| 90467-20011 |
3VZFE..VCV10..JPP |
2 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-62020 |
3VZFE..VCV10..JPP |
1 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 90467-20005 |
3VZFE..VCV10..JPP |
2 | ||
| 90467-19013 |
3VZFE..VCV10..JPP |
2 | ||
| 90467-20011 |
3VZFE..VCV10..JPP |
2 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 90467-20005 |
3VZFE..VCV10..JPP |
2 | ||
| 90467-19013 |
3VZFE..VCV10..JPP |
2 | ||
| 90467-20011 |
3VZFE..VCV10..JPP |
2 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-62010 |
3VZFE..VCV10..JPP |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-62010 |
3VZFE..VCV10..JPP |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-62020 |
3VZFE..VCV10..JPP |
1 | ||
| 16322A - RING, O(FOR WATER INLET) | ||||
| 96711-35031 |
3VZFE..VCV10..JPP |
1 | ||
| 96761-35031 |
3VZFE..VCV10..JPP |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
3VZFE..VCV10..JPP |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-62030 |
3VZFE..VCV10..JPP |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03075 |
3VZFE..VCV10..JPP *WAX 82-95 |
1 | ||
| 16331F - CAP SUB-ASSY(FOR WATER OUTLET) | ||||
| 16401-62090 |
3VZFE..VCV10..JPP |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-62030 |
3VZFE..VCV10..JPP |
1 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-62030 |
3VZFE..VCV10..JPP |
1 | ||
| 16351 - OUTLET, WATER BY-PASS | ||||
| 16351-62040 |
3VZFE..VCV10..JPP |
1 | ||
| 16351-62041 |
3VZFE..VCV10..JPP |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-62020 |
3VZFE..VCV10..JPP |
1 | ||
| 16381-62021 |
3VZFE..VCV10..JPP |
1 | ||
| 16384 - BRACKET, FAN BELT ADJUSTING BAR | ||||
| 16384-62050 |
3VZFE..VCV10..JPP W(AIR CONDITIONER) |
1 | ||
| 88444-33012 |
3VZFE..VCV10..JPP W(AIR CONDITIONER) |
1 | ||
| 16384-62040 |
3VZFE..VCV10..JPP |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-62010 |
3VZFE..VCV10..JPP |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-62100 |
3VZFE..VCV10..JPP..ATM TYPE 1 |
1 | ||
| 16400-62150 |
3VZFE..VCV10..JPP..ATM |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-62100 |
3VZFE..VCV10..JPP |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-20020 |
3VZFE..VCV10..JPP *ND |
1 | ||
| 16470-62040 |
3VZFE..VCV10..JPP |
1 | ||
| 16470-0A010 |
3VZFE..VCV10..JPP SALGA |
1 | ||
| 16470-20020 |
3VZFE..VCV10..JPP |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3VZFE..VCV10..JPP L=600 |
1 | ||
| 16472-03010 |
3VZFE..VCV10..JPP SALGA |
1 | ||
| 90445-12078 |
3VZFE..VCV10..JPP L=600,*ND |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3VZFE..VCV10..JPP |
6 | ||
| 90467-11085 |
3VZFE..VCV10..JPP |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16471-74180 |
3VZFE..VCV10..JPP |
1 | ||
| 16471-74180 |
3VZFE..VCV10..JPP |
1 | ||
| 16470J - HOSE, NO.3(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3VZFE..VCV10..JPP L=600,*ND |
1 | ||
| 16479-62040 |
3VZFE..VCV10..JPP |
1 | ||
| 90445-12078 |
3VZFE..VCV10..JPP L=600 |
1 | ||
| 16472-0A020 |
3VZFE..VCV10..JPP SALGA |
1 | ||
| 16470K - HOSE, NO.4(FOR RADIATOR RESERVE TANK) | ||||
| 16478-62040 |
3VZFE..VCV10..JPP |
1 | ||
| 85338-70070 |
3VZFE..VCV10..JPP |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 16477-74180 |
3VZFE..VCV10..JPP |
1 | ||
| 16477-74180 |
3VZFE..VCV10..JPP |
1 | ||
| 16472-0A010 |
3VZFE..VCV10..JPP SALGA |
1 | ||
| 16477-74180 |
3VZFE..VCV10..JPP *ND |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-62030 |
3VZFE..VCV10..JPP |
1 | ||
| 16405-0A010 |
3VZFE..VCV10..JPP SALGA |
1 | ||
| 16405-20010 |
3VZFE..VCV10..JPP *ND |
1 | ||
| 16405-20010 |
3VZFE..VCV10..JPP |
1 | ||
| 16477 - PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16477-62040 |
3VZFE..VCV10..JPP |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-74190 |
3VZFE..VCV10..JPP TYPE 1 |
2 | ||
| 16533-74190 |
3VZFE..VCV10..JPP |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-62031 |
3VZFE..VCV10..JPP |
2 | ||
| 16535-62030 |
3VZFE..VCV10..JPP |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-62031 |
3VZFE..VCV10..JPP |
2 | ||
| 16535-62030 |
3VZFE..VCV10..JPP |
2 | ||
| 16545 - COVER, RADIATOR CAP | ||||
| 16545-62011 |
3VZFE..VCV10..JPP |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-62040 |
3VZFE..VCV10..JPP |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37004 |
3VZFE..VCV10..JPP |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37004 |
3VZFE..VCV10..JPP |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-62030 |
3VZFE..VCV10..JPP |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
3VZFE..VCV10..JPP |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
3VZFE..VCV10..JPP |
2 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-74080 |
3VZFE..VCV10..JPP |
1 | ||
| 16612 - BRACKET, RADIATOR RESERVE TANK, NO.2 | ||||
| 16612-74010 |
3VZFE..VCV10..JPP |
1 | ||
| 16612-74020 |
3VZFE..VCV10..JPP |
1 | ||
| Common parts | ||||
| 16483-62040 | ||||
| 90105-06032 | ||||
| 90105-10344 | ||||
| 90109-10111 | ||||
| 90116-06014 | ||||
| 90116-06119 | ||||
| 90119-06195 | ||||
| 90119-08203 | ||||
| 90119-08676 | ||||
| 90119-08813 | ||||
| 90119-08951 | ||||
| 90119-10458 | ||||
| 90119-10469 | ||||
| 90129-08010 | ||||
| 90179-06036 | ||||
| 90179-06080 | ||||
| 90179-08183 | ||||
| 90480-18010 | ||||
| 90929-01295 | ||||
| 91511-61050 | ||||
| 91622-61014 | ||||
| 91651-60614 | ||||
| 91651-G0612 | ||||
| 94612-11001 | ||||
(9106-9308)3VZFE..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

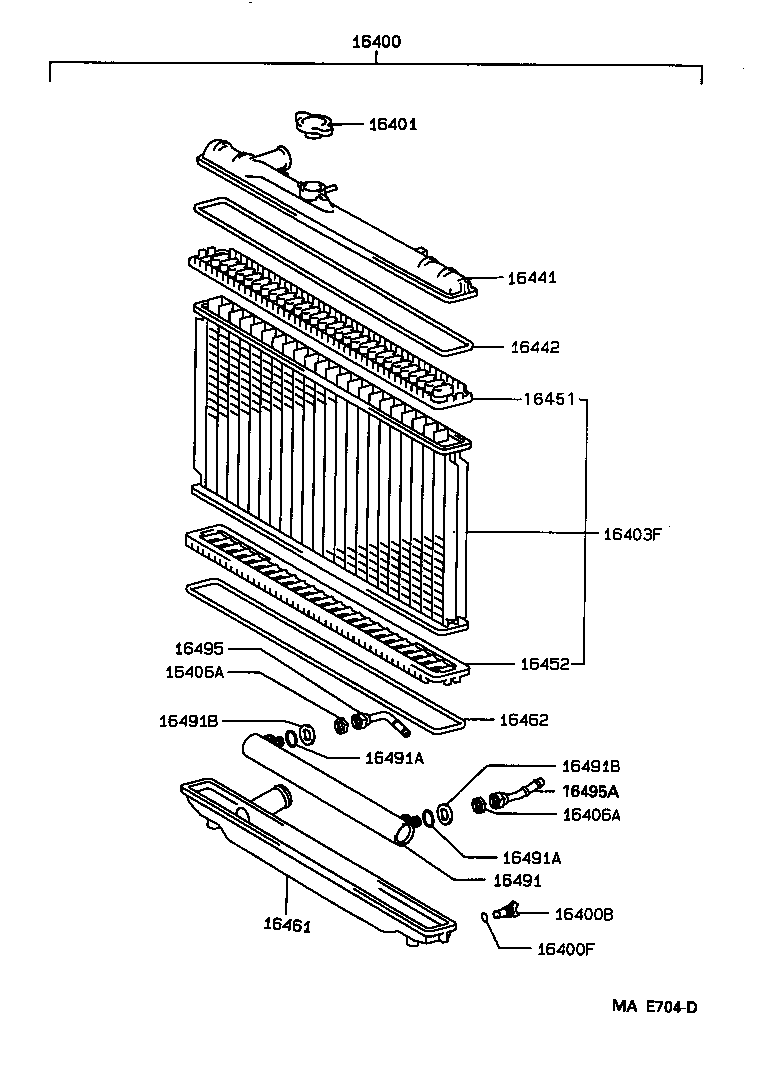

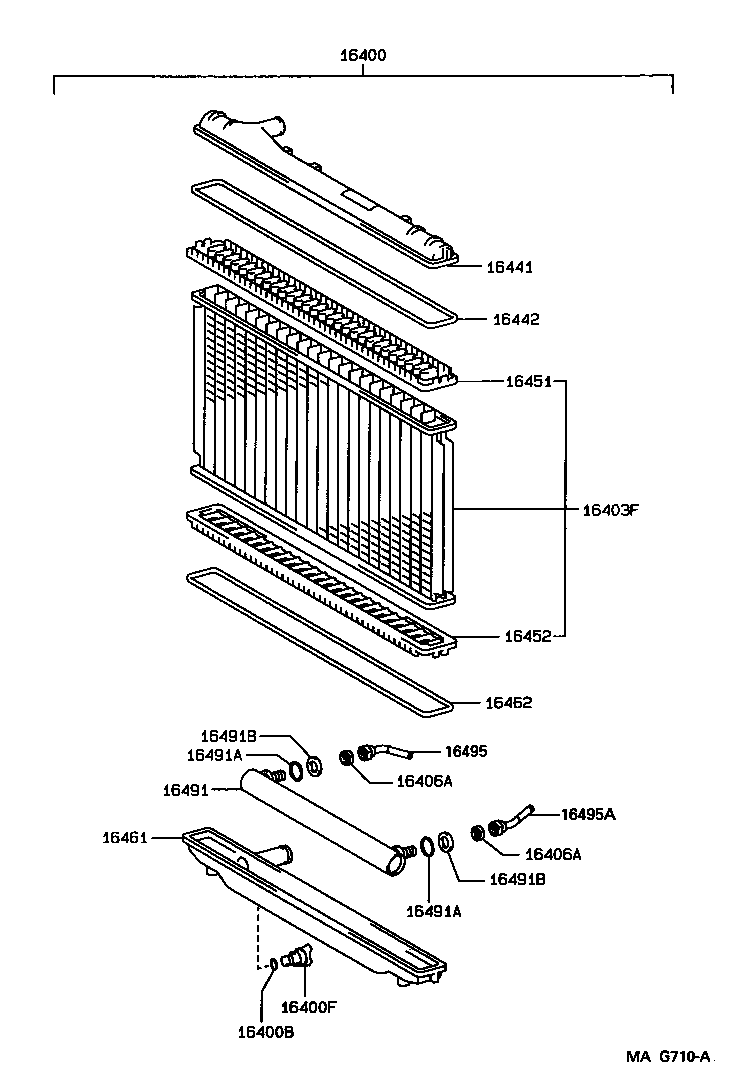

| 16400 - RADIATOR ASSY | ||||
| 16400-62100 |
3VZFE..VCV10..JPP..ATM TYPE 1 |
1 | ||
| 16400-62150 |
3VZFE..VCV10..JPP..ATM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
3VZFE..VCV10..JPP |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
3VZFE..VCV10..JPP |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-62100 |
3VZFE..VCV10..JPP |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-74760 |
3VZFE..VCV10..JPP |
1 | ||
| 16403-74760 |
3VZFE..VCV10..JPP TYPE 1 |
1 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-62060 |
3VZFE..VCV10..JPP..ATM |
2 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-62060 |
3VZFE..VCV10..JPP..ATM |
2 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-62150 |
3VZFE..VCV10..JPP |
1 | ||
| 16441-62100 |
3VZFE..VCV10..JPP TYPE 1 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-74760 |
3VZFE..VCV10..JPP |
1 | ||
| 16442-74760 |
3VZFE..VCV10..JPP TYPE 1 |
1 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-74760 |
3VZFE..VCV10..JPP TYPE 1 |
1 | ||
| 16451-74760 |
3VZFE..VCV10..JPP |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-74760 |
3VZFE..VCV10..JPP |
1 | ||
| 16452-74760 |
3VZFE..VCV10..JPP TYPE 1 |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-62100 |
3VZFE..VCV10..JPP..ATM |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-46040 |
3VZFE..VCV10..JPP |
1 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-54790 |
3VZFE..VCV10..JPP..ATM |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-50020 |
3VZFE..VCV10..JPP..ATM |
2 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-50020 |
3VZFE..VCV10..JPP..ATM |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-62060 |
3VZFE..VCV10..JPP..ATM |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-62060 |
3VZFE..VCV10..JPP..ATM |
2 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16495-74760 |
3VZFE..VCV10..JPP..ATM |
1 | ||
| 16495A - NUT, FLARE, NO.2(FOR ATM OIL COOLER) | ||||
| 16497-74760 |
3VZFE..VCV10..JPP..ATM |
1 | ||
(9106-9308)3VZFE..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15777T - HOSE, OIL COOLER, NO.1 | ||||
| 15777-62010 |
3VZFE..VCV10..JPP |
1 | ||
| 15777W - CLIP(FOR OIL RETURN HOSE) | ||||
| 90467-16013 |
3VZFE..VCV10..JPP |
1 | ||
| 90467-16013 |
3VZFE..VCV10..JPP |
1 | ||
| 90467-16008 |
3VZFE..VCV10..JPP |
1 | ||
| 15778A - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE, NO.2) | ||||
| 15778-62010 |
3VZFE..VCV10..JPP |
1 | ||
| 15778B - CLIP(FOR OIL RETURN HOSE) | ||||
| 90467-16007 |
3VZFE..VCV10..JPP |
1 | ||
| 16091 - FILTER SUB-ASSY, HYDRAULIC MOTER OIL | ||||
| 16091-20010 |
3VZFE..VCV10..JPP |
1 | ||
| 16091-62020 |
3VZFE..VCV10..JPP |
1 | ||
| 16361 - FAN | ||||
| 16911-64010 |
3VZFE..VCV10..JPP |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16912-62020 |
3VZFE..VCV10..JPP |
1 | ||
| 16912-20010 |
3VZFE..VCV10..JPP |
1 | ||
| 16906 - GEAR SET, HYDRAULIC | ||||
| 16906-50020 |
3VZFE..VCV10..JPP MARK 2 |
1 | ||
| 16906-50010 |
3VZFE..VCV10..JPP MARK 1 |
1 | ||
| 16906-50030 |
3VZFE..VCV10..JPP MARK 3 |
1 | ||
| 16913 - STAY, HYDRAULIC MOTOR FAN SHROUD | ||||
| 16913-62020 |
3VZFE..VCV10..JPP |
1 | ||
| 16927 - HOSE, HYDRAULIC MOTOR PRESSURE | ||||
| 16927-62020 |
3VZFE..VCV10..JPP |
1 | ||
| 16927B - GASKET(FOR PRESSURE HOSE) | ||||
| 44327-30030 |
3VZFE..VCV10..JPP |
1 | ||
| 44327-12010 |
3VZFE..VCV10..JPP |
1 | ||
| 16941 - HOSE, HYDRAULIC MOTOR RETURN, NO.1 | ||||
| 16941-62020 |
3VZFE..VCV10..JPP |
1 | ||
| 16941A - CLIP(FOR RETURN NO.1) | ||||
| 90467-16013 |
3VZFE..VCV10..JPP |
2 | ||
| 90467-16008 |
3VZFE..VCV10..JPP |
2 | ||
| 16941A - CLIP(FOR RETURN NO.1) | ||||
| 90467-16013 |
3VZFE..VCV10..JPP |
2 | ||
| 90467-16008 |
3VZFE..VCV10..JPP |
2 | ||
| 16960 - MOTOR ASSY, HYDRAULIC GEAR | ||||
| 16960-62010 |
3VZFE..VCV10..JPP |
1 | ||
| 16960 - MOTOR ASSY, HYDRAULIC GEAR | ||||
| 16960-62010 |
3VZFE..VCV10..JPP |
1 | ||
| 16961 - SHAFT, HYDRAULIC GEAR MOTOR | ||||
| 16961-50010 |
3VZFE..VCV10..JPP |
1 | ||
| 16962 - COVER, HYDRAULIC GEAR MOTOR | ||||
| 16962-62010 |
3VZFE..VCV10..JPP |
1 | ||
| 44402S - COOLER SUB-ASSY, OIL | ||||
| 44402-33010 |
VCV10..JPP |
1 | ||
| Common parts | ||||
| 90093-00807 | ||||
| 90096-90033 | ||||
| 90099-01093 | ||||
| 90099-01551 | ||||
| 90099-04120 | ||||
| 90099-14107 | ||||
| 90099-15035 | ||||
| 90119-06029 | ||||
| 90119-06183 | ||||
| 90119-06241 | ||||
| 90119-06494 | ||||
| 90170-08032 | ||||
| 90179-06058 | ||||
| 90179-08191 | ||||
| 90401-16015 | ||||
| 91511-60812 | ||||
(9308- )3VZFE..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-62100 |
3VZFE..VCV10..JPP..ATM TYPE 1 |
1 | ||
| 16400-62150 |
3VZFE..VCV10..JPP..ATM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
3VZFE..VCV10..JPP |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
3VZFE..VCV10..JPP |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-74760 |
3VZFE..VCV10..JPP |
1 | ||
| 16403-74760 |
3VZFE..VCV10..JPP TYPE 1 |
1 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-62060 |
3VZFE..VCV10..JPP..ATM |
2 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-62060 |
3VZFE..VCV10..JPP..ATM |
2 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-62150 |
3VZFE..VCV10..JPP |
1 | ||
| 16441-62100 |
3VZFE..VCV10..JPP TYPE 1 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-74760 |
3VZFE..VCV10..JPP |
1 | ||
| 16442-74760 |
3VZFE..VCV10..JPP TYPE 1 |
1 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-74760 |
3VZFE..VCV10..JPP TYPE 1 |
1 | ||
| 16451-74760 |
3VZFE..VCV10..JPP |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-74760 |
3VZFE..VCV10..JPP |
1 | ||
| 16452-74760 |
3VZFE..VCV10..JPP TYPE 1 |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-62100 |
3VZFE..VCV10..JPP..ATM |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-46040 |
3VZFE..VCV10..JPP |
1 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-54790 |
3VZFE..VCV10..JPP..ATM |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-50020 |
3VZFE..VCV10..JPP..ATM |
2 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-50020 |
3VZFE..VCV10..JPP..ATM |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-62060 |
3VZFE..VCV10..JPP..ATM |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-62060 |
3VZFE..VCV10..JPP..ATM |
2 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16495-74760 |
3VZFE..VCV10..JPP..ATM |
1 | ||
| 16495A - NUT, FLARE, NO.2(FOR ATM OIL COOLER) | ||||
| 16497-74760 |
3VZFE..VCV10..JPP..ATM |
1 | ||
(9308- )3VZFE..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-62020 |
3VZFE..VCV10..JPP |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
3VZFE..VCV10..JPP |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
3VZFE..VCV10..JPP |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-62030 |
3VZFE..VCV10..JPP |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-41300 |
3VZFE..VCV10..JPP |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-41300 |
3VZFE..VCV10..JPP |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-62020 |
3VZFE..VCV10..JPP |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96135-41300 |
3VZFE..VCV10..JPP |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96135-41300 |
3VZFE..VCV10..JPP |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-62040 |
3VZFE..VCV10..JPP |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-62020 |
3VZFE..VCV10..JPP |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-62020 |
3VZFE..VCV10..JPP |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96135-41300 |
3VZFE..VCV10..JPP |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96135-41300 |
3VZFE..VCV10..JPP |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-62020 |
3VZFE..VCV10..JPP |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-20011 |
3VZFE..VCV10..JPP |
2 | ||
| 90467-19013 |
3VZFE..VCV10..JPP |
2 | ||
| 90467-20005 |
3VZFE..VCV10..JPP |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-20011 |
3VZFE..VCV10..JPP |
2 | ||
| 90467-19013 |
3VZFE..VCV10..JPP |
2 | ||
| 90467-20005 |
3VZFE..VCV10..JPP |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-62020 |
3VZFE..VCV10..JPP |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-20005 |
3VZFE..VCV10..JPP |
2 | ||
| 90467-19013 |
3VZFE..VCV10..JPP |
2 | ||
| 90467-20011 |
3VZFE..VCV10..JPP |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-20005 |
3VZFE..VCV10..JPP |
2 | ||
| 90467-19013 |
3VZFE..VCV10..JPP |
2 | ||
| 90467-20011 |
3VZFE..VCV10..JPP |
2 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-62020 |
3VZFE..VCV10..JPP |
1 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 90467-19013 |
3VZFE..VCV10..JPP |
2 | ||
| 90467-20011 |
3VZFE..VCV10..JPP |
2 | ||
| 90467-20005 |
3VZFE..VCV10..JPP |
2 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 90467-19013 |
3VZFE..VCV10..JPP |
2 | ||
| 90467-20011 |
3VZFE..VCV10..JPP |
2 | ||
| 90467-20005 |
3VZFE..VCV10..JPP |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-62010 |
3VZFE..VCV10..JPP |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-62020 |
3VZFE..VCV10..JPP |
1 | ||
| 16322A - RING, O(FOR WATER INLET) | ||||
| 96761-35031 |
3VZFE..VCV10..JPP |
1 | ||
| 96711-35031 |
3VZFE..VCV10..JPP |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
3VZFE..VCV10..JPP |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-62030 |
3VZFE..VCV10..JPP |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03075 |
3VZFE..VCV10..JPP *WAX 82-95 |
1 | ||
| 16331F - CAP SUB-ASSY(FOR WATER OUTLET) | ||||
| 16401-62090 |
3VZFE..VCV10..JPP |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-62030 |
3VZFE..VCV10..JPP |
1 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-62030 |
3VZFE..VCV10..JPP |
1 | ||
| 16351 - OUTLET, WATER BY-PASS | ||||
| 16351-62040 |
3VZFE..VCV10..JPP |
1 | ||
| 16351-62041 |
3VZFE..VCV10..JPP |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-62020 |
3VZFE..VCV10..JPP |
1 | ||
| 16381-62021 |
3VZFE..VCV10..JPP |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-62010 |
3VZFE..VCV10..JPP |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-62100 |
3VZFE..VCV10..JPP..ATM TYPE 1 |
1 | ||
| 16400-62150 |
3VZFE..VCV10..JPP..ATM |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-20020 |
3VZFE..VCV10..JPP *ND |
1 | ||
| 16470-62040 |
3VZFE..VCV10..JPP |
1 | ||
| 16470-0A010 |
3VZFE..VCV10..JPP SALGA |
1 | ||
| 16470-20020 |
3VZFE..VCV10..JPP |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3VZFE..VCV10..JPP L=600 |
1 | ||
| 16472-03010 |
3VZFE..VCV10..JPP SALGA |
1 | ||
| 90445-12078 |
3VZFE..VCV10..JPP L=600,*ND |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3VZFE..VCV10..JPP |
6 | ||
| 90467-11085 |
3VZFE..VCV10..JPP |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3VZFE..VCV10..JPP |
6 | ||
| 90467-11085 |
3VZFE..VCV10..JPP |
2 | ||
| 16470J - HOSE, NO.3(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3VZFE..VCV10..JPP L=600,*ND |
1 | ||
| 16479-62040 |
3VZFE..VCV10..JPP |
1 | ||
| 90445-12078 |
3VZFE..VCV10..JPP L=600 |
1 | ||
| 16472-0A020 |
3VZFE..VCV10..JPP SALGA |
1 | ||
| 16470K - HOSE, NO.4(FOR RADIATOR RESERVE TANK) | ||||
| 16478-62040 |
3VZFE..VCV10..JPP |
1 | ||
| 85338-70070 |
3VZFE..VCV10..JPP |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 16477-74180 |
3VZFE..VCV10..JPP |
1 | ||
| 16477-74180 |
3VZFE..VCV10..JPP |
1 | ||
| 16472-0A010 |
3VZFE..VCV10..JPP SALGA |
1 | ||
| 16477-74180 |
3VZFE..VCV10..JPP *ND |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-62030 |
3VZFE..VCV10..JPP |
1 | ||
| 16405-0A010 |
3VZFE..VCV10..JPP SALGA |
1 | ||
| 16405-20010 |
3VZFE..VCV10..JPP *ND |
1 | ||
| 16405-20010 |
3VZFE..VCV10..JPP |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-74190 |
3VZFE..VCV10..JPP TYPE 1 |
2 | ||
| 16533-74190 |
3VZFE..VCV10..JPP |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-62031 |
3VZFE..VCV10..JPP |
2 | ||
| 16535-62030 |
3VZFE..VCV10..JPP |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-62031 |
3VZFE..VCV10..JPP |
2 | ||
| 16535-62030 |
3VZFE..VCV10..JPP |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-62040 |
3VZFE..VCV10..JPP |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37004 |
3VZFE..VCV10..JPP |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37004 |
3VZFE..VCV10..JPP |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-62030 |
3VZFE..VCV10..JPP |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
3VZFE..VCV10..JPP |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
3VZFE..VCV10..JPP |
2 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-74080 |
3VZFE..VCV10..JPP |
1 | ||
| 16612 - BRACKET, RADIATOR RESERVE TANK, NO.2 | ||||
| 16612-74010 |
3VZFE..VCV10..JPP |
1 | ||
| 16612-74020 |
3VZFE..VCV10..JPP |
1 | ||
| Common parts | ||||
| 90105-06032 | ||||
| 90105-10344 | ||||
| 90109-10111 | ||||
| 90116-06119 | ||||
| 90119-06195 | ||||
| 90119-08203 | ||||
| 90119-08813 | ||||
| 90119-08951 | ||||
| 90119-10469 | ||||
| 90129-08010 | ||||
| 90179-06080 | ||||
| 90179-08183 | ||||
| 90467-0502001 | ||||
| 90480-18010 | ||||
| 91621-60614 | ||||
| 91621-B0816 | ||||
| 91621-G0612 | ||||
| 94612-11001 | ||||

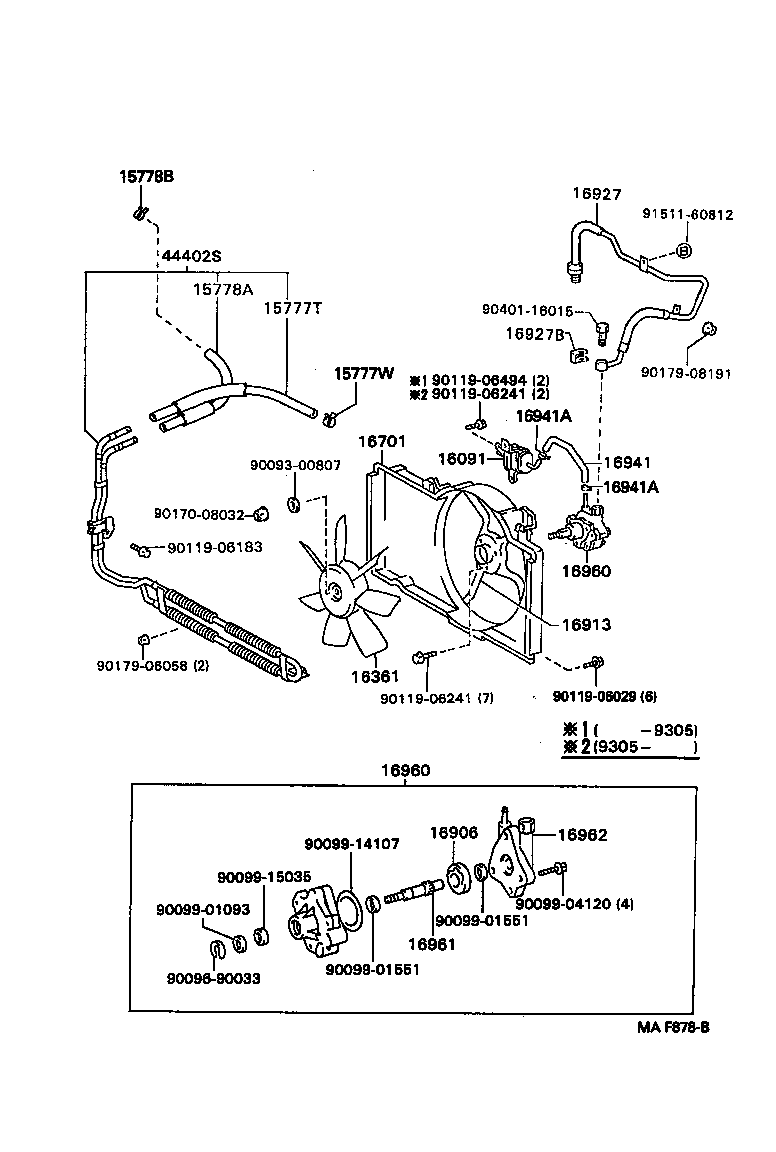

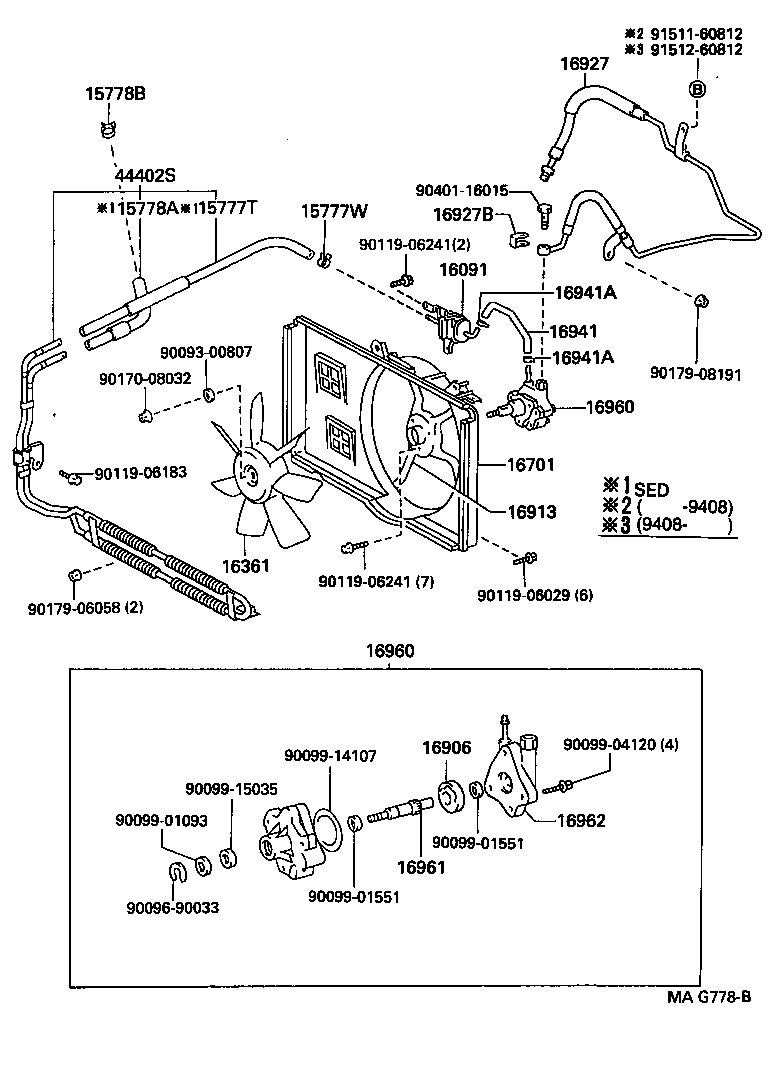

(9308- )3VZFE..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15777T - HOSE, OIL COOLER, NO.1 | ||||
| 15777-62010 |
3VZFE..VCV10..JPP |
1 | ||
| 15777W - CLIP(FOR OIL RETURN HOSE) | ||||
| 90467-16013 |
3VZFE..VCV10..JPP |
1 | ||
| 90467-16013 |
3VZFE..VCV10..JPP |
1 | ||
| 90467-16008 |
3VZFE..VCV10..JPP |
1 | ||
| 15778A - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE, NO.2) | ||||
| 15778-62010 |
3VZFE..VCV10..JPP |
1 | ||
| 15778B - CLIP(FOR OIL RETURN HOSE) | ||||
| 90467-16007 |
3VZFE..VCV10..JPP |
1 | ||
| 16091 - FILTER SUB-ASSY, HYDRAULIC MOTER OIL | ||||
| 16091-20010 |
3VZFE..VCV10..JPP |
1 | ||
| 16091-62020 |
3VZFE..VCV10..JPP |
1 | ||
| 16361 - FAN | ||||
| 16911-64010 |
3VZFE..VCV10..JPP |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16912-62020 |
3VZFE..VCV10..JPP |
1 | ||
| 16912-20010 |
3VZFE..VCV10..JPP |
1 | ||
| 16906 - GEAR SET, HYDRAULIC | ||||
| 16906-50020 |
3VZFE..VCV10..JPP MARK 2 |
1 | ||
| 16906-50010 |
3VZFE..VCV10..JPP MARK 1 |
1 | ||
| 16906-50030 |
3VZFE..VCV10..JPP MARK 3 |
1 | ||
| 16913 - STAY, HYDRAULIC MOTOR FAN SHROUD | ||||
| 16913-62020 |
3VZFE..VCV10..JPP |
1 | ||
| 16927 - HOSE, HYDRAULIC MOTOR PRESSURE | ||||
| 16927-62020 |
3VZFE..VCV10..JPP |
1 | ||
| 16927B - GASKET(FOR PRESSURE HOSE) | ||||
| 44327-30030 |
3VZFE..VCV10..JPP |
1 | ||
| 44327-12010 |
3VZFE..VCV10..JPP |
1 | ||
| 16941 - HOSE, HYDRAULIC MOTOR RETURN, NO.1 | ||||
| 16941-62020 |
3VZFE..VCV10..JPP |
1 | ||
| 16941A - CLIP(FOR RETURN NO.1) | ||||
| 90467-16013 |
3VZFE..VCV10..JPP |
2 | ||
| 90467-16008 |
3VZFE..VCV10..JPP |
2 | ||
| 16941A - CLIP(FOR RETURN NO.1) | ||||
| 90467-16013 |
3VZFE..VCV10..JPP |
2 | ||
| 90467-16008 |
3VZFE..VCV10..JPP |
2 | ||
| 16960 - MOTOR ASSY, HYDRAULIC GEAR | ||||
| 16960-62010 |
3VZFE..VCV10..JPP |
1 | ||
| 16960 - MOTOR ASSY, HYDRAULIC GEAR | ||||
| 16960-62010 |
3VZFE..VCV10..JPP |
1 | ||
| 16961 - SHAFT, HYDRAULIC GEAR MOTOR | ||||
| 16961-50010 |
3VZFE..VCV10..JPP |
1 | ||
| 16962 - COVER, HYDRAULIC GEAR MOTOR | ||||
| 16962-62010 |
3VZFE..VCV10..JPP |
1 | ||
| 44402S - COOLER SUB-ASSY, OIL | ||||
| 44402-33010 |
VCV10..JPP |
1 | ||
| Common parts | ||||
| 90093-00807 | ||||
| 90096-90033 | ||||
| 90099-01093 | ||||
| 90099-01551 | ||||
| 90099-04120 | ||||
| 90099-14107 | ||||
| 90099-15035 | ||||
| 90119-06029 | ||||
| 90119-06183 | ||||
| 90119-06241 | ||||
| 90170-08032 | ||||
| 90179-06058 | ||||
| 90179-08191 | ||||
| 90401-16015 | ||||
| 91511-60812 | ||||
| 91512-60812 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
