VCV10L-AEMGKW (1991)
Toyota Camry (Sed)
(9106- )VCV10..JPP

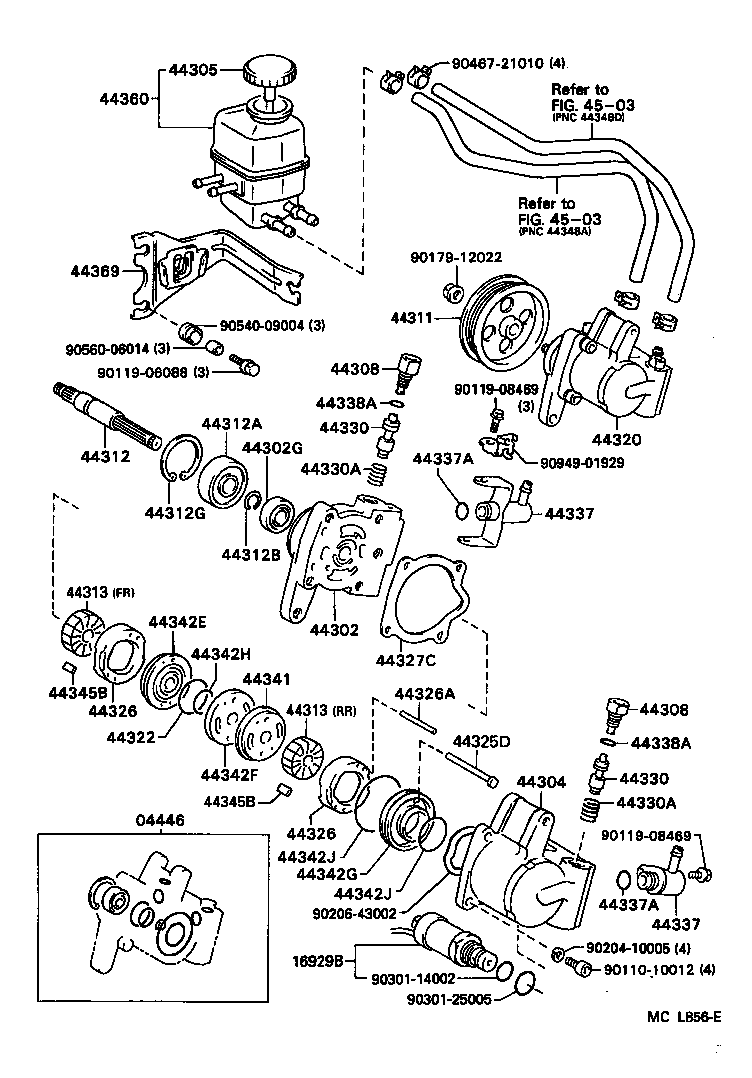

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-32022 |
VCV10..JPP |
1 | ||
| 04446-32021 |
VCV10..JPP |
1 | ||
| 04446-33011 |
VCV10..JPP |
1 | ||
| 16929B - VALVE, HYDRAULIC MOTOR CONTROL | ||||
| 16929-62020 |
3VZFE..VCV10..JPP |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-32071 |
VCV10..JPP |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-17007 |
VCV10..JPP |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-32010 |
VCV10..JPP |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-32030 |
SXV10,VCV10..JPP |
1 | ||
| 44305-32020 |
SXV10,VCV10..JPP |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-33040 |
VCV10..JPP FR |
1 | ||
| 44308-32060 |
VCV10..JPP RR |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-33040 |
VCV10..JPP FR |
1 | ||
| 44308-32060 |
VCV10..JPP RR |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-32060 |
VCV10..JPP |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-32030 |
VCV10..JPP OD=17.999-18.004 |
1 | ||
| 44312-32040 |
VCV10..JPP OD=17.994-17.999 |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 90363-17007 |
VCV10..JPP |
1 | ||
| 90363-17011 |
VCV10..JPP |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-15001 |
VCV10..JPP |
1 | ||
| 44312G - RING, SNAP, NO.2(FOR VANE PUMP SHAFT BEARING) | ||||
| 90521-51003 |
VCV10..JPP |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-26080 |
VCV10..JPP MARK 2 |
1 | ||
| 44313-26060 |
VCV10..JPP NO MARK |
1 | ||
| 44313-26100 |
VCV10..JPP MARK 4 |
1 | ||
| 44313-32010 |
VCV10..JPP NO MARK |
1 | ||
| 44313-32020 |
VCV10..JPP MARK 1 |
1 | ||
| 44313-26070 |
VCV10..JPP MARK 1 |
1 | ||
| 44313-26090 |
VCV10..JPP MARK 3 |
1 | ||
| 44313-32030 |
VCV10..JPP MARK 2 |
1 | ||
| 44313-26100 |
SXV10,VCV10..JPP MARK 4 |
1 | ||
| 44313-32050 |
VCV10..JPP MARK 4 |
1 | ||
| 44313-26060 |
SXV10,VCV10..JPP NO MARK |
1 | ||
| 44313-26070 |
SXV10,VCV10..JPP MARK 1 |
1 | ||
| 44313-26070 |
VCV10..JPP MARK 1 |
1 | ||
| 44313-26100 |
VCV10..JPP MARK 4 |
1 | ||
| 44313-26080 |
VCV10..JPP MARK 2 |
1 | ||
| 44313-26080 |
SXV10,VCV10..JPP MARK 2 |
1 | ||
| 44313-26090 |
VCV10..JPP MARK 3 |
1 | ||
| 44313-32040 |
VCV10..JPP MARK 3 |
1 | ||
| 44313-26060 |
VCV10..JPP NO MARK |
1 | ||
| 44313-26090 |
SXV10,VCV10..JPP MARK 3 |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-26080 |
VCV10..JPP MARK 2 |
1 | ||
| 44313-26060 |
VCV10..JPP NO MARK |
1 | ||
| 44313-26100 |
VCV10..JPP MARK 4 |
1 | ||
| 44313-32010 |
VCV10..JPP NO MARK |
1 | ||
| 44313-32020 |
VCV10..JPP MARK 1 |
1 | ||
| 44313-26070 |
VCV10..JPP MARK 1 |
1 | ||
| 44313-26090 |
VCV10..JPP MARK 3 |
1 | ||
| 44313-32030 |
VCV10..JPP MARK 2 |
1 | ||
| 44313-26100 |
SXV10,VCV10..JPP MARK 4 |
1 | ||
| 44313-32050 |
VCV10..JPP MARK 4 |
1 | ||
| 44313-26060 |
SXV10,VCV10..JPP NO MARK |
1 | ||
| 44313-26070 |
SXV10,VCV10..JPP MARK 1 |
1 | ||
| 44313-26070 |
VCV10..JPP MARK 1 |
1 | ||
| 44313-26100 |
VCV10..JPP MARK 4 |
1 | ||
| 44313-26080 |
VCV10..JPP MARK 2 |
1 | ||
| 44313-26080 |
SXV10,VCV10..JPP MARK 2 |
1 | ||
| 44313-26090 |
VCV10..JPP MARK 3 |
1 | ||
| 44313-32040 |
VCV10..JPP MARK 3 |
1 | ||
| 44313-26060 |
VCV10..JPP NO MARK |
1 | ||
| 44313-26090 |
SXV10,VCV10..JPP MARK 3 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-33030 |
VCV10..JPP |
1 | ||
| 44322 - SEAL, VANE PUMP SIDE PLATE | ||||
| 44322-32010 |
VCV10..JPP |
1 | ||
| 44325D - PIN, RING(FOR VANE PUMP CAM RING) | ||||
| 90253-04001 |
VCV10..JPP |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-32120 |
VCV10..JPP MARK 1,RR |
1 | ||
| 44325-32110 |
VCV10..JPP NO MARK,RR |
1 | ||
| 44325-33030 |
VCV10..JPP MARK 2,FR |
1 | ||
| 44325-33040 |
VCV10..JPP MARK 3,FR |
1 | ||
| 44325-32130 |
VCV10..JPP MARK 2,RR |
1 | ||
| 44325-33070 |
VCV10..JPP MARK 6,FR |
1 | ||
| 44325-32150 |
VCV10..JPP MARK 4,RR |
1 | ||
| 44325-33050 |
VCV10..JPP MARK 4,FR |
1 | ||
| 44325-32140 |
VCV10..JPP MARK 3,RR |
1 | ||
| 44325-32120 |
VCV10..JPP MARK 1 |
1 | ||
| 44325-33040 |
VCV10..JPP MARK 3 |
1 | ||
| 44325-33060 |
VCV10..JPP MARK 5,FR |
1 | ||
| 44325-33070 |
VCV10..JPP MARK 6 |
1 | ||
| 44325-33050 |
VCV10..JPP MARK 4 |
1 | ||
| 44325-33060 |
VCV10..JPP MARK 5 |
1 | ||
| 44325-32130 |
VCV10..JPP MARK 2 |
1 | ||
| 44325-33030 |
VCV10..JPP MARK 2 |
1 | ||
| 44325-32140 |
VCV10..JPP MARK 3 |
1 | ||
| 44325-32110 |
VCV10..JPP NO MARK |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-32120 |
VCV10..JPP MARK 1,RR |
1 | ||
| 44325-32110 |
VCV10..JPP NO MARK,RR |
1 | ||
| 44325-33030 |
VCV10..JPP MARK 2,FR |
1 | ||
| 44325-33040 |
VCV10..JPP MARK 3,FR |
1 | ||
| 44325-32130 |
VCV10..JPP MARK 2,RR |
1 | ||
| 44325-33070 |
VCV10..JPP MARK 6,FR |
1 | ||
| 44325-32150 |
VCV10..JPP MARK 4,RR |
1 | ||
| 44325-33050 |
VCV10..JPP MARK 4,FR |
1 | ||
| 44325-32140 |
VCV10..JPP MARK 3,RR |
1 | ||
| 44325-32120 |
VCV10..JPP MARK 1 |
1 | ||
| 44325-33040 |
VCV10..JPP MARK 3 |
1 | ||
| 44325-33060 |
VCV10..JPP MARK 5,FR |
1 | ||
| 44325-33070 |
VCV10..JPP MARK 6 |
1 | ||
| 44325-33050 |
VCV10..JPP MARK 4 |
1 | ||
| 44325-33060 |
VCV10..JPP MARK 5 |
1 | ||
| 44325-32130 |
VCV10..JPP MARK 2 |
1 | ||
| 44325-33030 |
VCV10..JPP MARK 2 |
1 | ||
| 44325-32140 |
VCV10..JPP MARK 3 |
1 | ||
| 44325-32110 |
VCV10..JPP NO MARK |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04083 |
VCV10..JPP L=59.5,OD=4 |
1 | ||
| 44327C - GASKET, VANE PUMP HOUSING | ||||
| 44327-32010 |
VCV10..JPP |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-33060 |
VCV10..JPP MARK F,FR |
1 | ||
| 44330-33140 |
VCV10..JPP MARK B,RR |
1 | ||
| 44330-33040 |
VCV10..JPP MARK D,FR |
1 | ||
| 44330-33050 |
VCV10..JPP MARK E,FR |
1 | ||
| 44330-33020 |
VCV10..JPP MARK B,FR |
1 | ||
| 44330-33130 |
VCV10..JPP MARK A,RR |
1 | ||
| 44330-33030 |
VCV10..JPP MARK C,FR |
1 | ||
| 44330-33010 |
VCV10..JPP MARK A,FR |
1 | ||
| 44330-33150 |
VCV10..JPP MARK C,RR |
1 | ||
| 44330-33180 |
VCV10..JPP MARK F,RR |
1 | ||
| 44330-33030 |
VCV10..JPP MARK C |
1 | ||
| 44330-33170 |
VCV10..JPP MARK E,RR |
1 | ||
| 44330-33020 |
VCV10..JPP MARK B |
1 | ||
| 44330-33050 |
VCV10..JPP MARK E |
1 | ||
| 44330-33180 |
VCV10..JPP MARK F |
1 | ||
| 44330-33160 |
VCV10..JPP MARK D,RR |
1 | ||
| 44330-33170 |
VCV10..JPP MARK E |
1 | ||
| 44330-33040 |
VCV10..JPP MARK D |
1 | ||
| 44330-33160 |
VCV10..JPP MARK D |
1 | ||
| 44330-33010 |
VCV10..JPP MARK A |
1 | ||
| 44330-33150 |
VCV10..JPP MARK C |
1 | ||
| 44330-33130 |
VCV10..JPP MARK A |
1 | ||
| 44330-33140 |
VCV10..JPP MARK B |
1 | ||
| 44330-33060 |
VCV10..JPP MARK F |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-33060 |
VCV10..JPP MARK F,FR |
1 | ||
| 44330-33140 |
VCV10..JPP MARK B,RR |
1 | ||
| 44330-33040 |
VCV10..JPP MARK D,FR |
1 | ||
| 44330-33050 |
VCV10..JPP MARK E,FR |
1 | ||
| 44330-33020 |
VCV10..JPP MARK B,FR |
1 | ||
| 44330-33130 |
VCV10..JPP MARK A,RR |
1 | ||
| 44330-33030 |
VCV10..JPP MARK C,FR |
1 | ||
| 44330-33010 |
VCV10..JPP MARK A,FR |
1 | ||
| 44330-33150 |
VCV10..JPP MARK C,RR |
1 | ||
| 44330-33180 |
VCV10..JPP MARK F,RR |
1 | ||
| 44330-33030 |
VCV10..JPP MARK C |
1 | ||
| 44330-33170 |
VCV10..JPP MARK E,RR |
1 | ||
| 44330-33020 |
VCV10..JPP MARK B |
1 | ||
| 44330-33050 |
VCV10..JPP MARK E |
1 | ||
| 44330-33180 |
VCV10..JPP MARK F |
1 | ||
| 44330-33160 |
VCV10..JPP MARK D,RR |
1 | ||
| 44330-33170 |
VCV10..JPP MARK E |
1 | ||
| 44330-33040 |
VCV10..JPP MARK D |
1 | ||
| 44330-33160 |
VCV10..JPP MARK D |
1 | ||
| 44330-33010 |
VCV10..JPP MARK A |
1 | ||
| 44330-33150 |
VCV10..JPP MARK C |
1 | ||
| 44330-33130 |
VCV10..JPP MARK A |
1 | ||
| 44330-33140 |
VCV10..JPP MARK B |
1 | ||
| 44330-33060 |
VCV10..JPP MARK F |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
VCV10..JPP |
2 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
VCV10..JPP |
2 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-33010 |
VCV10..JPP FR |
1 | ||
| 44337-33020 |
VCV10..JPP RR |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-33010 |
VCV10..JPP FR |
1 | ||
| 44337-33020 |
VCV10..JPP RR |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-11010 |
VCV10..JPP FR |
1 | ||
| 96711-19016 |
VCV10..JPP RR |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-11010 |
VCV10..JPP FR |
1 | ||
| 96711-19016 |
VCV10..JPP RR |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19003 |
VCV10..JPP ID=19.5,OD=22.5 |
2 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19003 |
VCV10..JPP ID=19.5,OD=22.5 |
2 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-32021 |
VCV10..JPP |
1 | ||
| 44342E - PLATE, VANE PUMP SIDE, REAR NO.1 | ||||
| 44342-32021 |
VCV10..JPP |
1 | ||
| 44342F - PLATE, VANE PUMP SIDE, REAR NO.2 | ||||
| 44342-32030 |
VCV10..JPP |
1 | ||
| 44342G - PLATE, VANE PUMP SIDE, REAR NO.3 | ||||
| 44342-32041 |
VCV10..JPP |
1 | ||
| 44342H - RING, O(FOR VANE PUMP SIDE PLATE REAR NO.1) | ||||
| 90301-15008 |
VCV10..JPP |
1 | ||
| 44342J - RING, O(FOR VANE PUMP SIDE PLATE REAR NO.2) | ||||
| 90301-56003 |
VCV10..JPP OD=60.5,ID=56.5 |
1 | ||
| 90301-36007 |
VCV10..JPP OD=40.16,ID=36.6 |
1 | ||
| 44342J - RING, O(FOR VANE PUMP SIDE PLATE REAR NO.2) | ||||
| 90301-56003 |
VCV10..JPP OD=60.5,ID=56.5 |
1 | ||
| 90301-36007 |
VCV10..JPP OD=40.16,ID=36.6 |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-12050 |
VCV10..JPP L=14.989,RR |
1 | ||
| 44345-12020 |
VCV10..JPP L=14.995,RR |
10 | ||
| 44345-32060 |
VCV10..JPP ROTOR NO MARK,FR |
10 | ||
| 44345-26030 |
VCV10..JPP L=14.996,FR |
10 | ||
| 44345-26010 |
VCV10..JPP L=15.000,FR |
10 | ||
| 44345-12030 |
VCV10..JPP L=14.993,RR |
10 | ||
| 44345-12010 |
VCV10..JPP L=14.997,RR |
10 | ||
| 44345-12040 |
VCV10..JPP L=14.991,RR |
10 | ||
| 44345-26020 |
VCV10..JPP L=14.998 |
10 | ||
| 44345-32060 |
VCV10..JPP ROTOR NO MARK |
10 | ||
| 44345-12010 |
SXV10,VCV10..JPP L=14.997 |
10 | ||
| 44345-32070 |
VCV10..JPP ROTOR MARK 1,FR |
10 | ||
| 44345-26010 |
VCV10..JPP L=15.000 |
10 | ||
| 44345-26020 |
VCV10..JPP L=14.998,FR |
10 | ||
| 44345-60010 |
VCV10..JPP L=15.000 |
10 | ||
| 44345-12040 |
SXV10,VCV10..JPP L=14.991 |
10 | ||
| 44345-26030 |
VCV10..JPP L=14.996 |
10 | ||
| 44345-32090 |
VCV10..JPP ROTOR MARK 7 |
10 | ||
| 44345-12020 |
SXV10,VCV10..JPP L=14.995 |
10 | ||
| 44345-12030 |
SXV10,VCV10..JPP L=14.993 |
10 | ||
| 44345-32070 |
VCV10..JPP ROTOR MARK 1 |
10 | ||
| 44345-60020 |
VCV10..JPP L=14.998 |
10 | ||
| 44345-32080 |
VCV10..JPP ROTOR MARK 6 |
10 | ||
| 44345-60030 |
VCV10..JPP L=14.996 |
10 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-12050 |
VCV10..JPP L=14.989,RR |
1 | ||
| 44345-12020 |
VCV10..JPP L=14.995,RR |
10 | ||
| 44345-32060 |
VCV10..JPP ROTOR NO MARK,FR |
10 | ||
| 44345-26030 |
VCV10..JPP L=14.996,FR |
10 | ||
| 44345-26010 |
VCV10..JPP L=15.000,FR |
10 | ||
| 44345-12030 |
VCV10..JPP L=14.993,RR |
10 | ||
| 44345-12010 |
VCV10..JPP L=14.997,RR |
10 | ||
| 44345-12040 |
VCV10..JPP L=14.991,RR |
10 | ||
| 44345-26020 |
VCV10..JPP L=14.998 |
10 | ||
| 44345-32060 |
VCV10..JPP ROTOR NO MARK |
10 | ||
| 44345-12010 |
SXV10,VCV10..JPP L=14.997 |
10 | ||
| 44345-32070 |
VCV10..JPP ROTOR MARK 1,FR |
10 | ||
| 44345-26010 |
VCV10..JPP L=15.000 |
10 | ||
| 44345-26020 |
VCV10..JPP L=14.998,FR |
10 | ||
| 44345-60010 |
VCV10..JPP L=15.000 |
10 | ||
| 44345-12040 |
SXV10,VCV10..JPP L=14.991 |
10 | ||
| 44345-26030 |
VCV10..JPP L=14.996 |
10 | ||
| 44345-32090 |
VCV10..JPP ROTOR MARK 7 |
10 | ||
| 44345-12020 |
SXV10,VCV10..JPP L=14.995 |
10 | ||
| 44345-12030 |
SXV10,VCV10..JPP L=14.993 |
10 | ||
| 44345-32070 |
VCV10..JPP ROTOR MARK 1 |
10 | ||
| 44345-60020 |
VCV10..JPP L=14.998 |
10 | ||
| 44345-32080 |
VCV10..JPP ROTOR MARK 6 |
10 | ||
| 44345-60030 |
VCV10..JPP L=14.996 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-33010 |
VCV10..JPP |
1 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-33010 |
VCV10..JPP |
1 | ||
| Common parts | ||||
| 90110-10012 | ||||
| 90119-06088 | ||||
| 90119-08469 | ||||
| 90179-12022 | ||||
| 90204-10005 | ||||
| 90206-43002 | ||||
| 90301-14002 | ||||
| 90301-25005 | ||||
| 90467-21010 | ||||
| 90540-09004 | ||||
| 90560-06014 | ||||
| 90949-01929 | ||||
| Linked diagrams | ||||
| 4503 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
