Toyota Camry (sed) SXV10 HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

Manufacturers Home
Toyota
EU
CAMRY (SED)
SXV10R-AEPNKW (1991)
8715 - HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

SXV10R-AEPNKW (1991)

Toyota Camry (Sed)

Production Jun 1991 - Aug 1996

Engine 5SFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9106-9608)JPP

Click highlighted areas on diagram

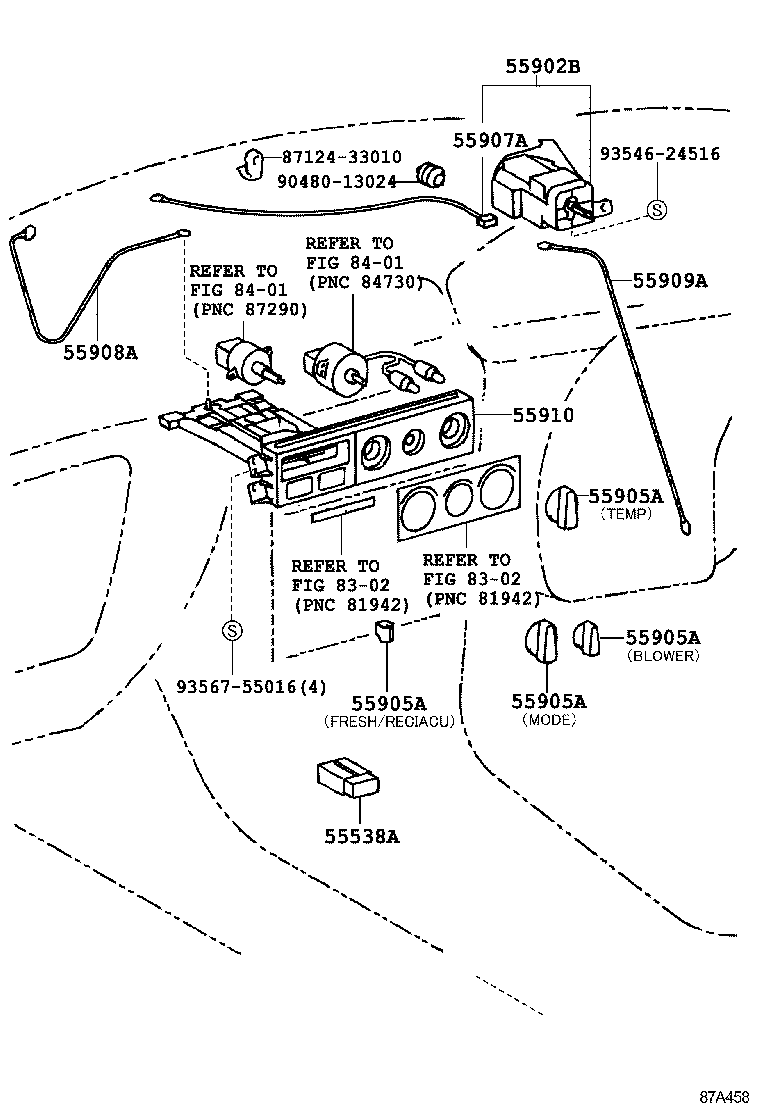

CONTROL--LEVER TYPE

Part #	Description	Period	Qty
55538A - COVER, COOLER SWITCH HOLE
55538-33010	SXV10..JPP	06/1991 - 08/1996	1
55902B - CONTROL SUB-ASSY, HEATER
55902-33030	SXV10..JPP..RHD	06/1991 - 07/1991	1
55902-33031	SXV10..JPP..RHD	07/1991 - 03/1992	1
55902-33032	SXV10..JPP..RHD	03/1992 - 08/1996	1
55905A - KNOB, HEATER CONTROL
55905-33030	SXV10..JPP..RHD MODE & TEMP	06/1991 - 08/1994	1
55905-33040	SXV10..JPP BLOWER SWITCH	06/1991 - 08/1994	1
55905-89113	SXV10..JPP FRESH/RECIRCU	06/1991 - 08/1996	1
55905-33030	SXV10..JPP MODE	08/1994 - 08/1996	1
55905-33040	SXV10..JPP BLOWER	08/1994 - 08/1996	1
55905A - KNOB, HEATER CONTROL
55905-33030	SXV10..JPP..RHD MODE & TEMP	06/1991 - 08/1994	1
55905-33040	SXV10..JPP BLOWER SWITCH	06/1991 - 08/1994	1
55905-89113	SXV10..JPP FRESH/RECIRCU	06/1991 - 08/1996	1
55905-33030	SXV10..JPP MODE	08/1994 - 08/1996	1
55905-33040	SXV10..JPP BLOWER	08/1994 - 08/1996	1
55905A - KNOB, HEATER CONTROL
55905-33030	SXV10..JPP..RHD MODE & TEMP	06/1991 - 08/1994	1
55905-33040	SXV10..JPP BLOWER SWITCH	06/1991 - 08/1994	1
55905-89113	SXV10..JPP FRESH/RECIRCU	06/1991 - 08/1996	1
55905-33030	SXV10..JPP MODE	08/1994 - 08/1996	1
55905-33040	SXV10..JPP BLOWER	08/1994 - 08/1996	1
55905A - KNOB, HEATER CONTROL
55905-33030	SXV10..JPP..RHD MODE & TEMP	06/1991 - 08/1994	1
55905-33040	SXV10..JPP BLOWER SWITCH	06/1991 - 08/1994	1
55905-89113	SXV10..JPP FRESH/RECIRCU	06/1991 - 08/1996	1
55905-33030	SXV10..JPP MODE	08/1994 - 08/1996	1
55905-33040	SXV10..JPP BLOWER	08/1994 - 08/1996	1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-33010	SXV10,VCV10..JPP..RHD	06/1991 - 08/1993	1
55907-33010	SXV10..JPP..RHD	08/1993 - 08/1996	1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-33020	SXV10..JPP..RHD	08/1994 - 08/1996	1
55908-33010	SXV10..JPP	06/1991 - 01/1992	1
55908-33010	SXV10..JPP..RHD	01/1992 - 08/1994	1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-33010	SXV10,VCV10..JPP	06/1991 - 01/1992	1
55909-33010	SXV10..JPP..RHD	08/1993 - 08/1996	1
55909-33010	SXV10,VCV10..JPP..RHD	01/1992 - 08/1993	1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-33010	SXV10..JPP..RHD	06/1991 - 08/1996	1
Common parts
87124-33010
90480-13024
93546-24516
93567-55016
Linked diagrams
8302
8401

ILLUST NO. 1 OF 3(9106-9608)JPP

Click highlighted areas on diagram

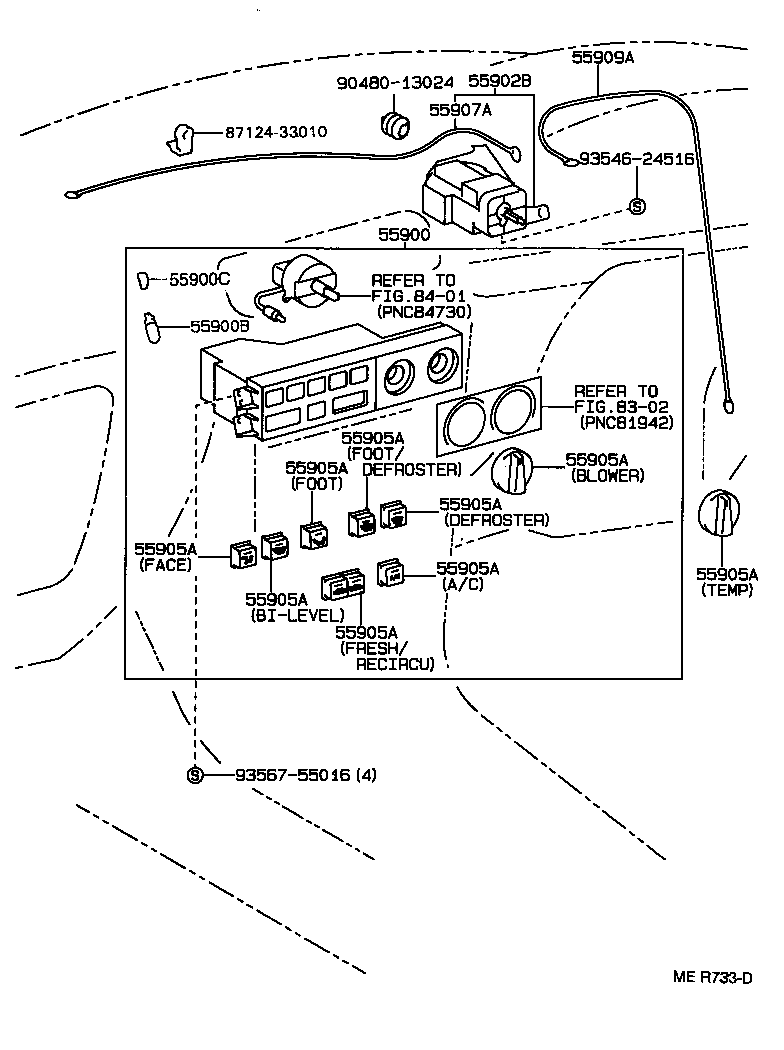

CONTROL--PUSH TYPE

Part #	Description	Period	Qty
55902B - CONTROL SUB-ASSY, HEATER
55902-33030	SXV10..JPP..RHD	06/1991 - 07/1991	1
55902-33031	SXV10..JPP..RHD	07/1991 - 03/1992	1
55902-33032	SXV10..JPP..RHD	03/1992 - 08/1996	1
55905A - KNOB, HEATER CONTROL
55905-33030	SXV10..JPP..RHD MODE & TEMP	06/1991 - 08/1994	1
55905-33040	SXV10..JPP BLOWER SWITCH	06/1991 - 08/1994	1
55905-89113	SXV10..JPP FRESH/RECIRCU	06/1991 - 08/1996	1
55905-33030	SXV10..JPP MODE	08/1994 - 08/1996	1
55905-33040	SXV10..JPP BLOWER	08/1994 - 08/1996	1
55905A - KNOB, HEATER CONTROL
55905-33030	SXV10..JPP..RHD MODE & TEMP	06/1991 - 08/1994	1
55905-33040	SXV10..JPP BLOWER SWITCH	06/1991 - 08/1994	1
55905-89113	SXV10..JPP FRESH/RECIRCU	06/1991 - 08/1996	1
55905-33030	SXV10..JPP MODE	08/1994 - 08/1996	1
55905-33040	SXV10..JPP BLOWER	08/1994 - 08/1996	1
55905A - KNOB, HEATER CONTROL
55905-33030	SXV10..JPP..RHD MODE & TEMP	06/1991 - 08/1994	1
55905-33040	SXV10..JPP BLOWER SWITCH	06/1991 - 08/1994	1
55905-89113	SXV10..JPP FRESH/RECIRCU	06/1991 - 08/1996	1
55905-33030	SXV10..JPP MODE	08/1994 - 08/1996	1
55905-33040	SXV10..JPP BLOWER	08/1994 - 08/1996	1
55905A - KNOB, HEATER CONTROL
55905-33030	SXV10..JPP..RHD MODE & TEMP	06/1991 - 08/1994	1
55905-33040	SXV10..JPP BLOWER SWITCH	06/1991 - 08/1994	1
55905-89113	SXV10..JPP FRESH/RECIRCU	06/1991 - 08/1996	1
55905-33030	SXV10..JPP MODE	08/1994 - 08/1996	1
55905-33040	SXV10..JPP BLOWER	08/1994 - 08/1996	1
55905A - KNOB, HEATER CONTROL
55905-33030	SXV10..JPP..RHD MODE & TEMP	06/1991 - 08/1994	1
55905-33040	SXV10..JPP BLOWER SWITCH	06/1991 - 08/1994	1
55905-89113	SXV10..JPP FRESH/RECIRCU	06/1991 - 08/1996	1
55905-33030	SXV10..JPP MODE	08/1994 - 08/1996	1
55905-33040	SXV10..JPP BLOWER	08/1994 - 08/1996	1
55905A - KNOB, HEATER CONTROL
55905-33030	SXV10..JPP..RHD MODE & TEMP	06/1991 - 08/1994	1
55905-33040	SXV10..JPP BLOWER SWITCH	06/1991 - 08/1994	1
55905-89113	SXV10..JPP FRESH/RECIRCU	06/1991 - 08/1996	1
55905-33030	SXV10..JPP MODE	08/1994 - 08/1996	1
55905-33040	SXV10..JPP BLOWER	08/1994 - 08/1996	1
55905A - KNOB, HEATER CONTROL
55905-33030	SXV10..JPP..RHD MODE & TEMP	06/1991 - 08/1994	1
55905-33040	SXV10..JPP BLOWER SWITCH	06/1991 - 08/1994	1
55905-89113	SXV10..JPP FRESH/RECIRCU	06/1991 - 08/1996	1
55905-33030	SXV10..JPP MODE	08/1994 - 08/1996	1
55905-33040	SXV10..JPP BLOWER	08/1994 - 08/1996	1
55905A - KNOB, HEATER CONTROL
55905-33030	SXV10..JPP..RHD MODE & TEMP	06/1991 - 08/1994	1
55905-33040	SXV10..JPP BLOWER SWITCH	06/1991 - 08/1994	1
55905-89113	SXV10..JPP FRESH/RECIRCU	06/1991 - 08/1996	1
55905-33030	SXV10..JPP MODE	08/1994 - 08/1996	1
55905-33040	SXV10..JPP BLOWER	08/1994 - 08/1996	1
55905A - KNOB, HEATER CONTROL
55905-33030	SXV10..JPP..RHD MODE & TEMP	06/1991 - 08/1994	1
55905-33040	SXV10..JPP BLOWER SWITCH	06/1991 - 08/1994	1
55905-89113	SXV10..JPP FRESH/RECIRCU	06/1991 - 08/1996	1
55905-33030	SXV10..JPP MODE	08/1994 - 08/1996	1
55905-33040	SXV10..JPP BLOWER	08/1994 - 08/1996	1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-33010	SXV10,VCV10..JPP..RHD	06/1991 - 08/1993	1
55907-33010	SXV10..JPP..RHD	08/1993 - 08/1996	1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-33010	SXV10,VCV10..JPP	06/1991 - 01/1992	1
55909-33010	SXV10..JPP..RHD	08/1993 - 08/1996	1
55909-33010	SXV10,VCV10..JPP..RHD	01/1992 - 08/1993	1
Common parts
87124-33010
90480-13024
93546-24516
93567-55016
Linked diagrams
8302
8401

ILLUST NO. 2 OF 3(9106-9608)JPP..RHD

Click highlighted areas on diagram

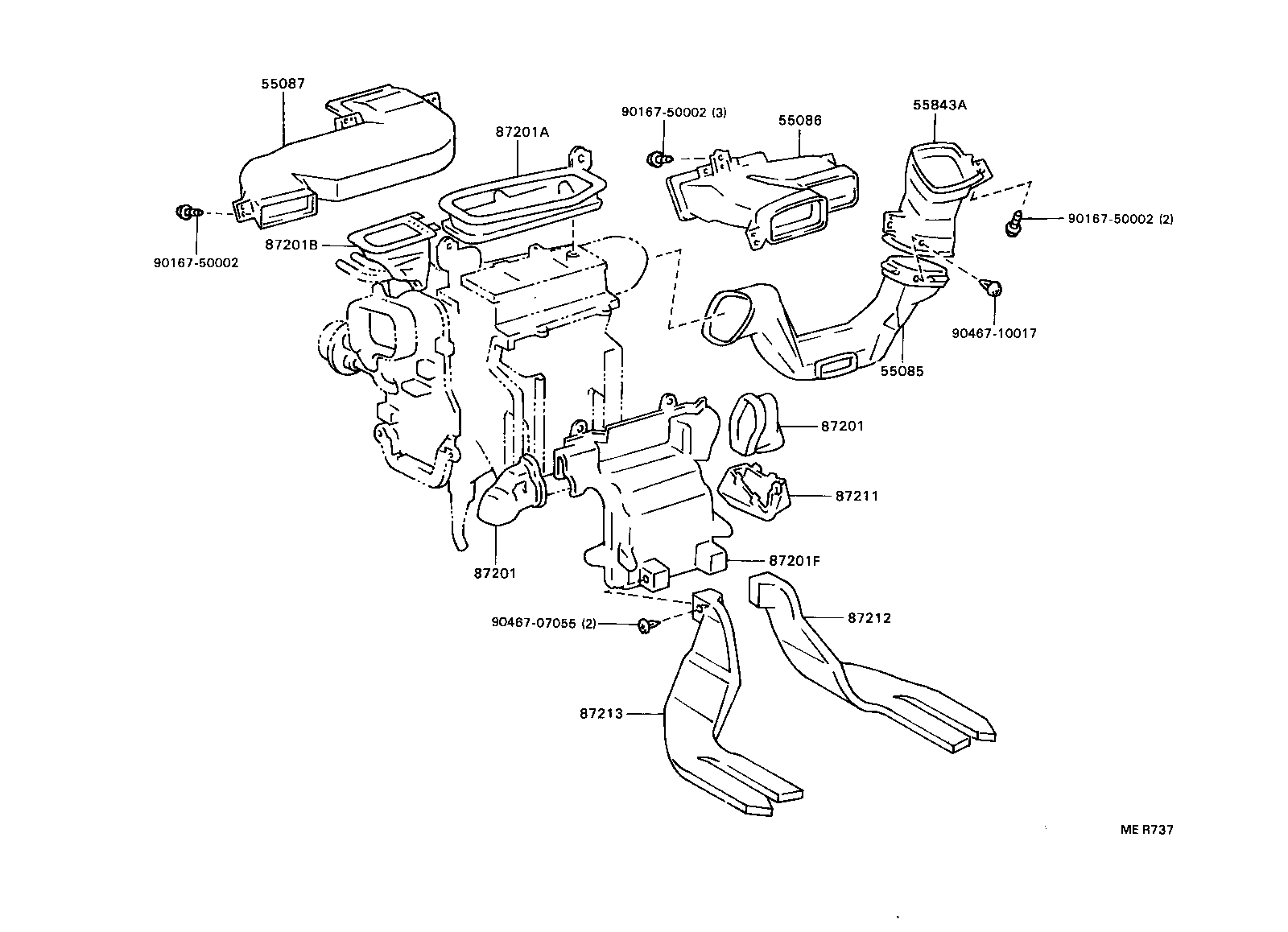

AIR DUCT

Part #	Description	Period	Qty
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55085-33040	SXV10,VCV10..JPP..RHD	09/1992 - 08/1996	1
55085-33030	SXV10,VCV10..JPP..RHD	06/1991 - 09/1992	1
55085-33040	SXV10,VCV10..JPP..RHD W(AIR CONDITIONER)	06/1991 - 09/1992	1
55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3
55086-33020	SXV10,VCV10..JPP..RHD	06/1991 - 08/1996	1
55087 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.4
55087-33020	SXV10,VCV10..JPP..RHD	06/1991 - 08/1996	1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-33030	SXV10,VCV10..JPP..RHD	06/1991 - 08/1996	1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-33010	SXV10,VCV10..JPP..RHD DRIVER	06/1991 - 08/1996	1
87201-33020	SXV10,VCV10..JPP..RHD PASSENGER	06/1991 - 08/1996	1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-33010	SXV10,VCV10..JPP..RHD DRIVER	06/1991 - 08/1996	1
87201-33020	SXV10,VCV10..JPP..RHD PASSENGER	06/1991 - 08/1996	1
87201A - DUCT SUB-ASSY, AIR
87201-33040	SXV10,VCV10..JPP..RHD	06/1991 - 08/1996	1
87201B - DUCT SUB-ASSY, AIR, NO.2
87201-33030	SXV10,VCV10..JPP..RHD	06/1991 - 08/1996	1
87201F - DUCT SUB-ASSY, AIR, NO.3
87201-33050	SXV10,VCV10..JPP..RHD	06/1991 - 08/1996	1
87211 - DUCT, AIR, NO.1
87211-33020	SXV10,VCV10..JPP..RHD	06/1991 - 08/1996	1
87212 - DUCT, AIR, REAR NO.1
87212-33010	SXV10,VCV10..JPP	06/1991 - 08/1996	1
87213 - DUCT, AIR, REAR NO.2
87213-33010	SXV10,VCV10..JPP	06/1991 - 08/1996	1
Common parts
90167-50002
90467-07055
90467-10017

ILLUST NO. 3 OF 3(9308-9608)JPP

Click highlighted areas on diagram

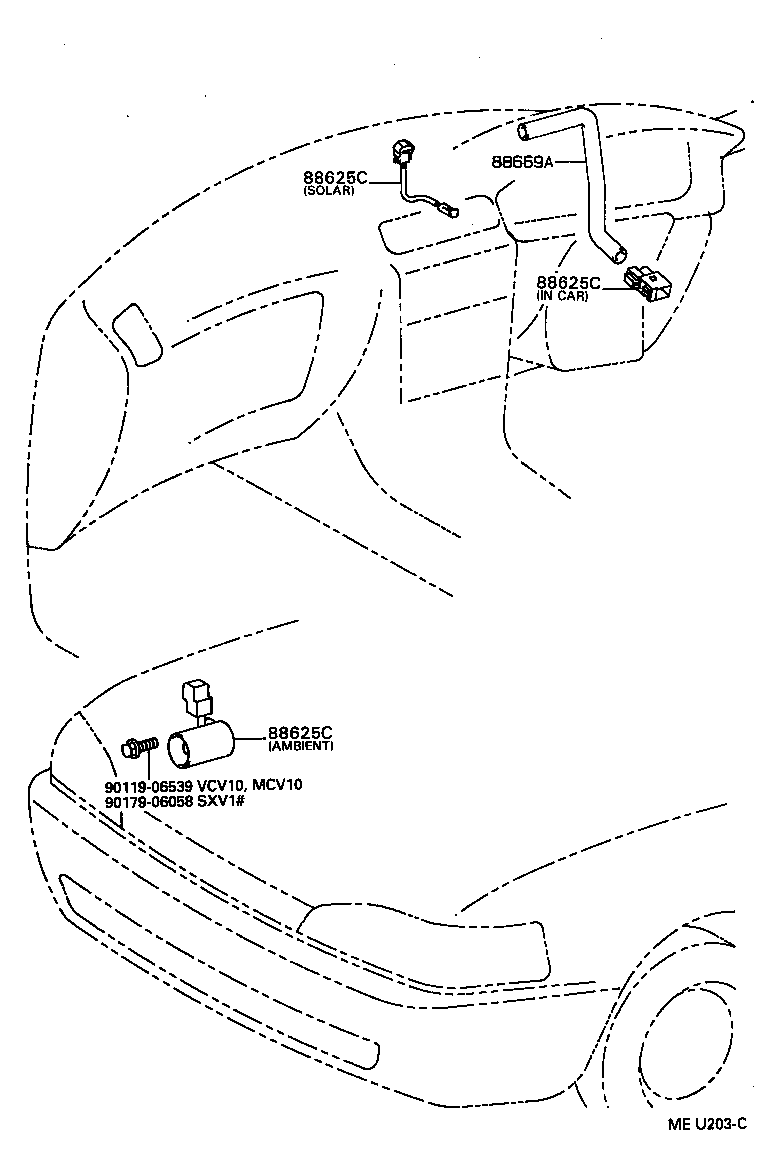

AUTO AIR CONDITIONER SENSOR

Part #	Description	Period	Qty	Price
Common parts
90119-06539
90179-06058
