SXV10R-AEMNKW (1991)

Toyota Camry (Sed)

Production Jun 1991 - Aug 1996
Engine 5SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )SXV10..JPP..MTM

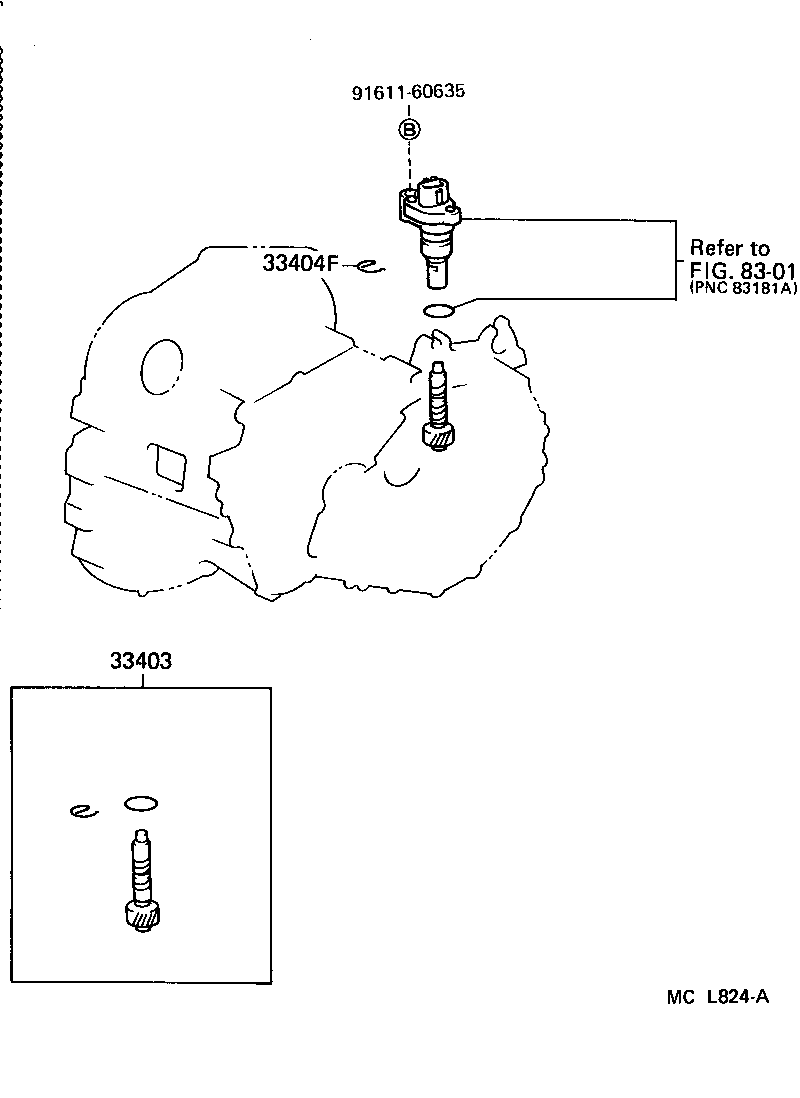

Click highlighted areas on diagram

S53

diagram 33403 33404F 8301 9161160635
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-39265

SXV10..JPP..MTM

N=22,MARK 22:27

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

SXV10,VCV10..JPP..MTM

 1
Common parts
91611-60635
Linked diagrams
8301
