SXV10L-AEPDKW (1991)

Toyota Camry (Sed)

Production Jun 1991 - Aug 1996
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )5SFE..JPP

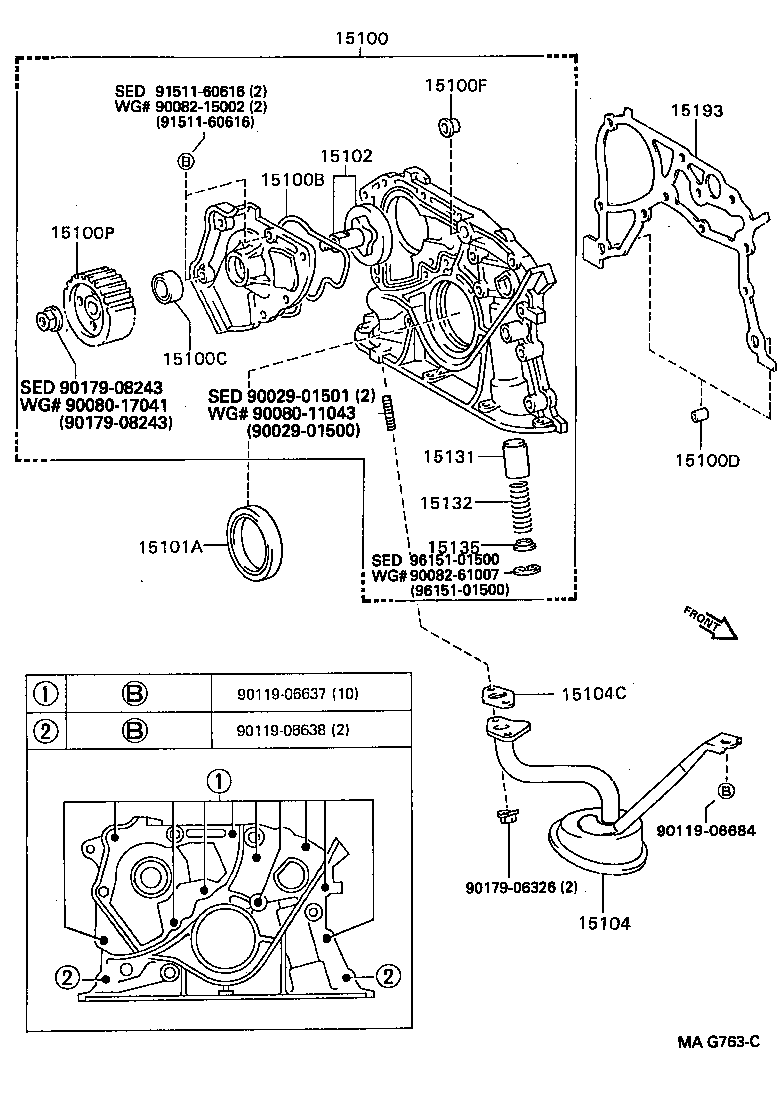

Click highlighted areas on diagram

diagram 15100 15100B 15100C 15100D 15100F 15100P 15101A 15102 15104 15104C 15131 15132 15135 15193 9002901500 9002901501 9008011043 9008017041 9008215002 9008261007 9011906637 9011906638 9011906684 9017906326 9017908243 9017908243 9151160616 9151160616 9615101500 9615101500
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-74020

5SFE..SXV10..JPP

 1
15100-74040

5SFE..SXV10..JPP

 1
15100B - RING, O(FOR OIL PUMP)
15188-88382

5SFE..SXV10..JPP

 1
15188-63010

5SFE..SXV10..JPP

 1
15100C - SEAL(FOR OIL PUMP)
15165-74020

5SFE..SXV10..JPP

 1
15165-70010

5SFE..SXV10..JPP

 1
15100D - PIN(FOR OIL PUMP SET)
90253-09001

5SFE..SXV10..JPP

 2
15100F - BUSH (FOR OIL PUMP)
90029-38302

5SFE..SXV10..JPP

 1
15100P - PULLEY, OIL PUMP DRIVE SHAFT
13524-74020

5SFE..SXV10..JPP

 1
15101A - SEAL(FOR CRANKSHAFT)
90311-42026

5SFE..SXV10..JPP

 1
15102 - ROTOR SET, OIL PUMP
15102-74020

5SFE..SXV10..JPP

 1
15104 - STRAINER SUB-ASSY, OIL
15104-03030

5SFE..SXV10..JPP

 1
15104-74060

5SFE..SXV10..JPP

 1
15104-03031

5SFE..SXV10..JPP

 1
15104C - GASKET(FOR OIL STRAINER)
15149-74020

5SFE..SXV10..JPP

 1
15149-74030

5SFE..SXV10..JPP

 1
15131 - VALVE, OIL PUMP RELIEF
15131-63011

5SFE..SXV10..JPP

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-88380

5SFE..SXV10..JPP

 1
15135 - RETAINER, OIL PUMP RELIEF VALVE
15135-15010

5SFE..SXV10..JPP

 1
15193 - GASKET, OIL PUMP
15197-63021

5SFE..SXV10..JPP

 1
15197-74030

5SFE..SXV10..JPP

 1
15197-74040

5SFE..SXV10..JPP

 1
Common parts
90029-01500
90029-01501
90080-11043
90080-17041
90082-15002
90082-61007
90119-06637
90119-06638
90119-06684
90179-06326
90179-08243
91511-60616
96151-01500
