SXV10L-AEMNKW (1991)

Toyota Camry (Sed)

Production Jun 1991 - Aug 1996
Engine 5SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )5SFE..JPP

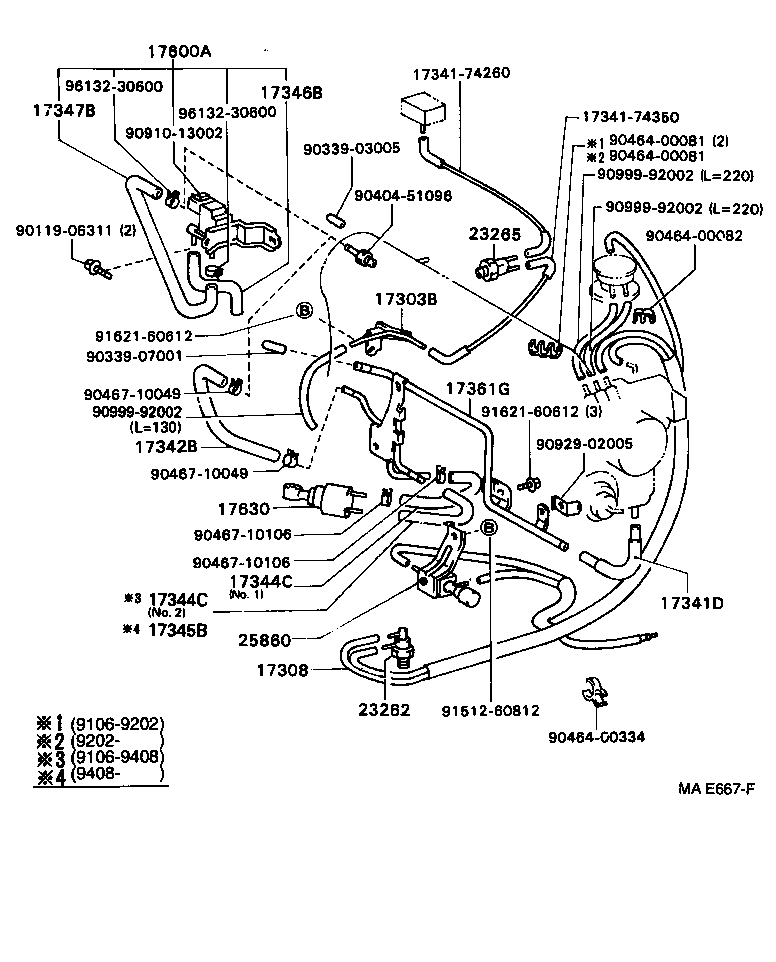

Click highlighted areas on diagram

diagram 17303B 17308 1734174260 1734174350 17341D 17342B 17344C 17344C 17345B 17346B 17347B 17361G 17600A 17630 23262 23265 25860 9011906311 9033903005 9033907001 9040451096 9046400081 9046400081 9046400082 9046400334 9046710049 9046710049 9046710106 9046710106 9091013002 9092902005 9099992002 9099992002 9099992002 9151260812 9162160612 9162160612 9613230600 9613230600
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-74040

5SFE..SXV10..JPP

 1
17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)
17308-74130

5SFE..SXV10..JPP

 1
17308-74131

5SFE..SXV10..JPP

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-74340

5SFE..SXV10..JPP

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17343-74040

5SFE..SXV10..JPP

 1
17344C - HOSE, NO.4(FOR IDLE-UP)
17344-74060

5SFE..SXV10..JPP

NO.1

 1
17344-74041

5SFE..SXV10..JPP

 2
17345-74050

5SFE..SXV10..JPP

NO.2

 1
17344-74060

5SFE..SXV10..JPP

 1
17344C - HOSE, NO.4(FOR IDLE-UP)
17344-74060

5SFE..SXV10..JPP

NO.1

 1
17344-74041

5SFE..SXV10..JPP

 2
17345-74050

5SFE..SXV10..JPP

NO.2

 1
17344-74060

5SFE..SXV10..JPP

 1
17345B - HOSE, NO.5(FOR IDLE-UP)
17345-74050

5SFE..SXV10..JPP

 1
17346B - HOSE, AIR, NO.6
17346-74050

5SFE..SXV10..JPP

 1
17347B - HOSE, AIR, NO.7
17347-74020

5SFE..SXV10..JPP

 1
17361G - TUBE, AIR(FOR IDLE-UP)
17361-74090

5SFE..SXV10..JPP

 1
17600A - VALVE ASSY, AIR BY-PASS W/HOSE
17600-74020

5SFE..SXV10..JPP

 1
17630 - VALVE ASSY, AIR CONTROL
17630-74050

5SFE..SXV10..JPP

 1
17630-74040

5SFE..SXV10..JPP

 1
17630-74050

5SFE..SXV10..JPP

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05068

5SFE..SXV10..JPP

 1
23265 - FILTER, GAS, NO.1
90917-11023

5SFE..SXV10..JPP

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-74050

5SFE..SXV10..JPP

 1
Common parts
17341-74260
17341-74350
90119-06311
90339-03005
90339-07001
90404-51096
90464-00081
90464-00082
90464-00334
90467-10049
90467-10106
90910-13002
90929-02005
90999-92002
91512-60812
91621-60612
96132-30600
