SXV10L-AEMDKW (1991)
Toyota Camry (Sed)
Production
Jun 1991
-
Aug 1996
Engine
5SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9106- )JPP

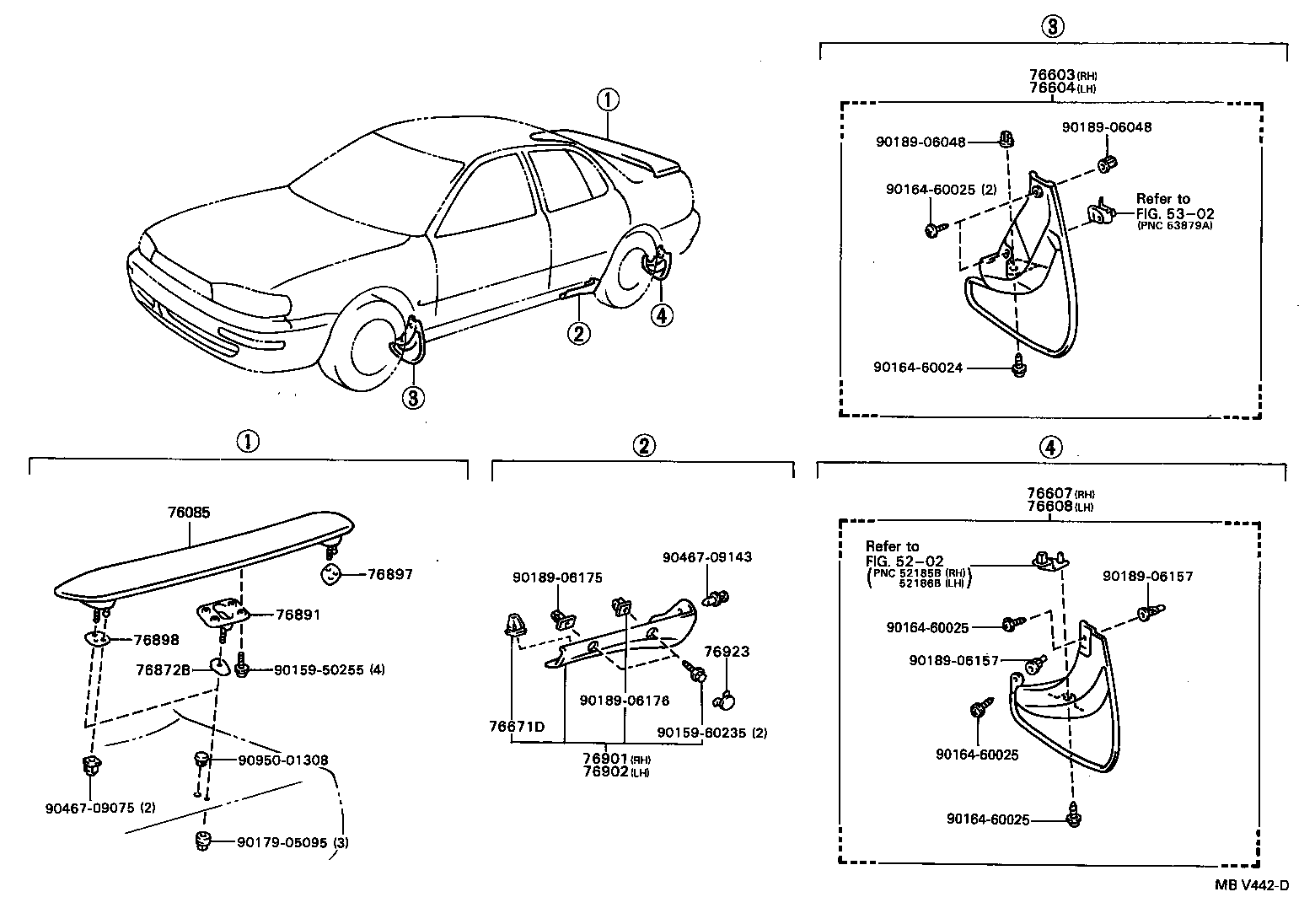

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76871-33901 |
SXV10,VCV10..JPP |
1 | ||
| 76871-33903 |
SXV10,VCV10..JPP |
1 | ||
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76621-39225 |
SXV10,VCV10..JPP |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76622-39225 |
SXV10,VCV10..JPP |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76625-39305 |
SXV10,VCV10..JPP |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76626-39305 |
SXV10,VCV10..JPP |
1 | ||
| 76671D - CLIP, SIDE MUDGUARD | ||||
| 76671-14020 |
SXV10,VCV10..JPP |
2 | ||
| 76872B - PROTECTOR, REAR SPOILER, CENTER | ||||
| 76872-33010 |
SXV10,VCV10..JPP |
1 | ||
| 76891 - SPOILER, REAR NO.1 | ||||
| 76891-33901 |
SXV10,VCV10..JPP 3J9 |
1 | ||
| 76897 - PROTECTOR, REAR SPOILER, SIDE RH | ||||
| 76897-33020 |
SXV10,VCV10..JPP |
1 | ||
| 76898 - PROTECTOR, REAR SPOILER, SIDE LH | ||||
| 76898-33020 |
SXV10,VCV10..JPP |
1 | ||
| 76901 - MUDGUARD SUB-ASSY, SIDE, RH | ||||
| 76911-33010 |
SXV10,VCV10..JPP |
1 | ||
| 76902 - MUDGUARD SUB-ASSY, SIDE, LH | ||||
| 76912-33010 |
SXV10,VCV10..JPP |
1 | ||
| 76923 - RETAINER, SIDE MUDGUARD | ||||
| 76923-33010 |
SXV10,VCV10..JPP |
4 | ||
| Common parts | ||||
| 90159-50255 | ||||
| 90159-60235 | ||||
| 90164-60024 | ||||
| 90164-60025 | ||||
| 90179-05095 | ||||
| 90189-06048 | ||||
| 90189-06157 | ||||
| 90189-06175 | ||||
| 90189-06176 | ||||
| 90467-09075 | ||||
| 90467-09143 | ||||
| 90950-01308 | ||||
| Linked diagrams | ||||
| 5202 | ||||
| 5302 | ||||
