SXV10L-AEMDKW (1991)

Toyota Camry (Sed)

Production Jun 1991 - Aug 1996
Engine 5SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

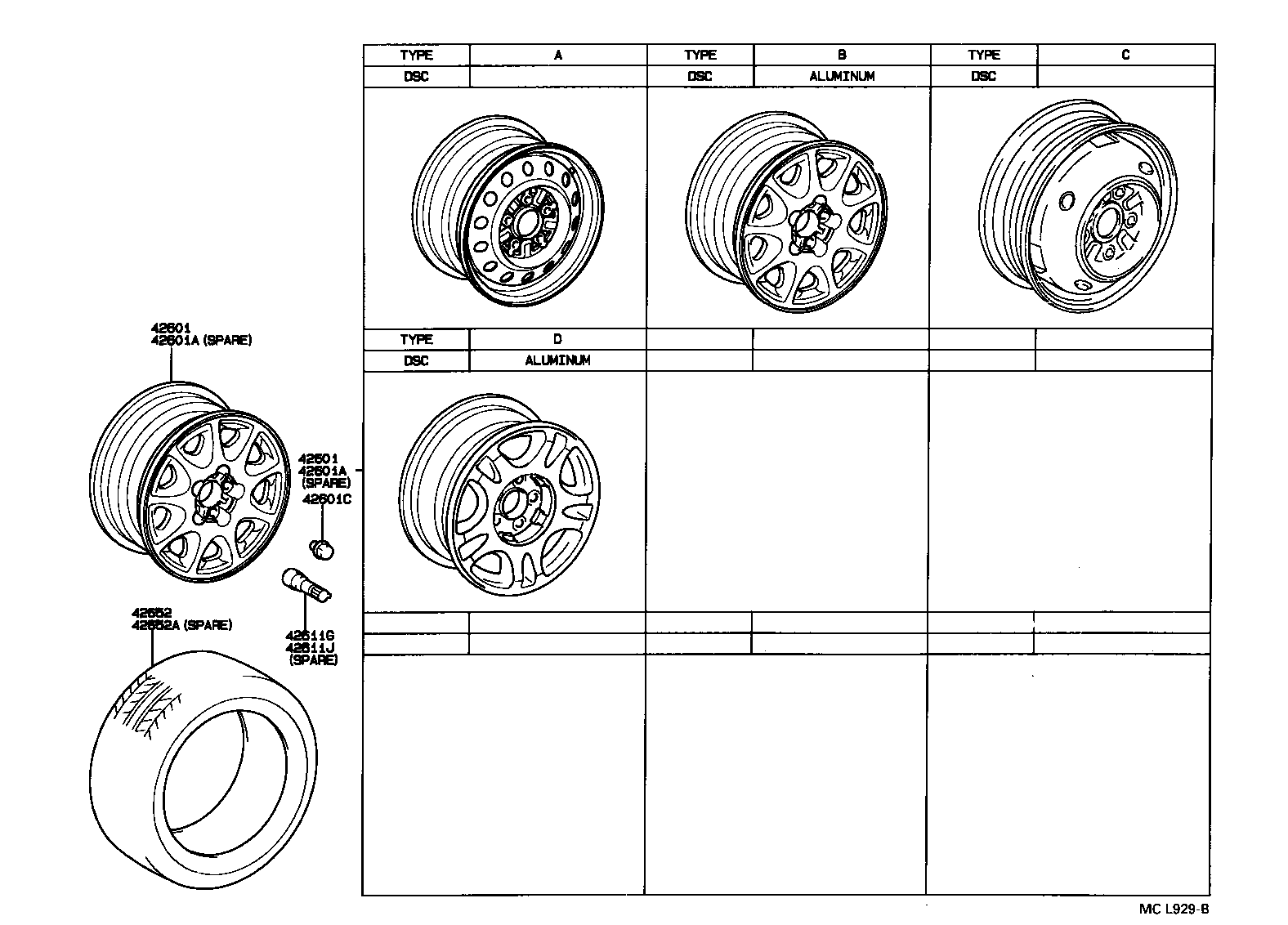

ILLUST NO. 1 OF 2(9106- )JPP

Click highlighted areas on diagram

diagram 42601 42601 42601A 42601A 42601C 42611G 42611J 42652 42652A
Part # Description Qty Price
42601 - WHEEL, DISC
42611-3226001

SXV10..JPP

14X5.5JJ,TYPE A,BLACK

 4
42611-3306001

SXV10..JPP

14X5.5JJ,#,TYPE A,BLACK

 4
42611-3301001

SXV10,VCV10..JPP

15X6JJ,OFFSET 45,#,TYPE A,BLACK

 4
42601 - WHEEL, DISC
42611-3226001

SXV10..JPP

14X5.5JJ,TYPE A,BLACK

 4
42611-3306001

SXV10..JPP

14X5.5JJ,#,TYPE A,BLACK

 4
42611-3301001

SXV10,VCV10..JPP

15X6JJ,OFFSET 45,#,TYPE A,BLACK

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-3306001

SXV10..JPP

14X5.5JJ,#,TYPE A,BLACK

 1
42611-33060

SXV10..JPP

14X5.5JJ,#,TYPE A

 1
42611-3226001

SXV10..JPP

14X5.5JJ,TYPE A,BLACK

 1
42611-3301001

SXV10,VCV10..JPP

15X6JJ,OFFSET 45,#,TYPE C,BLACK

 1
42601A - WHEEL, DISC (FOR SPARE)
42611-3306001

SXV10..JPP

14X5.5JJ,#,TYPE A,BLACK

 1
42611-33060

SXV10..JPP

14X5.5JJ,#,TYPE A

 1
42611-3226001

SXV10..JPP

14X5.5JJ,TYPE A,BLACK

 1
42611-3301001

SXV10,VCV10..JPP

15X6JJ,OFFSET 45,#,TYPE C,BLACK

 1
42601C - NUT, HUB (FOR AXLE)
90942-01007

SXV10,VCV10..JPP

 20
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009

SXV10,VCV10..JPP

 4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009

SXV10,VCV10..JPP

 1
42652 - TIRE
42652-33040

SXV10,VCV10..JPP

205/65R15 94V

 4
42652-33010

SXV10..JPP

195/70R14 91V

 4
42652-06100

SXV10,VCV10..JPP

205/65R15 91V

 4
42652A - TIRE (FOR SPARE)
42652-06100

SXV10,VCV10..JPP

205/65R15 91V

 1
42652-33040

SXV10,VCV10..JPP

205/65R15 94V

 1
42652-33010

SXV10..JPP

195/70R14 91V

 1

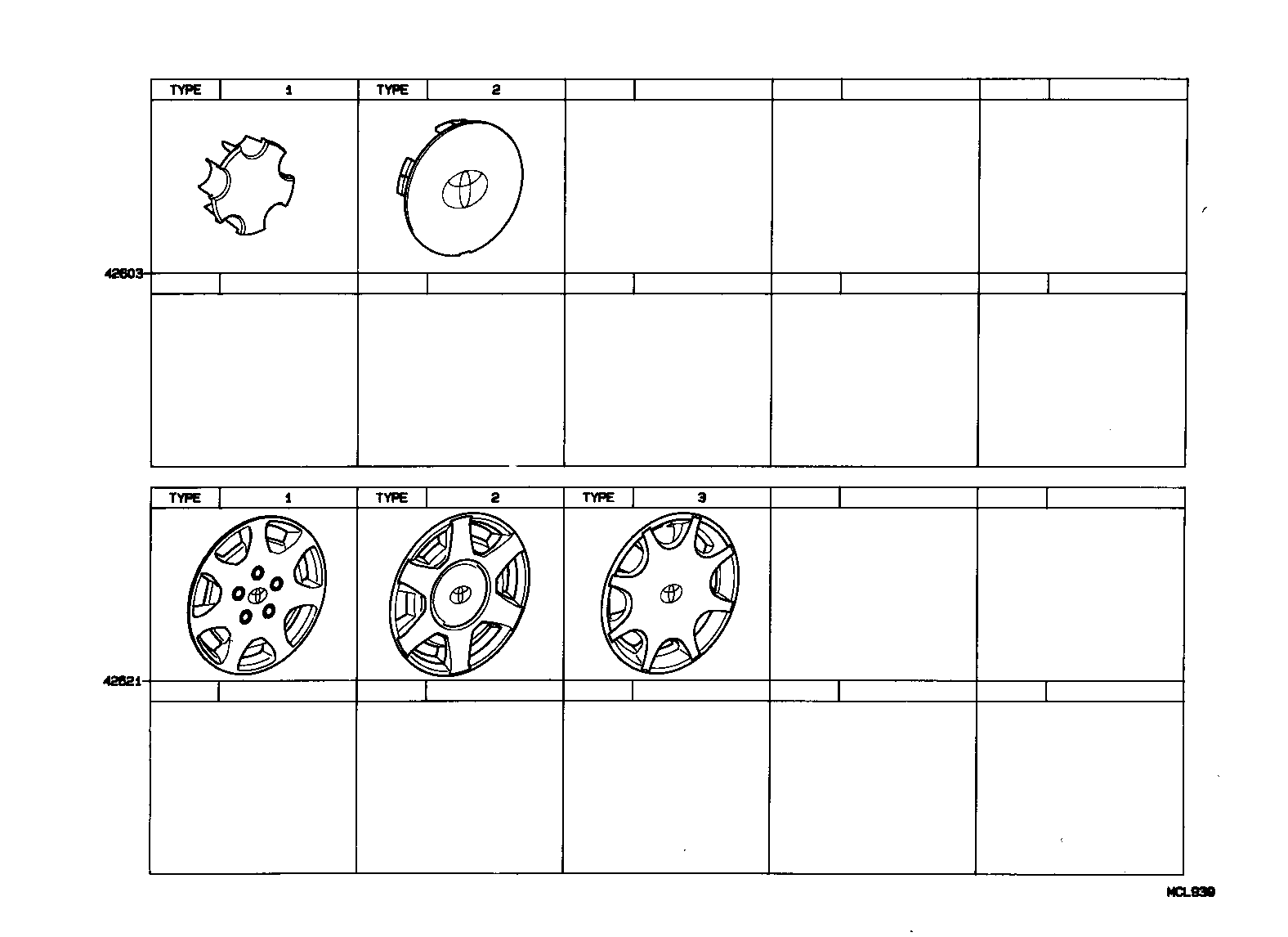

ILLUST NO. 2 OF 2(9106- )JPP

Click highlighted areas on diagram

diagram 42603 42621
Part # Description Qty Price
42621 - CAP, WHEEL
42621-33010

SXV10..JPP..XL

TYPE 3

 4
42621-06010

SXV10..JPP..XL

TYPE 3

 4
42621-32110

SXV10,VCV10..JPP

TYPE 2

 4
42621-33011

SXV10..JPP..XL

TYPE 3

 4

(9106- )JPP

Click highlighted areas on diagram

diagram 9094203017 9094203020 9094203022 9094203025 9094203027 9094203029 9094203031 9094203041 9094203098 9094203099 9094203100 9094203101 9094203102 9094203108 9094203109 9094203146 9094203147 9094203148 9094203149 9094203150 9094203151 9094203152 9094203153 9094203154 9094203155 9094203156 9094203157 9094203158 9094203159 9094203160 9094203161 9094203167 9094203194 9094203195 9094203203 9094203204 9094203205 9094203206 9094203207 9094203208 9094203209 9094203210 9094203211 9094203212 9094203213 9094203214
Part # Description Qty Price
Common parts
90942-03017
90942-03020
90942-03022
90942-03025
90942-03027
90942-03029
90942-03031
90942-03041
90942-03098
90942-03099
90942-03100
90942-03101
90942-03102
90942-03108
90942-03109
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03155
90942-03156
90942-03157
90942-03158
90942-03159
90942-03160
90942-03161
90942-03167
90942-03194
90942-03195
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
