VZV21LG-UWPNKK (1988)

Toyota Camry (Jpp)

Production Aug 1988 - Jun 1991
Engine 2VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )WG

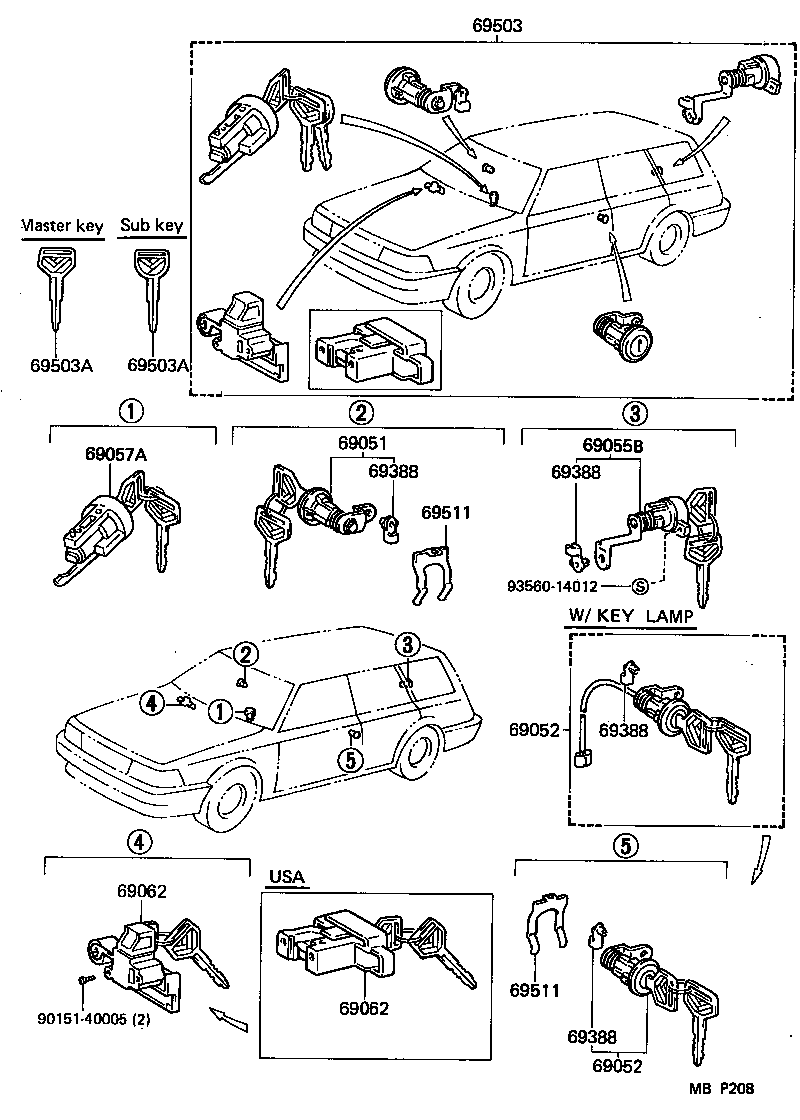

Click highlighted areas on diagram

diagram 69051 69052 69052 69055B 69057A 69062 69062 69388 69388 69388 69388 69503 69503A 69503A 69511 69511 9015140005 9356014012
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-32070

SV2#,VZV21

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-32080

SV2#,VZV21..LE

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-32080

SV2#,VZV21..LE

 1
69055B - CYLINDER & KEY SET, BACK DOOR LOCK
69055-32180

SV21,VZV21..WG

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-32080

SV2#,VZV21

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-32060

SV2#,VZV21..CND

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-32060

SV2#,VZV21..CND

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-32080

SV2#,VZV21

FRONT DOOR,LH

 1
69759-20080

SV21,VZV21..WG

LUGGAGE DOOR

 1
69759-32070

SV2#,VZV21

FRONT DOOR,RH

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-32080

SV2#,VZV21

FRONT DOOR,LH

 1
69759-20080

SV21,VZV21..WG

LUGGAGE DOOR

 1
69759-32070

SV2#,VZV21

FRONT DOOR,RH

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-32080

SV2#,VZV21

FRONT DOOR,LH

 1
69759-20080

SV21,VZV21..WG

LUGGAGE DOOR

 1
69759-32070

SV2#,VZV21

FRONT DOOR,RH

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-32080

SV2#,VZV21

FRONT DOOR,LH

 1
69759-20080

SV21,VZV21..WG

LUGGAGE DOOR

 1
69759-32070

SV2#,VZV21

FRONT DOOR,RH

 1
69503 - CYLINDER SET, LOCK
69005-32330

SV21,VZV21..WG..LE..CND

 1
69503A - KEY, BLANK
90999-00099

SV2#,VZV21

MASTER KEY

 1
90999-00100

SV2#,VZV21

SUB KEY

 1
90999-00118

SV2#,VZV21

MASTER KEY,W(*68)

 1
69503A - KEY, BLANK
90999-00099

SV2#,VZV21

MASTER KEY

 1
90999-00100

SV2#,VZV21

SUB KEY

 1
90999-00118

SV2#,VZV21

MASTER KEY,W(*68)

 1
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32020

SV2#,VZV21

 2
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32020

SV2#,VZV21

 2
Common parts
90151-40005
93560-14012
