VZV21LG-UWPNKK (1988)

Toyota Camry (Jpp)

Production Aug 1988 - Jun 1991
Engine 2VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

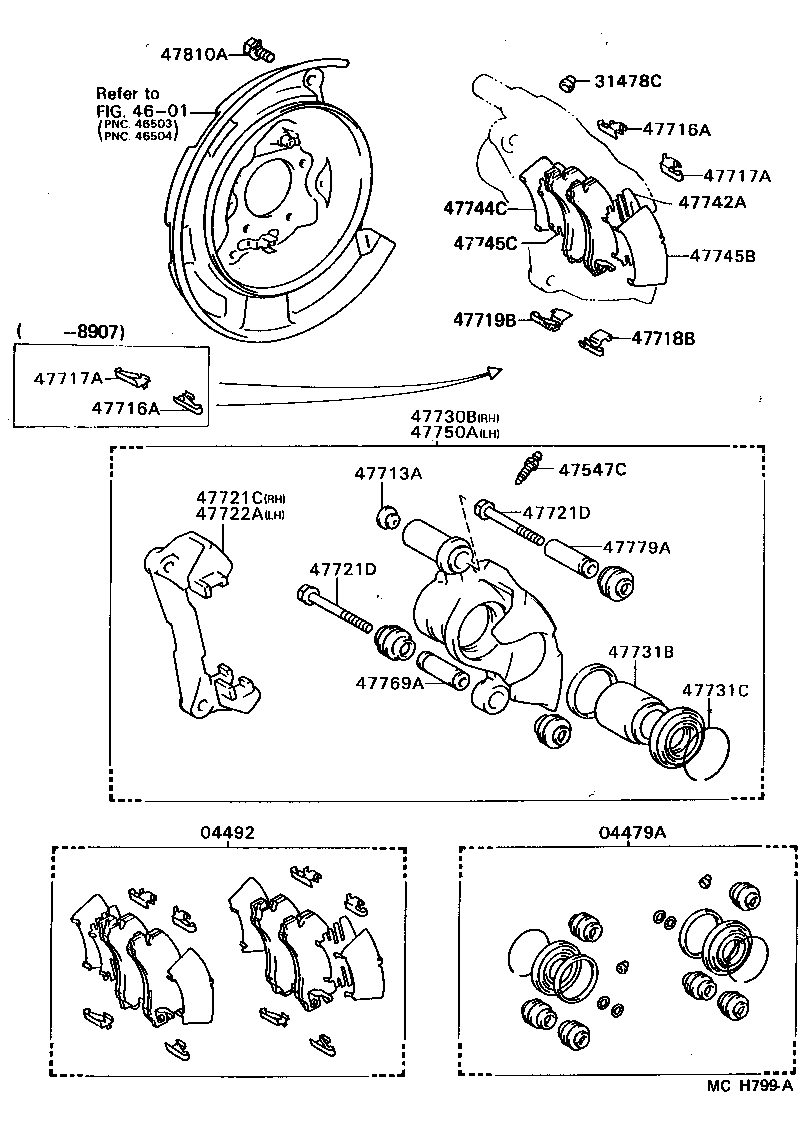

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

diagram 04479A 04492 31478C 4601 47547C 47713A 47716A 47716A 47717A 47717A 47718B 47719B 47721C 47721D 47721D 47722A 47730B 47731B 47731C 47742A 47744C 47745B 47745C 47750A 47769A 47779A 47810A
Part # Description Qty Price
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-20120

SV25,VZV21

 1
04492 - PAD KIT, DISC BRAKE, REAR
04492-20050

SV25,VZV21

 1
04492-32080

SV25,VZV21

 1
04492-32040

SV25,VZV21

 1
04492-32070

SV25,VZV21

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-30010

SV25,VZV21

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-20010

SV25,VZV21

 2
47713A - PLUG, HOLE(FOR REAR DISC BRAKE CYLINDER)
90950-01538

SV25,VZV21

 2
47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47716-32020

SV25,VZV21

 4
47716-32020

SV25,VZV21

 2
47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47716-32020

SV25,VZV21

 4
47716-32020

SV25,VZV21

 2
47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)
47717-32020

SV25,VZV21

 2
47717-32020

SV25,VZV21

 4
47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)
47717-32020

SV25,VZV21

 2
47717-32020

SV25,VZV21

 4
47718B - PLATE, PAD SUPPORT, NO.3(FOR REAR DISK BRAKE)
47718-32010

SV25,VZV21

 2
47719B - PLATE, PAD SUPPORT, NO.4(FOR REAR DISK BRAKE)
47719-32010

SV25,VZV21

 2
47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47721-32040

SV25,VZV21

 1
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90105-08133

SV25,VZV21

*8-1.25PX58-25

 2
90119-08547

SV25,VZV21

*8-1.25PX68-30

 2
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90105-08133

SV25,VZV21

*8-1.25PX58-25

 2
90119-08547

SV25,VZV21

*8-1.25PX68-30

 2
47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47721-32040

SV25,VZV21

 1
47730B - CYLINDER ASSY, REAR DISC BRAKE, RH
47730-20260

SV25,VZV21

 1
47731B - PISTON, REAR DISC BRAKE
47731-20130

SV25,VZV21

 2
47731C - RING, SET(FOR REAR DISC BRAKE PISTON)
90522-43003

SV25,VZV21

 2
47742A - SHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE)
47742-32031

SV25,VZV21

 2
47744C - SHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)
47744-32021

SV25,VZV21

 2
47745-32030

SV25,VZV21

 2
47745B - SHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)
47745-32030

SV25,VZV21

 2
47745C - SHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE)
47742-32031

SV25,VZV21

 2
47750A - CYLINDER ASSY, DISC BRAKE, REAR LH
47750-20260

SV25,VZV21

 1
47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47769-32020

SV25,VZV21

 2
47779A - BUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47779-32020

SV25,VZV21

 2
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90119-10379

VZV21

 4
Linked diagrams
4601

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 04466 04946 04948
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-33010

SV25,VZV21

MARK AK PA511

 1
04466-33010

SV25,VZV21

MARK AK PA511

 1
04466-32010

SV25,VZV21

MARK AK PA511

 1
04466-32010

VZV21..WG

MARK AK PA511

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-32060

SV25,VZV21

 1
04946-32070

SV25,VZV21

 1
04946-32040

SV25,VZV21

 1
04946-32070

VZV21..WG

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-32010

SV25,VZV21

 1
04948-32010

VZV21..WG

 1
04948-32020

SV25,VZV21

 1
