VZV21LG-UWPNKK (1988)

Toyota Camry (Jpp)

Production Aug 1988 - Jun 1991
Engine 2VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )SV25,VZV21..4FC

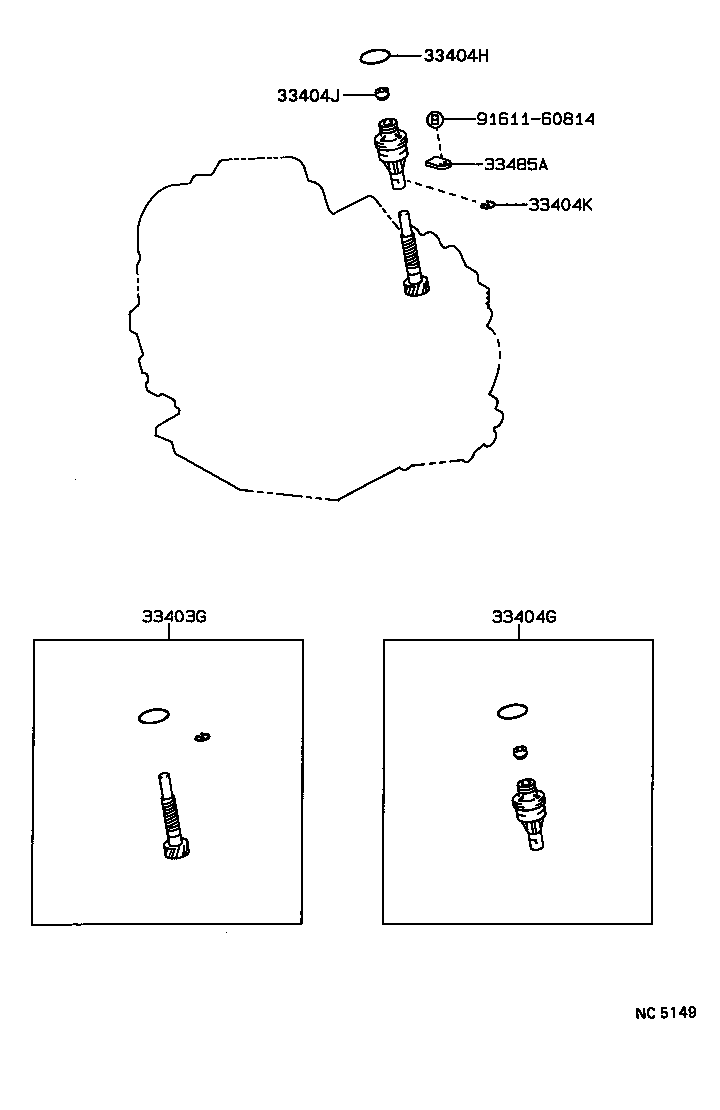

Click highlighted areas on diagram

diagram 33403G 33404G 33404H 33404J 33404K 33485A 9161160814
Part # Description Qty Price
33403G - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)
33403-39225

SV25,VZV21..4FC

N=24,MARK 24:29

 1
33404G - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)
33404-12030

SV25,VZV21..4FC

 1
33404H - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)
96711-24030

SV25,VZV21..4FC

 1
33404J - SEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90310-09001

SV2#,VZV21..4FC

 1
33404K - CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90468-12005

SV2#,VZV21..4FC

 1
33485A - PLATE, SPEEDOMETER SLEEVE LOCK (ATM)
33485-30020

SV25,VZV21..4FC

 1
Common parts
91611-60814
