VZV21LG-UWPNKA (1988)
Toyota Camry (Jpp)
Production
Aug 1988
-
Jun 1991
Engine
2VZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )WG

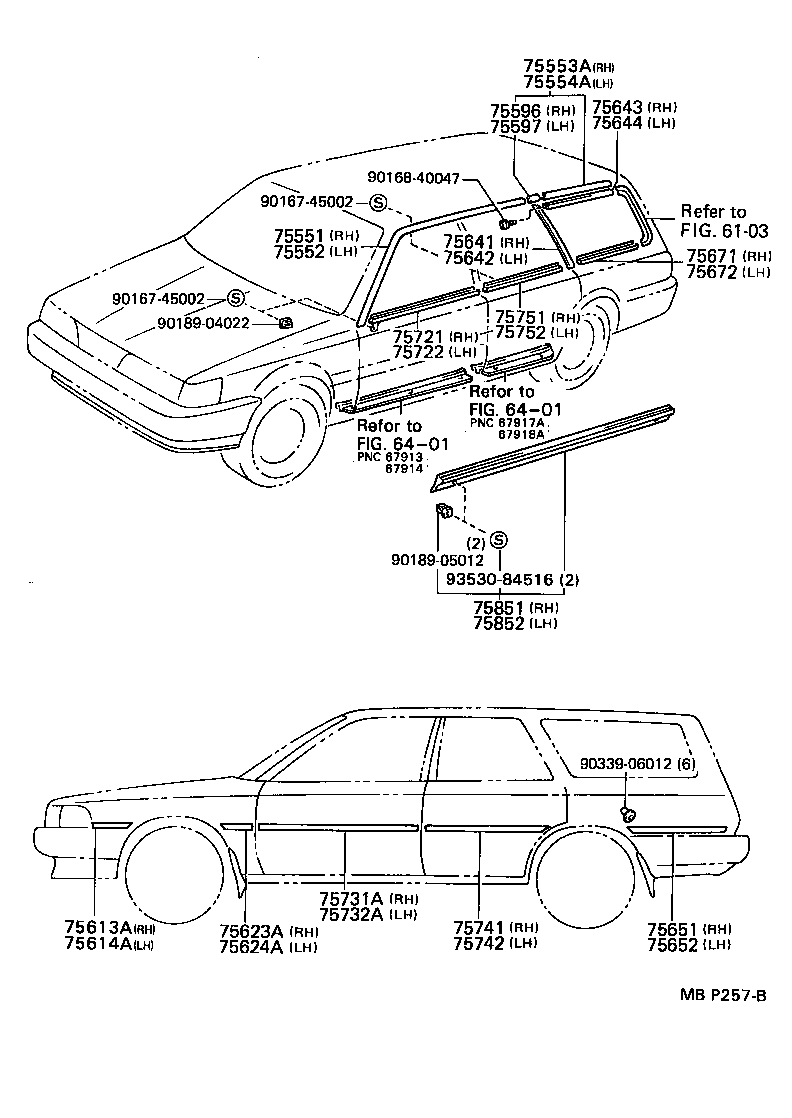

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75551 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-32040 |
SV21,VZV21..WG |
1 | ||
| 75552 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-32040 |
SV21,VZV21..WG |
1 | ||
| 75553A - MOULDING, ROOF DRIP SIDE FINISH, REAR RH | ||||
| 75553-32030 |
SV21,VZV21..WG |
1 | ||
| 75554A - MOULDING, ROOF DRIP SIDE FINISH, REAR LH | ||||
| 75554-32030 |
SV21,VZV21..WG |
1 | ||
| 75596 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH | ||||
| 75596-32010 |
SV21,VZV21..WG |
1 | ||
| 75597 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH | ||||
| 75597-32010 |
SV21,VZV21..WG |
1 | ||
| 75613A - MOULDING, FRONT FENDER, FRONT RH | ||||
| 75613-32020 |
SV2#,VZV21..DX,LE |
1 | ||
| 75613-32021 |
SV2#,VZV21..DX,LE |
1 | ||
| 75614A - MOULDING, FRONT FENDER, FRONT LH | ||||
| 75614-32020 |
SV2#,VZV21..DX,LE |
1 | ||
| 75614-32021 |
SV2#,VZV21..DX,LE |
1 | ||
| 75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH | ||||
| 75623-32060 |
SV2#,VZV21..DX,LE |
1 | ||
| 75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH | ||||
| 75624-32060 |
SV2#,VZV21..DX,LE |
1 | ||
| 75641 - MOULDING, QUARTER WINDOW, OUTSIDE FRONT RH | ||||
| 75641-32010 |
SV21,VZV21..WG |
1 | ||
| 75642 - MOULDING, QUARTER WINDOW, OUTSIDE FRONT LH | ||||
| 75642-32010 |
SV21,VZV21..WG |
1 | ||
| 75643 - MOULDING, QUARTER WINDOW, OUTSIDE UPPER RH | ||||
| 75643-32010 |
SV21,VZV21..WG |
1 | ||
| 75644 - MOULDING, QUARTER WINDOW, OUTSIDE UPPER LH | ||||
| 75644-32010 |
SV21,VZV21..WG |
1 | ||
| 75651 - MOULDING, QUARTER, OUTSIDE RH | ||||
| 75651-32031 |
SV21,VZV21..WG |
1 | ||
| 75651-32030 |
SV21,VZV21..WG |
1 | ||
| 75652 - MOULDING, QUARTER, OUTSIDE LH | ||||
| 75652-32030 |
SV21,VZV21..WG |
1 | ||
| 75652-32031 |
SV21,VZV21..WG |
1 | ||
| 75671 - MOULDING, QUARTER BELT, RH | ||||
| 75671-32010 |
SV21,VZV21..WG |
1 | ||
| 75672 - MOULDING, QUARTER BELT, LH | ||||
| 75672-32010 |
SV21,VZV21..WG |
1 | ||
| 75721 - MOULDING, FRONT DOOR BELT, RH | ||||
| 75710-32030 |
SV2#,VZV21 |
1 | ||
| 75722 - MOULDING, FRONT DOOR BELT, LH | ||||
| 75720-32030 |
SV2#,VZV21 |
1 | ||
| 75731A - MOULDING, FRONT DOOR, OUTSIDE RH | ||||
| 75731-32140 |
SV2#,VZV21..DX,LE |
1 | ||
| 75732A - MOULDING, FRONT DOOR, OUTSIDE LH | ||||
| 75732-32140 |
SV2#,VZV21..DX,LE |
1 | ||
| 75741 - MOULDING, REAR DOOR, OUTSIDE RH | ||||
| 75741-32170 |
SV2#,VZV21..DX,LE |
1 | ||
| 75742 - MOULDING, REAR DOOR, OUTSIDE LH | ||||
| 75742-32170 |
SV2#,VZV21..DX,LE |
1 | ||
| 75751 - MOULDING, REAR DOOR BELT, RH | ||||
| 75730-32020 |
SV2#,VZV21 |
1 | ||
| 75752 - MOULDING, REAR DOOR BELT, LH | ||||
| 75740-32020 |
SV2#,VZV21 |
1 | ||
| 75851 - MOULDING, ROCKER PANEL, RH | ||||
| 75850-39065 |
SV2#,VZV21..LE |
1 | ||
| 75850-39066 |
SV2#,VZV21..LE |
1 | ||
| 75852 - MOULDING, ROCKER PANEL, LH | ||||
| 75850-39065 |
SV2#,VZV21..LE |
1 | ||
| 75850-39066 |
SV2#,VZV21..LE |
1 | ||
| Common parts | ||||
| 90167-45002 | ||||
| 90168-40047 | ||||
| 90189-04022 | ||||
| 90189-05012 | ||||
| 90339-06012 | ||||
| 93530-84516 | ||||
| Linked diagrams | ||||
| 6103 | ||||
| 6401 | ||||
