VZV21LG-UWPNKA (1988)
Toyota Camry (Jpp)
(8808- )2VZFE

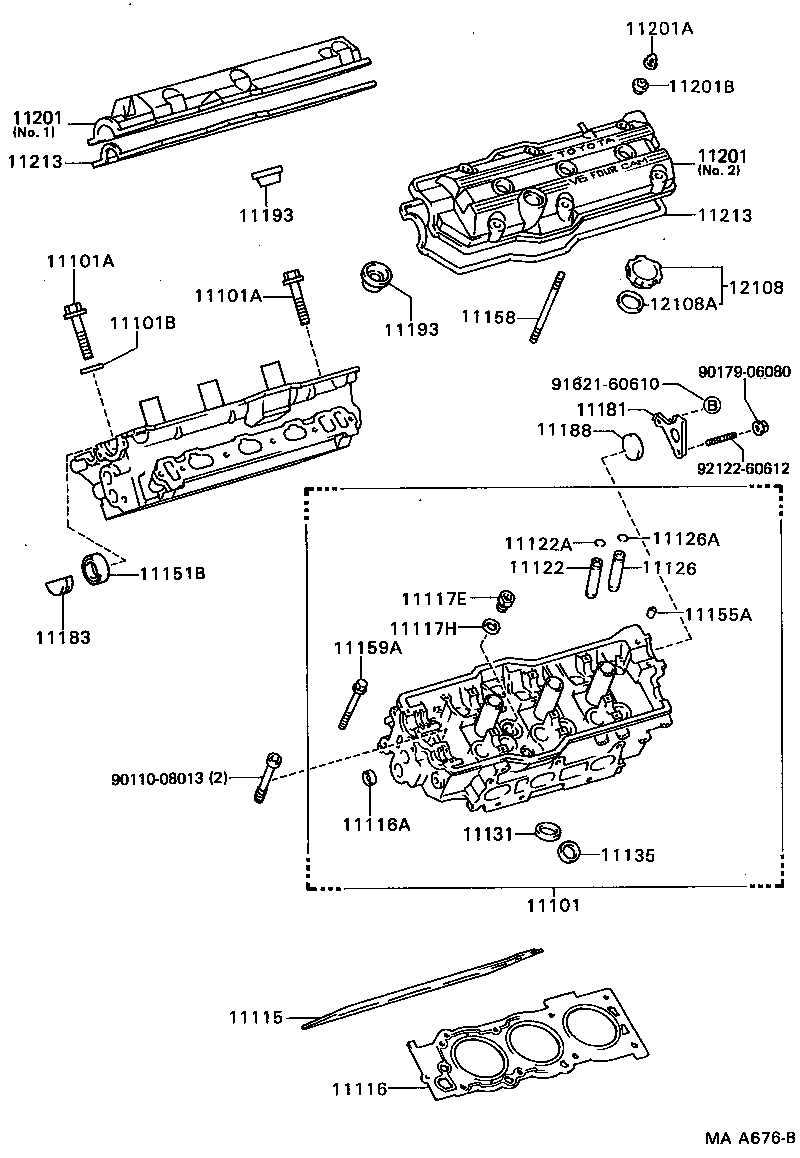

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-69055 |
2VZFE..VZV21 |
2 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02077 |
2VZFE..VZV21 |
16 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02077 |
2VZFE..VZV21 |
16 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-11028 |
2VZFE..VZV21 |
16 | ||
| 90201-11018 |
2VZFE..VZV21 |
16 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-62030 |
2VZFE..VZV21 |
1 | ||
| 11116 - GASKET, CYLINDER HEAD, NO.2 | ||||
| 11116-62030 |
2VZFE..VZV21 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-43000 |
2VZFE..VZV21 |
8 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-24009 |
2VZFE..VZV21 |
4 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-24246 |
2VZFE..VZV21 |
4 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-16020 |
2VZFE..VZV21 O/S 0.05 |
12 | ||
| 11122-16020 |
2VZFE..VZV21 STD |
12 | ||
| 11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH) | ||||
| 90520-10004 |
2VZFE..VZV21 |
12 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11123-16020 |
2VZFE..VZV21 O/S 0.05 |
12 | ||
| 11122-16020 |
2VZFE..VZV21 STD |
12 | ||
| 11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH) | ||||
| 90520-10004 |
2VZFE..VZV21 |
12 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-62020 |
2VZFE..VZV21 STD |
12 | ||
| 11132-62020 |
2VZFE..VZV21 O/S 0.03 |
12 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11136-62020 |
2VZFE..VZV21 O/S 0.03 |
12 | ||
| 11135-62020 |
2VZFE..VZV21 STD |
12 | ||
| 11151B - SEAL, OIL(FOR CAMSHAFT SETTING) | ||||
| 90311-38034 |
2VZFE..VZV21 |
2 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-10004 |
2VZFE..VZV21 |
16 | ||
| 11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER) | ||||
| 90116-06071 |
2VZFE..VZV21 |
12 | ||
| 90116-06128 |
2VZFE..VZV21 |
12 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07005 |
2VZFE..VZV21 |
40 | ||
| 11181 - PLATE, CYLINDER HEAD, REAR | ||||
| 11181-62010 |
2VZFE..VZV21 |
1 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-62010 |
2VZFE..VZV21 |
4 | ||
| 11188 - PLUG, CAMSHAFT HOUSING | ||||
| 11188-62010 |
2VZFE..VZV21 |
1 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-62020 |
2VZFE..VZV21 |
6 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-62020 |
2VZFE..VZV21 |
6 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-62020 |
2VZFE..VZV21 NO.1 |
1 | ||
| 11202-62020 |
2VZFE..VZV21 NO.2 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-62020 |
2VZFE..VZV21 NO.1 |
1 | ||
| 11202-62020 |
2VZFE..VZV21 NO.2 |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90176-06008 |
2VZFE..VZV21 |
12 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-07005 |
2VZFE..VZV21..WG |
12 | ||
| 90210-08025 |
2VZFE..VZV21 |
12 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-62010 |
2VZFE..VZV21 |
2 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-62010 |
2VZFE..VZV21 |
2 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-65010 |
2VZFE..VZV21 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37004 |
2VZFE..VZV21 |
1 | ||
| Common parts | ||||
| 90110-08013 | ||||
| 90179-06080 | ||||
| 91621-60610 | ||||
| 92122-60612 | ||||
