VZV21LG-UWPDKA (1988)
Toyota Camry (Jpp)
Production
Aug 1988
-
Aug 1990
Engine
2VZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

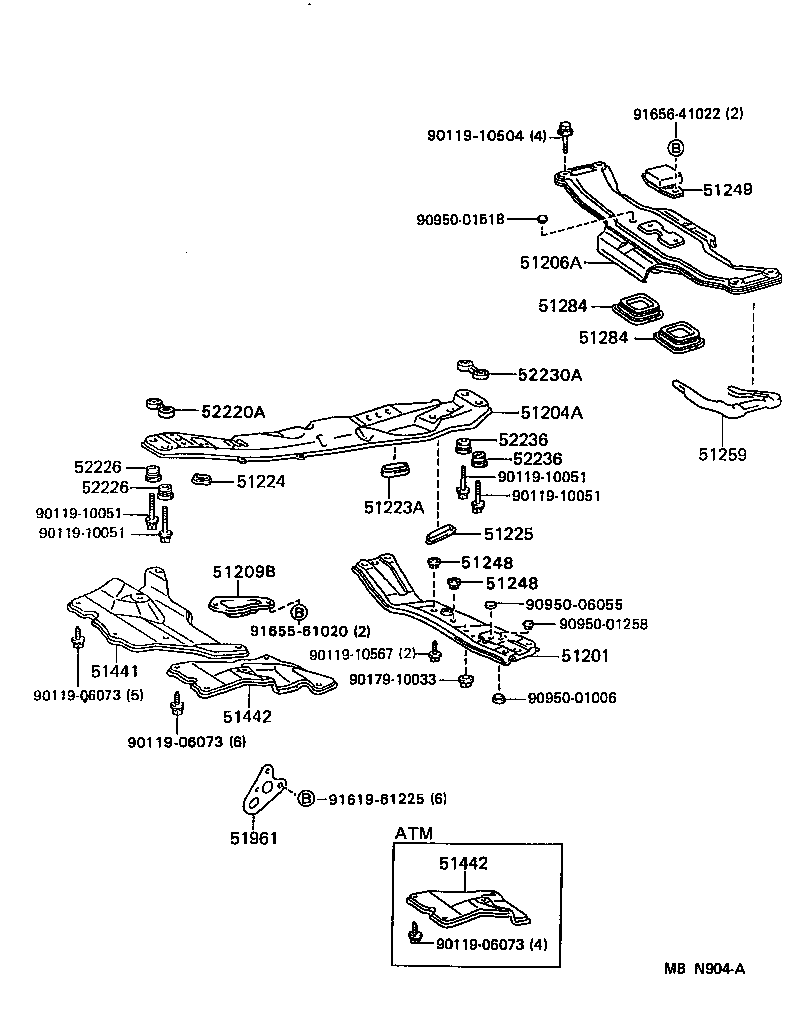

ILLUST NO. 1 OF 2(8808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-32020 |
SV21,VZV21 |
1 | ||
| 51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER | ||||
| 51204-32022 |
SV21,VZV21 |
1 | ||
| 51204-32021 |
SV21,VZV21 |
1 | ||
| 51204-32022 |
SV21,VZV21 |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-32010 |
SV21,VZV21 |
1 | ||
| 51223A - COVER, ENGINE MOUNTING HOLE | ||||
| 51223-32020 |
SV2#,VZV21 |
1 | ||
| 51224 - COVER, ENGINE MOUNTING HOLE, NO.2 | ||||
| 51224-32010 |
SV21,VZV21 |
1 | ||
| 51225 - COVER, ENGINE MOUNTING HOLE, NO.3 | ||||
| 51225-32010 |
SV21,VZV21 |
1 | ||
| 51248 - SPACER, FLAME CROSSMEMBER | ||||
| 51248-32010 |
SV21,VZV21 |
2 | ||
| 51248 - SPACER, FLAME CROSSMEMBER | ||||
| 51248-32010 |
SV21,VZV21 |
2 | ||
| 51249 - DAMPER, REAR SUSPENSION MEMBER | ||||
| 51249-32010 |
SV21,VZV21 |
1 | ||
| 51259 - PROTECTOR, REAR SUSPENSION MEMBER EDGE | ||||
| 51259-32010 |
SV21,VZV21 |
1 | ||
| 51284 - COVER, REAR SUSPENSION MEMBER HOLE | ||||
| 51284-32010 |
SV21,VZV21 |
2 | ||
| 51284 - COVER, REAR SUSPENSION MEMBER HOLE | ||||
| 51284-32010 |
SV21,VZV21 |
2 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-32030 |
SV2#,VZV21 |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-32040 |
SV25..4FC..CND;SV21,VZV21..4FC |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-32040 |
SV25..4FC..CND;SV21,VZV21..4FC |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51963-32010 |
SV2#,VZV21 |
2 | ||
| 52220A - CUSHION ASSY, CENTER MEMBER MOUNTING, FRONT UPPER | ||||
| 52220-32050 |
SV21,VZV21 |
1 | ||
| 52226 - CUSHION, CENTER MEMBER MOUNTING, FRONT LOWER | ||||
| 52226-32030 |
SV21,VZV21 |
2 | ||
| 52226 - CUSHION, CENTER MEMBER MOUNTING, FRONT LOWER | ||||
| 52226-32030 |
SV21,VZV21 |
2 | ||
| 52230A - CUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER | ||||
| 52230-32040 |
SV21,VZV21 |
1 | ||
| 52236 - CUSHION, CENTER MEMBER MOUNTING, REAR LOWER | ||||
| 52236-32030 |
SV21,VZV21 |
2 | ||
| 52236 - CUSHION, CENTER MEMBER MOUNTING, REAR LOWER | ||||
| 52236-32030 |
SV21,VZV21 |
2 | ||
| Common parts | ||||
| 90119-06073 | ||||
| 90119-10051 | ||||
| 90119-10504 | ||||
| 90119-10567 | ||||
| 90179-10033 | ||||
| 90950-01006 | ||||
| 90950-01258 | ||||
| 90950-01518 | ||||
| 90950-06055 | ||||
| 91619-61225 | ||||
| 91655-61020 | ||||
| 91656-41022 | ||||
