VZV21LG-UWPDKA (1988)
Toyota Camry (Jpp)
Production
Aug 1988
-
Aug 1990
Engine
2VZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

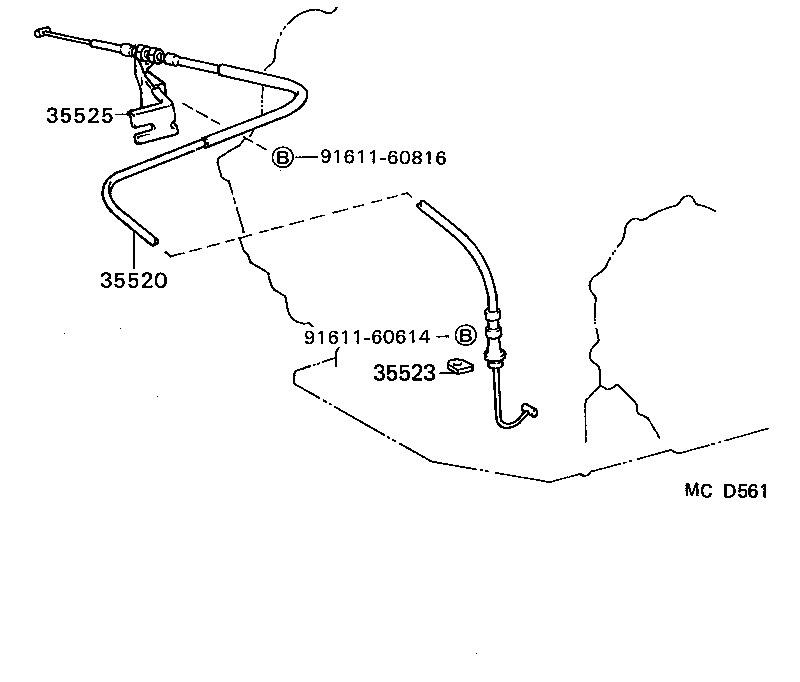

ILLUST NO. 2 OF 2(8808- )4FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-32050 |
VZV21..4FC |
1 | ||
| 35523 - CLAMP, THROTTLE CABLE | ||||
| 35523-32010 |
SV2#,VZV21..4FC |
1 | ||
| 35525 - BRACKET, THROTTLE CABLE | ||||
| 35525-32040 |
VZV21..4FC |
1 | ||
| Common parts | ||||
| 91611-60614 | ||||
| 91611-60816 | ||||

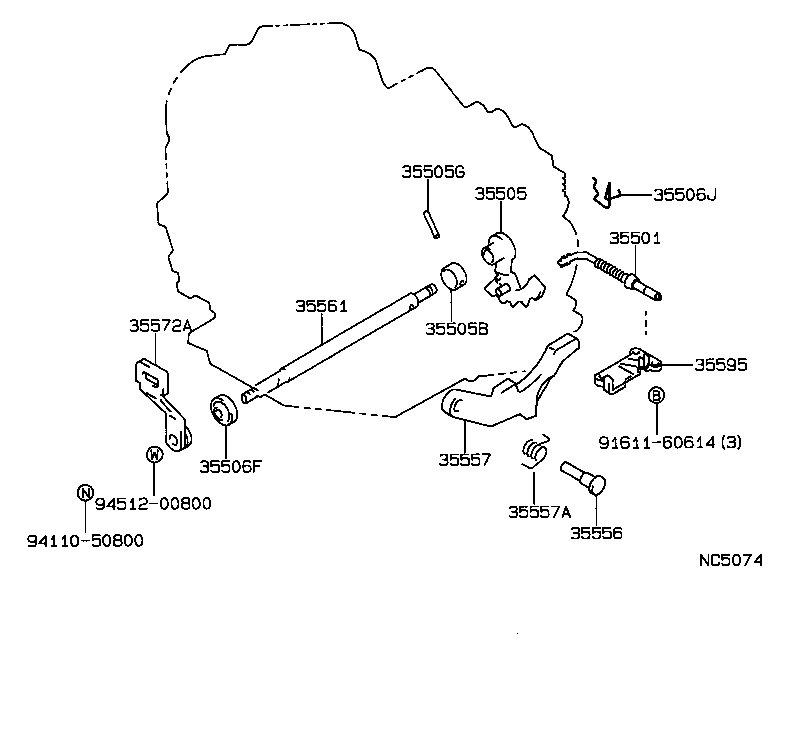

ILLUST NO. 1 OF 2(8808- )SV25,VZV21..4FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35501 - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-32020 |
SV25,VZV21..4FC |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-20010 |
SV2#,VZV21..4FC |
1 | ||
| 35505B - SPACER (FOR MANUAL VALVE LEVER) | ||||
| 90560-20006 |
SV2#,VZV21..4FC |
1 | ||
| 35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER) | ||||
| 90254-04011 |
SV2#,VZV21..4FC |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
SV2#,VZV21..4FC |
1 | ||
| 35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90524-09001 |
SV2#,VZV21..4FC |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-32020 |
SV25,VZV21..4FC |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-32030 |
SV25,VZV21..4FC |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-33001 |
SV25,VZV21..4FC |
1 | ||
| 35561 - SHAFT, MANUAL VALVE LEVER | ||||
| 35561-32010 |
SV25,VZV21..4FC |
1 | ||
| 35572A - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-32011 |
SV25,VZV21..4FC |
1 | ||
| 35595 - BRACKET, PARKING LOCK PAWL | ||||
| 35595-32020 |
SV25,VZV21..4FC |
1 | ||
| Common parts | ||||
| 91611-60614 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
