VZV21LG-UWPDKA (1988)

Toyota Camry (Jpp)

Production Aug 1988 - Aug 1990
Engine 2VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )2VZFE

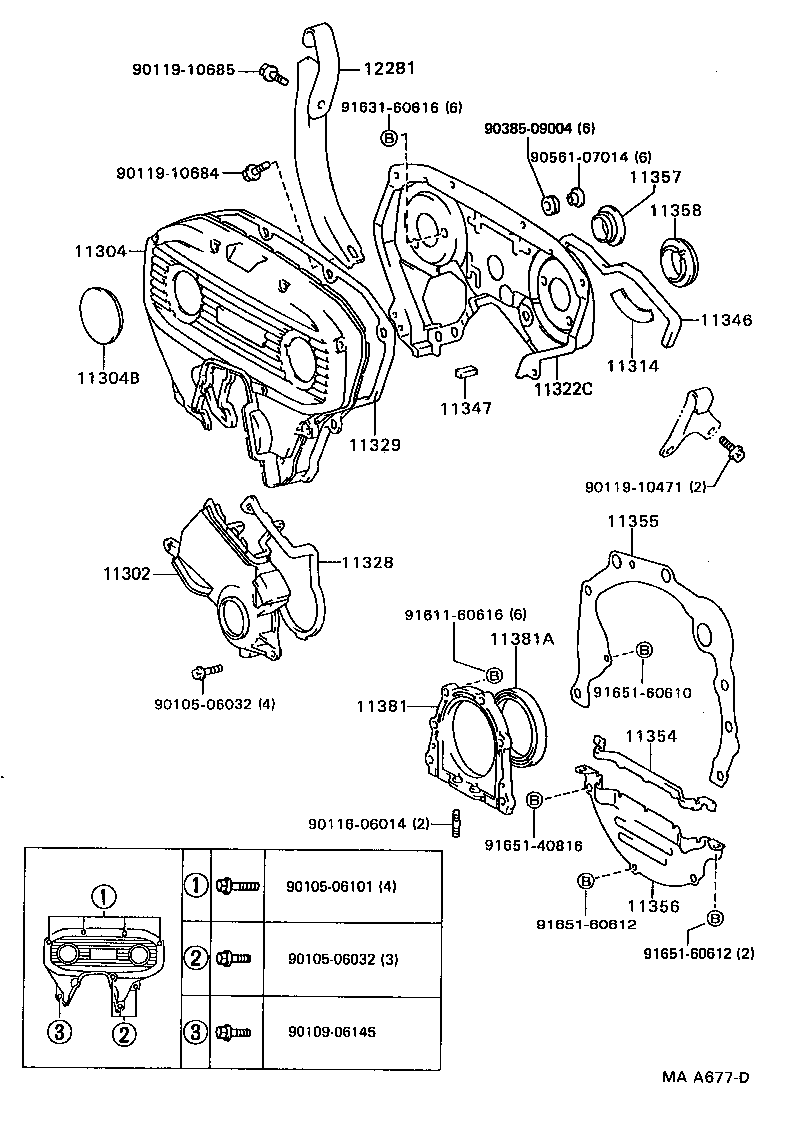

Click highlighted areas on diagram

diagram 11302 11304 11304B 11314 11322C 11328 11329 11346 11347 11354 11355 11356 11357 11358 11381 11381A 12281 9010506032 9010506032 9010506101 9010906145 9011606014 9011910471 9011910684 9011910685 9038509004 9056107014 9161160616 9163160616 9165140816 9165160610 9165160612 9165160612
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-62020

2VZFE..VZV21

 1
11304 - COVER, TIMING CHAIN OR BELT, NO.2
11303-62020

2VZFE..VZV21

 1
11304B - PLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
90950-01554

2VZFE..VZV21

 2
11314 - GASKET, TIMING CHAIN NO.2 COVER
11319-62010

2VZFE..VZV21

 1
11322C - COVER, TIMING BELT, NO.3
11304-62020

2VZFE..VZV21

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-62020

2VZFE..VZV21

 1
11329 - GASKET, TIMING GEAR REAR COVER
11329-62010

2VZFE..VZV21

 1
11346 - GASKET, TIMING BELT COVER, NO.4
11346-62010

2VZFE..VZV21

 1
11347 - GASKET, TIMING BELT COVER, NO.5
11347-62010

2VZFE..VZV21

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-62010

2VZFE..VZV21

 1
11355 - PLATE, REAR END
11355-62010

2VZFE..VZV21

 1
11356 - PLATE, REAR END, NO.2
11356-62010

2VZFE..VZV21

 1
11357 - GASKET, TIMING BELT COVER, NO.6
11357-62010

2VZFE..VZV21

 1
11358 - GASKET,TIMING BELT COVER, NO.7
11358-62010

2VZFE..VZV21

 2
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-62010

2VZFE..VZV21

 1
11381A - SEAL, ENGINE REAR OIL
90311-92001

2VZFE..VZV21

 1
12281 - HANGER, ENGINE, NO.1
12281-62020

2VZFE..VZV21

 1
Common parts
90105-06032
90105-06101
90109-06145
90116-06014
90119-10471
90119-10684
90119-10685
90385-09004
90561-07014
91611-60616
91631-60616
91651-40816
91651-60610
91651-60612
