VZV21L-UEPNKA (1988)
Toyota Camry (Jpp)
Production
Aug 1988
-
Jun 1991
Engine
2VZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

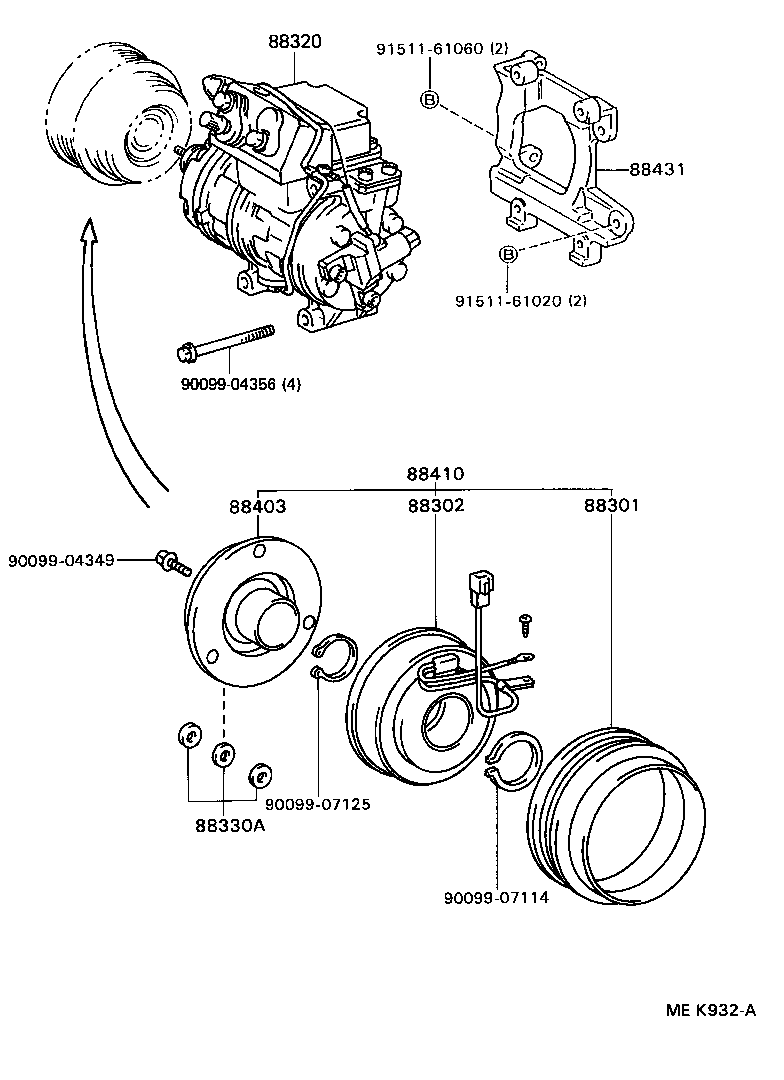

ILLUST NO. 1 OF 2(8808- )VZV21
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-32050 |
VZV21..LE |
1 | ||
| 88412-32030 |
VZV21..LE |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-32031 |
VZV21..LE |
1 | ||
| 88411-32050 |
VZV21..LE |
1 | ||
| 88411-32050 |
VZV21..LE |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-32091 |
VZV21..LE |
1 | ||
| 88320-32093 |
VZV21..LE |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
VZV21..LE |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
VZV21..LE |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-32040 |
VZV21..LE |
1 | ||
| 88410-32050 |
VZV21..LE |
1 | ||
| 88410-32090 |
VZV21..LE |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-32010 |
VZV21..LE |
1 | ||
| 88431-32011 |
VZV21..LE |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-04356 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 91511-61020 | ||||
| 91511-61060 | ||||

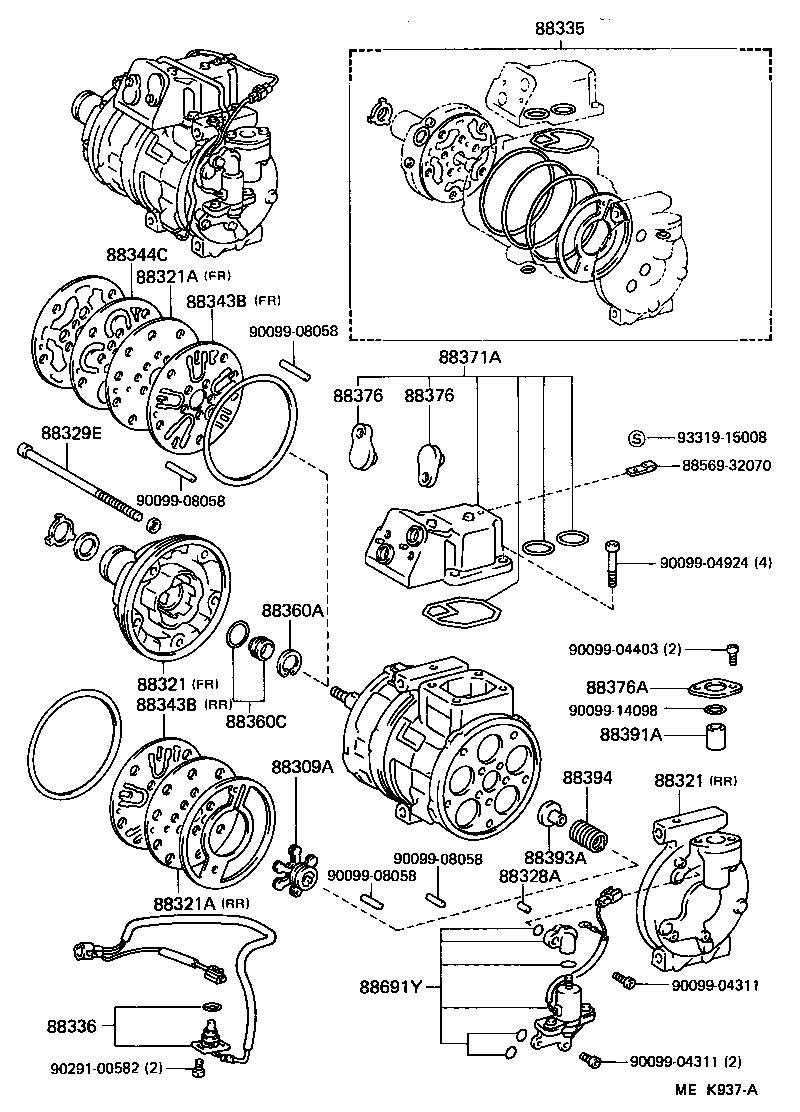

ILLUST NO. 2 OF 2(8808- )VZV21
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88309A - PUMP SUB-ASSY, COMPRESSOR | ||||
| 88309-32010 |
VZV21..LE |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-32030 |
VZV21..LE REAR |
1 | ||
| 88321-14021 |
VZV21..LE FRONT |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-32030 |
VZV21..LE REAR |
1 | ||
| 88321-14021 |
VZV21..LE FRONT |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-14021 |
VZV21..LE FRONT |
1 | ||
| 88342-14021 |
VZV21..LE REAR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-14021 |
VZV21..LE FRONT |
1 | ||
| 88342-14021 |
VZV21..LE REAR |
1 | ||
| 88328A - PIN, COMPRESSOR | ||||
| 88328-32010 |
VZV21..LE |
1 | ||
| 88329E - BOLT, COMPRESSOR, NO.1 | ||||
| 90099-04437 |
VZV21..LE |
5 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-32020 |
VZV21..LE |
1 | ||
| 88336 - SENSOR, COMPRESSOR | ||||
| 88336-32070 |
VZV21 |
1 | ||
| 88336-32050 |
VZV21 |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
VZV21..LE FRONT |
1 | ||
| 88343-32010 |
VZV21..LE REAR |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
VZV21..LE FRONT |
1 | ||
| 88343-32010 |
VZV21..LE REAR |
1 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-14021 |
VZV21..LE |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90002 |
VZV21..LE |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-14030 |
VZV21..LE |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-32090 |
VZV21..LE |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-17020 |
VZV21..LE SUCTION |
1 | ||
| 88376-22020 |
VZV21..LE DISCHARGE |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-17020 |
VZV21..LE SUCTION |
1 | ||
| 88376-22020 |
VZV21..LE DISCHARGE |
1 | ||
| 88376A - CAP, COMPRESSOR | ||||
| 88376-32010 |
VZV21..LE |
1 | ||
| 88391A - VALVE, FLOAT | ||||
| 88391-32010 |
VZV21..LE |
1 | ||
| 88393A - PLATE, STOPPER | ||||
| 88393-32010 |
VZV21..LE |
1 | ||
| 88394 - SPRING, COMPRESSOR | ||||
| 88394-32010 |
VZV21..LE |
1 | ||
| 88691Y - VALVE, MAGNET | ||||
| 88691-32080 |
VZV21..LE |
1 | ||
| Common parts | ||||
| 88569-32070 | ||||
| 90099-04311 | ||||
| 90099-04403 | ||||
| 90099-04924 | ||||
| 90099-08058 | ||||
| 90099-14098 | ||||
| 90291-00582 | ||||
| 93319-15008 | ||||
