VZV21L-UEPNKA (1988)

Toyota Camry (Jpp)

Production Aug 1988 - Jun 1991
Engine 2VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )VZV21..4FC

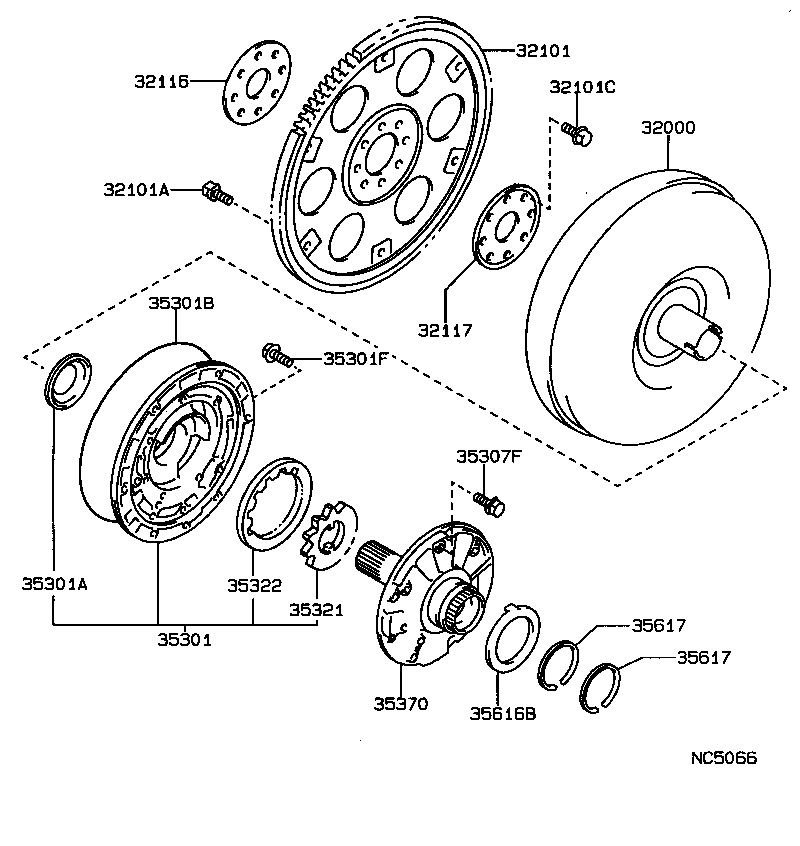

Click highlighted areas on diagram

diagram 32000 32101 32101A 32101C 32116 32117 35301 35301A 35301B 35301F 35307F 35321 35322 35370 35616B 35617 35617
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-32030

VZV21..4FC

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-32080

VZV21..4FC

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-09009

VZV21..4FC

*9-1.25PX12.8-8.8,YELLOW

 5
90119-09010

VZV21..4FC

*9-1.25PX12.8-9,OLIVE GREEN

 1
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10048

VZV21..4FC

*10-1.25PX18-13

 8
32116 - SPACER, DRIVE PLATE, FRONT
32116-32020

VZV21..4FC

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-32020

VZV21..4FC

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35035-32010

VZV21..4FC

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38020

SV25,VZV21..4FC

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99024

SV2#,VZV21..4FC

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08050

SV2#,VZV21..4FC

*8-1.25PX28-28

 7
35307F - BOLT (FOR STATOR SHAFT)
90119-06180

SV25,VZV21..4FC

 11
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-32060

SV21,VZV21..4FC

T=9.474-9.490

 1
35321-32040

SV21,VZV21..4FC

T=9.440-9.456

 1
35321-32050

SV21,VZV21..4FC

T=9.456-9.474

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-32060

SV21,VZV21..4FC

T=9.474-9.490

 1
35322-32050

SV21,VZV21..4FC

T=9.456-9.474

 1
35322-32040

SV21,VZV21..4FC

T=9.440-9.456

 1
35370 - SHAFT ASSY, STATOR
35370-32040

VZV21..4FC

 1
35616B - WASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)
35616-32010

SV2#,VZV21..4FC

 1
35616-32010

SV2#,VZV21..4FC..(DX,LE)

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-32011

SV2#,VZV21..4FC

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-32011

SV2#,VZV21..4FC

 2
