VZV21L-UEPDKA (1988)
Toyota Camry (Jpp)
Production
Aug 1988
-
Jun 1991
Engine
2VZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )2VZFE

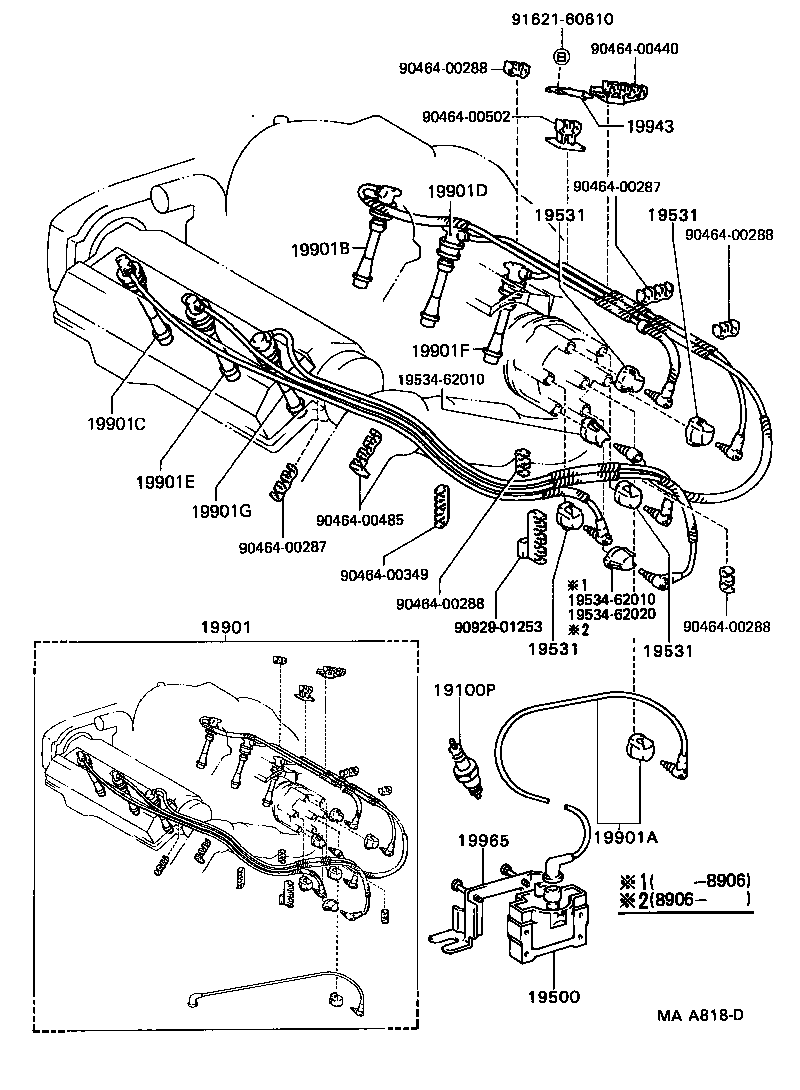

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01127 |
2VZFE..VZV21 PQ20R |
6 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02185 |
2VZFE..VZV21 |
1 | ||
| 19531 - HOLDER, RESISTIVE CORD, NO.1 | ||||
| 19531-62020 |
2VZFE..VZV21 |
4 | ||
| 19531-62010 |
2VZFE..VZV21 |
4 | ||
| 19531 - HOLDER, RESISTIVE CORD, NO.1 | ||||
| 19531-62020 |
2VZFE..VZV21 |
4 | ||
| 19531-62010 |
2VZFE..VZV21 |
4 | ||
| 19531 - HOLDER, RESISTIVE CORD, NO.1 | ||||
| 19531-62020 |
2VZFE..VZV21 |
4 | ||
| 19531-62010 |
2VZFE..VZV21 |
4 | ||
| 19531 - HOLDER, RESISTIVE CORD, NO.1 | ||||
| 19531-62020 |
2VZFE..VZV21 |
4 | ||
| 19531-62010 |
2VZFE..VZV21 |
4 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90919-21414 |
2VZFE..VZV21 |
1 | ||
| 19901A - CORD, COIL RESISTIVE | ||||
| 19590-62040 |
2VZFE..VZV21 |
1 | ||
| 19590-62010 |
2VZFE..VZV21 |
1 | ||
| 19590-62020 |
2VZFE..VZV21 |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-12811 |
2VZFE..VZV21 |
1 | ||
| 90919-15251 |
2VZFE..VZV21 |
1 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-12812 |
2VZFE..VZV21 |
1 | ||
| 90919-15252 |
2VZFE..VZV21 |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-12813 |
2VZFE..VZV21 |
1 | ||
| 90919-15253 |
2VZFE..VZV21 |
1 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-12814 |
2VZFE..VZV21 |
1 | ||
| 90919-15254 |
2VZFE..VZV21 |
1 | ||
| 19901F - CORD, SPARK PLUG RESISTIVE, NO.5 | ||||
| 90919-12815 |
2VZFE..VZV21 |
1 | ||
| 90919-15255 |
2VZFE..VZV21 |
1 | ||
| 19901G - CORD, SPARK PLUG RESISTIVE, NO.6 | ||||
| 90919-12816 |
2VZFE..VZV21 |
1 | ||
| 90919-15256 |
2VZFE..VZV21 |
1 | ||
| 19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1 | ||||
| 19943-62010 |
2VZFE..VZV21 |
1 | ||
| 19965 - BAND, IGNITION COIL, NO.1 | ||||
| 90919-03110 |
2VZFE..VZV21 |
1 | ||
| Common parts | ||||
| 19534-62010 | ||||
| 19534-62020 | ||||
| 90464-00287 | ||||
| 90464-00288 | ||||
| 90464-00349 | ||||
| 90464-00440 | ||||
| 90464-00485 | ||||
| 90464-00502 | ||||
| 90929-01253 | ||||
| 91621-60610 | ||||
