VZV21L-UEMNKK (1988)

Toyota Camry (Jpp)

Production Aug 1988 - Jun 1991
Engine 2VZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )LE

Click highlighted areas on diagram

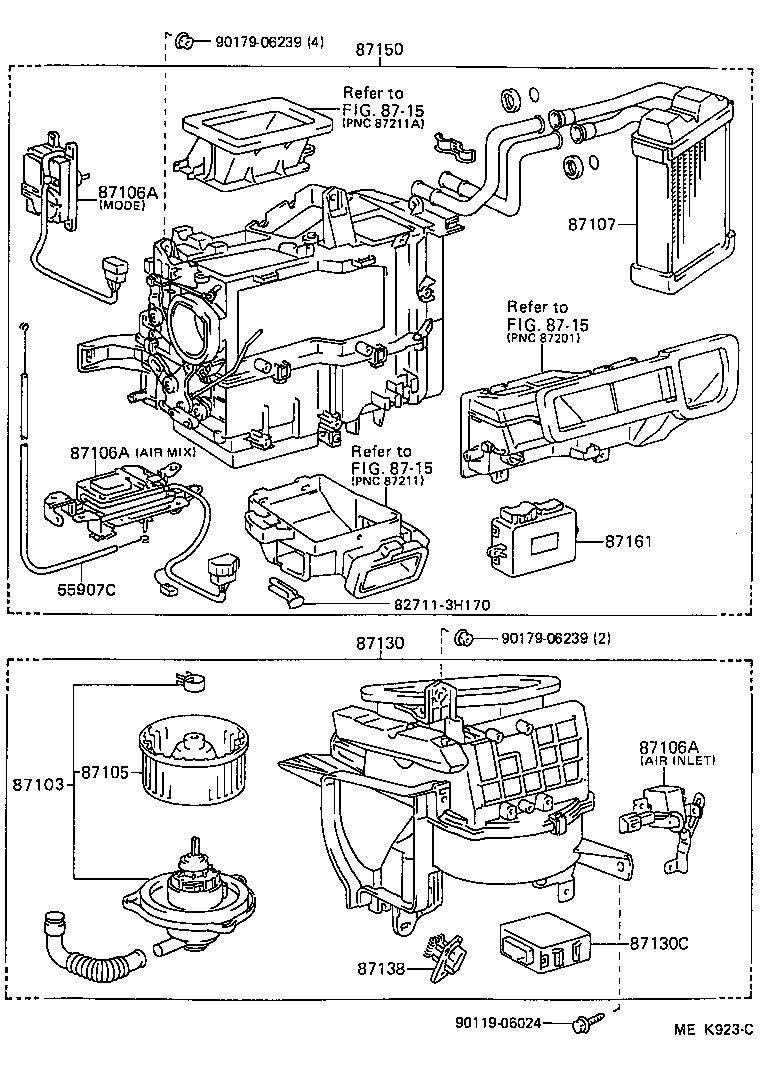

diagram 55907C 827113H170 87103 87105 87106A 87106A 87106A 87107 87130 87130C 87138 8715 8715 8715 87150 87161 9011906024 9017906239 9017906239
Part # Description Qty Price
55907C - CABLE SUB-ASSY, WATER VALVE CONTROL
87286-32040

SV2#,VZV21..LE

 1
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-32030

SV2#,VZV21

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-32020

SV2#,VZV21

 1
87106A - SERVO SUB-ASSY, DAMPER
87106-32020

SV2#,VZV21..LE

MODE CONTROL

 1
87106-32040

SV2#,VZV21..LE

AIR MIX CONTROL

 1
87106-32050

SV2#,VZV21..LE

AIR INLET CONTROL

 1
87106A - SERVO SUB-ASSY, DAMPER
87106-32020

SV2#,VZV21..LE

MODE CONTROL

 1
87106-32040

SV2#,VZV21..LE

AIR MIX CONTROL

 1
87106-32050

SV2#,VZV21..LE

AIR INLET CONTROL

 1
87106A - SERVO SUB-ASSY, DAMPER
87106-32020

SV2#,VZV21..LE

MODE CONTROL

 1
87106-32040

SV2#,VZV21..LE

AIR MIX CONTROL

 1
87106-32050

SV2#,VZV21..LE

AIR INLET CONTROL

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-32071

SV2#,VZV21

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-32110

SV2#,VZV21..LE

 1
87130C - RELAY, HEATER BLOWER MOTOR
88630-20020

SV2#,VZV21..LE

 1
87138 - RESISTOR, HEATER BLOWER
87138-32030

SV2#,VZV21..LE

 1
87150 - RADIATOR ASSY, HEATER
87150-32132

SV2#,VZV21..LE

 1
87150-32131

SV2#,VZV21..LE

 1
87161 - AMPLIFIER, HEATER SERVO MOTOR
87161-32020

SV2#,VZV21..LE

 1
Common parts
82711-3H170
90119-06024
90179-06239
