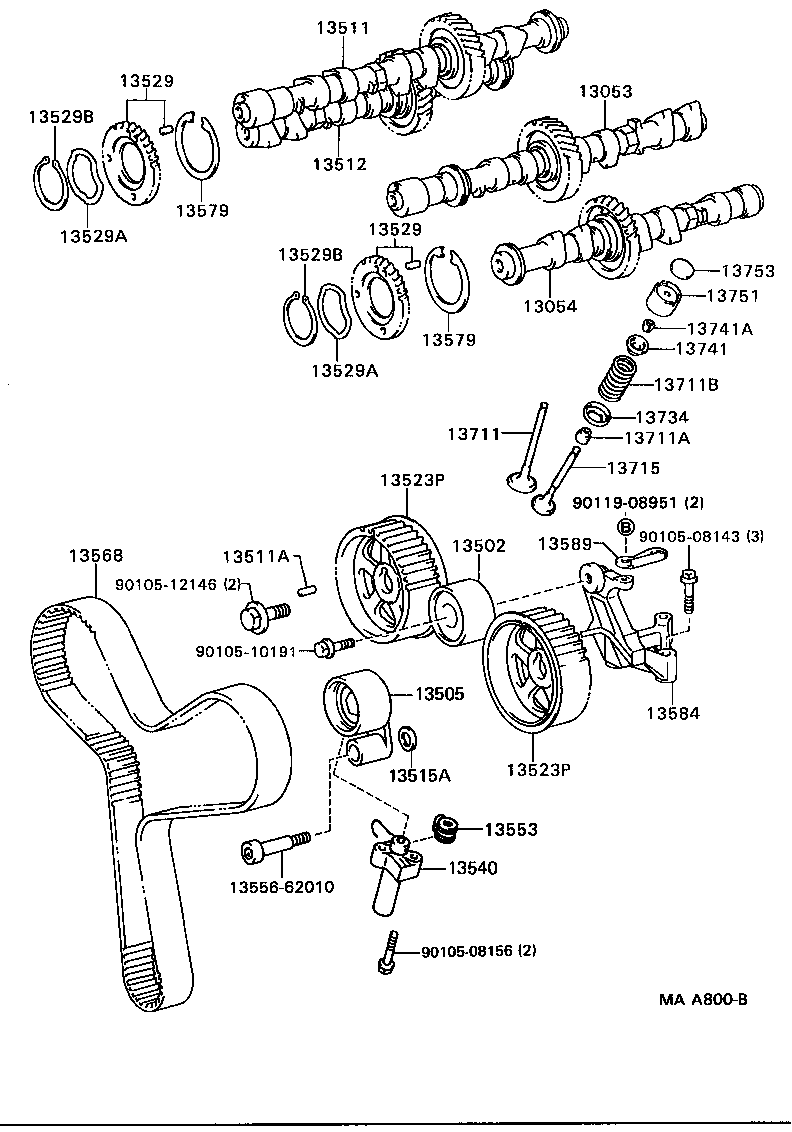

VZV21L-UEMNKK (1988)
Toyota Camry (Jpp)
(8808- )2VZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13053 - CAMSHAFT SUB-ASSY, NO.3 | ||||
| 13053-62010 |
2VZFE..VZV21 |
1 | ||
| 13054 - CAMSHAFT SUB-ASSY, NO.4 | ||||
| 13054-62020 |
2VZFE..VZV21 |
1 | ||
| 13502 - IDLER SUB-ASSY, TIMING BELT, NO.2 | ||||
| 13503-62010 |
2VZFE..VZV21 |
1 | ||
| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-62031 |
2VZFE..VZV21 |
1 | ||
| 13505-62060 |
2VZFE..VZV21 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-62010 |
2VZFE..VZV21 |
1 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-05121 |
2VZFE..VZV21 L=15,OD=5 |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-62020 |
2VZFE..VZV21 |
1 | ||
| 13515A - WASHER, PLATE(FOR DISTRIBUTOR DRIVE GEAR) | ||||
| 90201-10098 |
2VZFE..VZV21 |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13051-62010 |
2VZFE..VZV21 |
2 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13051-62010 |
2VZFE..VZV21 |
2 | ||
| 13529 - GEAR, CAMSHAFT SUB | ||||
| 13529-62900 |
2VZFE..VZV21 |
2 | ||
| 13529 - GEAR, CAMSHAFT SUB | ||||
| 13529-62900 |
2VZFE..VZV21 |
2 | ||
| 13529A - WASHER, WAVE(FOR CAMSHAFT SUB GEAR) | ||||
| 90206-42001 |
2VZFE..VZV21 |
2 | ||
| 13529A - WASHER, WAVE(FOR CAMSHAFT SUB GEAR) | ||||
| 90206-42001 |
2VZFE..VZV21 |
2 | ||
| 13529B - RING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR) | ||||
| 90520-41004 |
2VZFE..VZV21 |
2 | ||
| 13529B - RING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR) | ||||
| 90520-41004 |
2VZFE..VZV21 |
2 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-62011 |
2VZFE..VZV21 |
1 | ||
| 13553 - COVER, CHAIN TENSIONER DUST | ||||
| 13553-62010 |
2VZFE..VZV21 |
1 | ||
| 13568 - BELT, TIMING | ||||
| 13568-62020 |
2VZFE..VZV21 |
1 | ||
| 13579 - WASHER, CAMSHAFT TIMING GEAR BOLT | ||||
| 13579-62010 |
2VZFE..VZV21 |
2 | ||
| 13579 - WASHER, CAMSHAFT TIMING GEAR BOLT | ||||
| 13579-62010 |
2VZFE..VZV21 |
2 | ||
| 13584 - BRACKET, TIMING BELT IDLER | ||||
| 13584-62020 |
2VZFE..VZV21 |
1 | ||
| 13589 - STAY, IDLER BRACKET | ||||
| 13589-62010 |
2VZFE..VZV21 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-62020 |
2VZFE..VZV21 |
12 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02066 |
2VZFE..VZV21 BLACK |
24 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90504-30003 |
2VZFE..VZV21 |
24 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-62020 |
2VZFE..VZV21 |
12 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62010 |
2VZFE..VZV21 |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-16010 |
2VZFE..VZV21 |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
2VZFE..VZV21 |
48 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-16010 |
2VZFE..VZV21 |
24 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-16020 |
2VZFE..VZV21 T=2.50 |
1 | ||
| 13753-16060 |
2VZFE..VZV21 T=2.60 |
1 | ||
| 13753-16100 |
2VZFE..VZV21 T=2.70 |
1 | ||
| 13753-16120 |
2VZFE..VZV21 T=2.75 |
1 | ||
| 13753-16080 |
2VZFE..VZV21 T=2.65 |
1 | ||
| 13753-16160 |
2VZFE..VZV21 T=2.85 |
1 | ||
| 13753-16140 |
2VZFE..VZV21 T=2.80 |
1 | ||
| 13753-16200 |
2VZFE..VZV21 T=2.95 |
1 | ||
| 13753-16040 |
2VZFE..VZV21 T=2.55 |
1 | ||
| 13753-16220 |
2VZFE..VZV21 T=3.00 |
1 | ||
| 13753-16180 |
2VZFE..VZV21 T=2.90 |
1 | ||
| 13753-16240 |
2VZFE..VZV21 T=3.05 |
1 | ||
| 13753-16340 |
2VZFE..VZV21 T=3.30 |
1 | ||
| 13753-16260 |
2VZFE..VZV21 T=3.10 |
1 | ||
| 13753-16320 |
2VZFE..VZV21 T=3.25 |
1 | ||
| 13753-16280 |
2VZFE..VZV21 T=3.15 |
1 | ||
| 13753-16300 |
2VZFE..VZV21 T=3.20 |
1 | ||
| Common parts | ||||
| 13556-62010 | ||||
| 90105-08143 | ||||
| 90105-08156 | ||||
| 90105-10191 | ||||
| 90105-12146 | ||||
| 90119-08951 | ||||
